WESEN TECHNOLOGIES

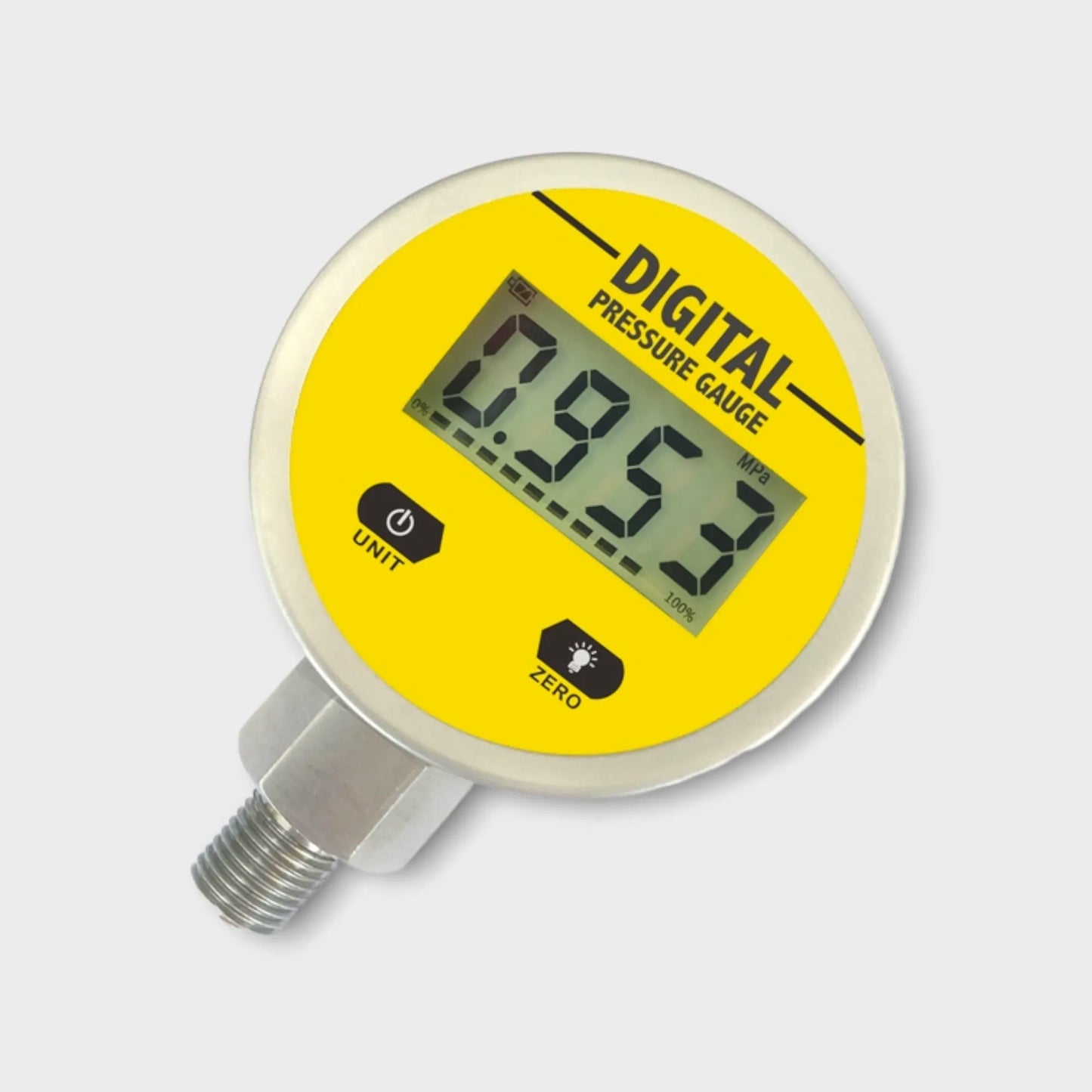

D260 Series Intelligent Digital Pressure Gauge

D260 Series Intelligent Digital Pressure Gauge

The D260 Series Intelligent Digital Pressure Gauge is designed to help you accurately measure pressure levels with its integrated sensors. Its intuitive interface provides reliable readings quickly and accurately. The device is IP67 rated for resistance to dust and water, making it the ideal choice for use in extreme conditions.

Dial Size 60mm
Case Material 304SS
Connection Material 304SS
Accuracy 1%FS
Mount Lower
Connection 1/4 G, PT, NPT, M14*1.5

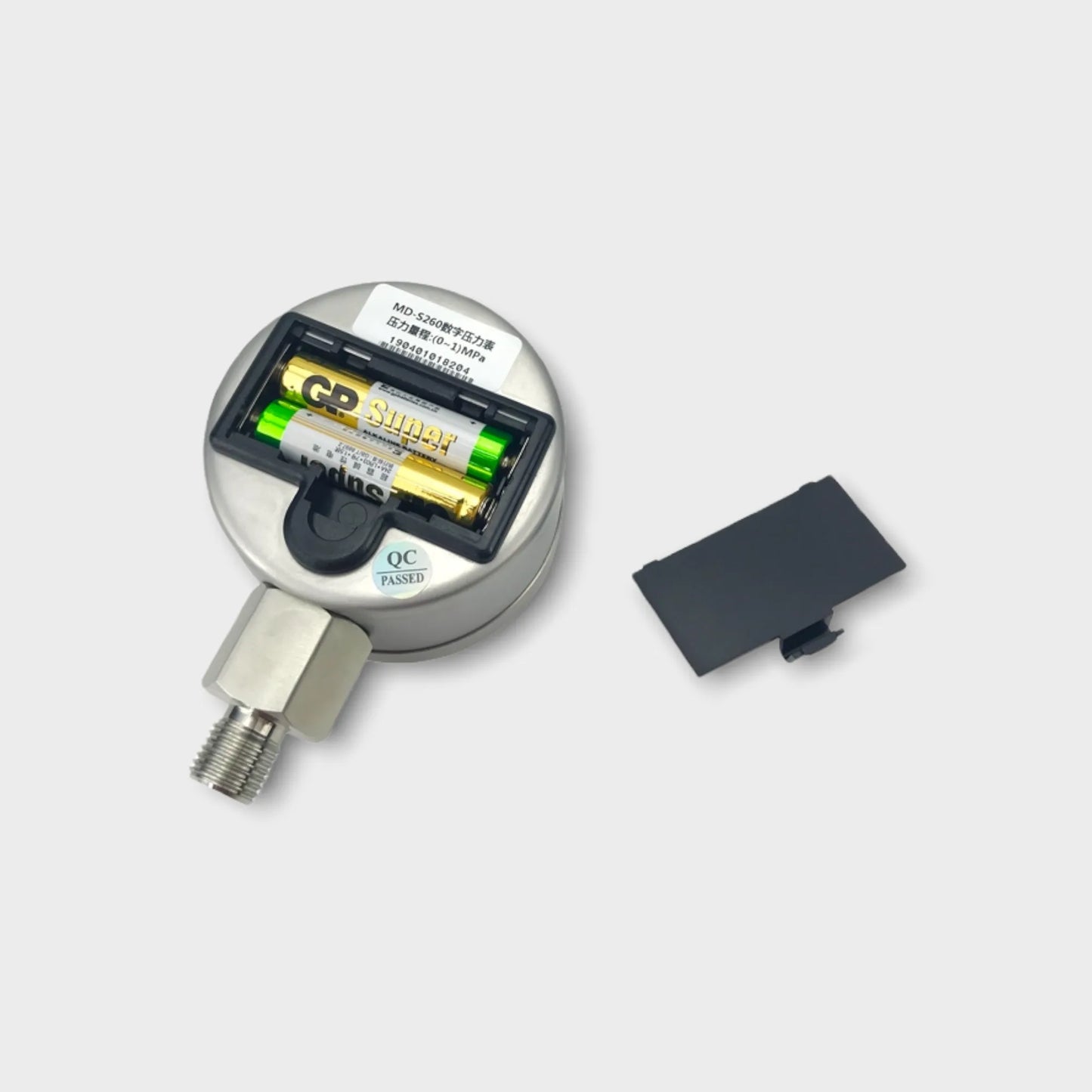

Power Supply 2 AAA batteries
Measurement Medium Gas, water, oil, other liquids...

View full details

Description

This gauge is a high-precision and intelligent digital pressure gauge. It has a high-precision sensor and display the pressure accurately in real time, equipped with a large size LCD. It has a various of features, such as zero clearing, backlight, on/off button, units, low voltage alarm. And it is convenient to install and easy to operate.

The surface and connector of the product is 304SS. It can be used to measure gas, liquid, oil and other non-corrosive mediums of stainless steel. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.

pressure vessels with vacuum pressure gauges on them

Applications

Machinery and electronic industry

Supporting equipment of instruments and meters

Pressure Laboratory

Mechanical engineering automation

  • Technical Characteristics

    4 digit LCD showing the pressure accurately in real time

    Different pressure units to change, zero clearing, backlight, on/off

    Battery powered, low-power design keeping working for 18 months

    All stainless steel shell, small size

    Pressure percentage display

  • Payment & Shipping Terms

    MOQ: 30 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T

  • Pressure Range

    Micropressure:(0.1..0.16...0.25)MPa

    High Pressure:(6...10..25)MPa

    Medium Voltage :(0.4.0.6...4)MPa

    Differential Pressure:(0~10…25…40...60…100...250...400...600)kPa (0~1...1.6)MPa

  • Specification

    Function: On/off, zero clearing, units changing, backlight
    Overload Capacity: 150%
    Backlight: White
    Long-term Stability: Typical ±0.5%FS/year
    Operating Temperature: -5~40℃
    Electric Protection: EN 61326
    Sampling Frequency: 2 times/sec
    IP Rating: IP50 (IP54 with protection sleeve)

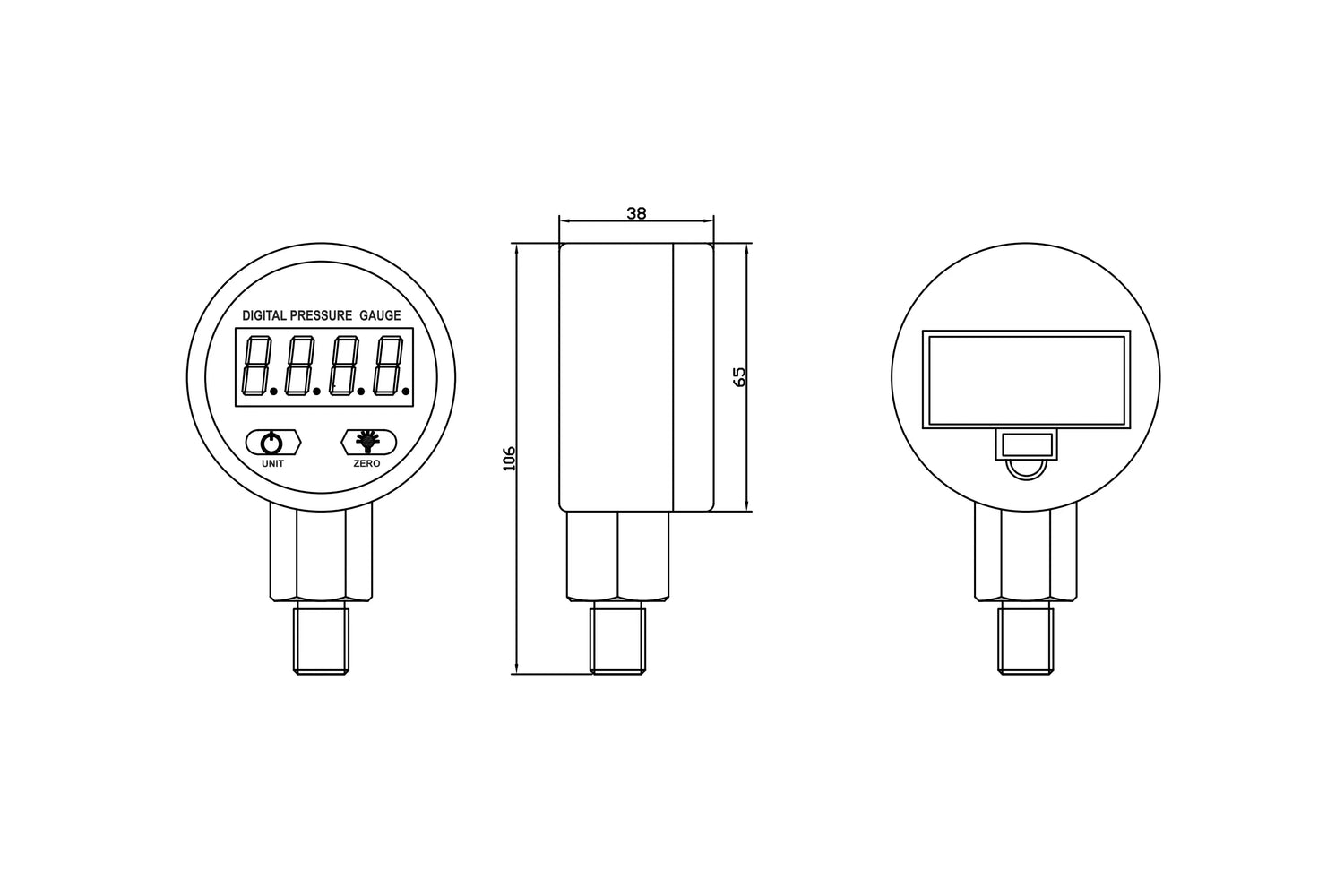

dimension figure of WESEN Technologies d260 series digital pressure gauge

Dimension

(mm)
