D280C Series High-precision & Intelligent Digital Pressure Gauge
D280C Series High-precision & Intelligent Digital Pressure Gauge
This advanced digital pressure gauge offers accurate readings with high precision and is ideal for a variety of industrial applications. Featuring an intelligent internal calibration and a wide measuring range of 0-10MPa, the D280C series is designed with reliability and ease of use in mind.
| Dial Size | 80mm |
| Case Material | 304SS |
| Connection Material | 304SS |
| Accuracy | 0.4%FS, 0.2%FS |
| Mount | Lower |
| Connection | 1/8 1/4 G, PT, NPT, M14*1.5 |

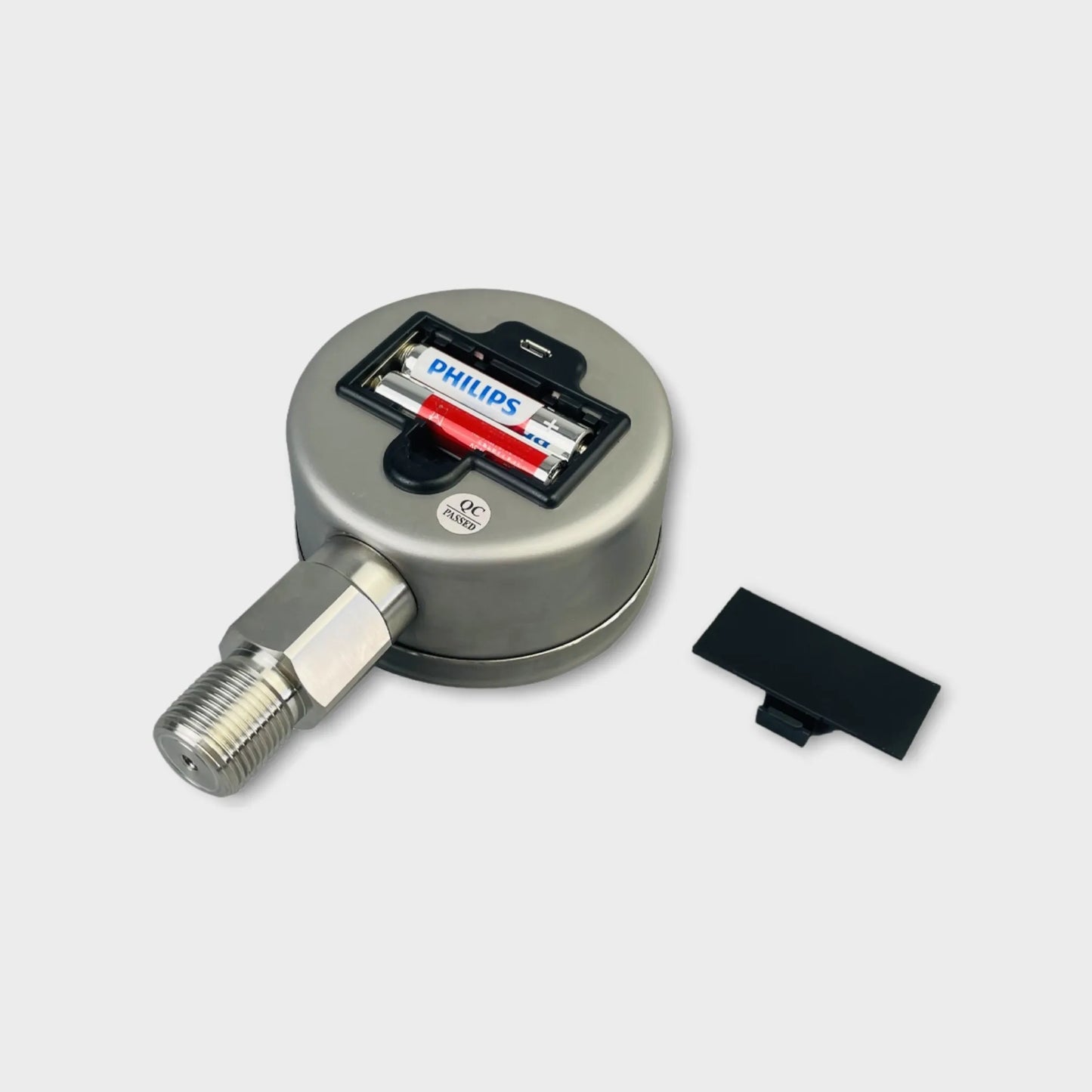

| Power Supply | 2 AA batteries |
| Measurement Medium | Gas, water, oil, other liquids... |
Description

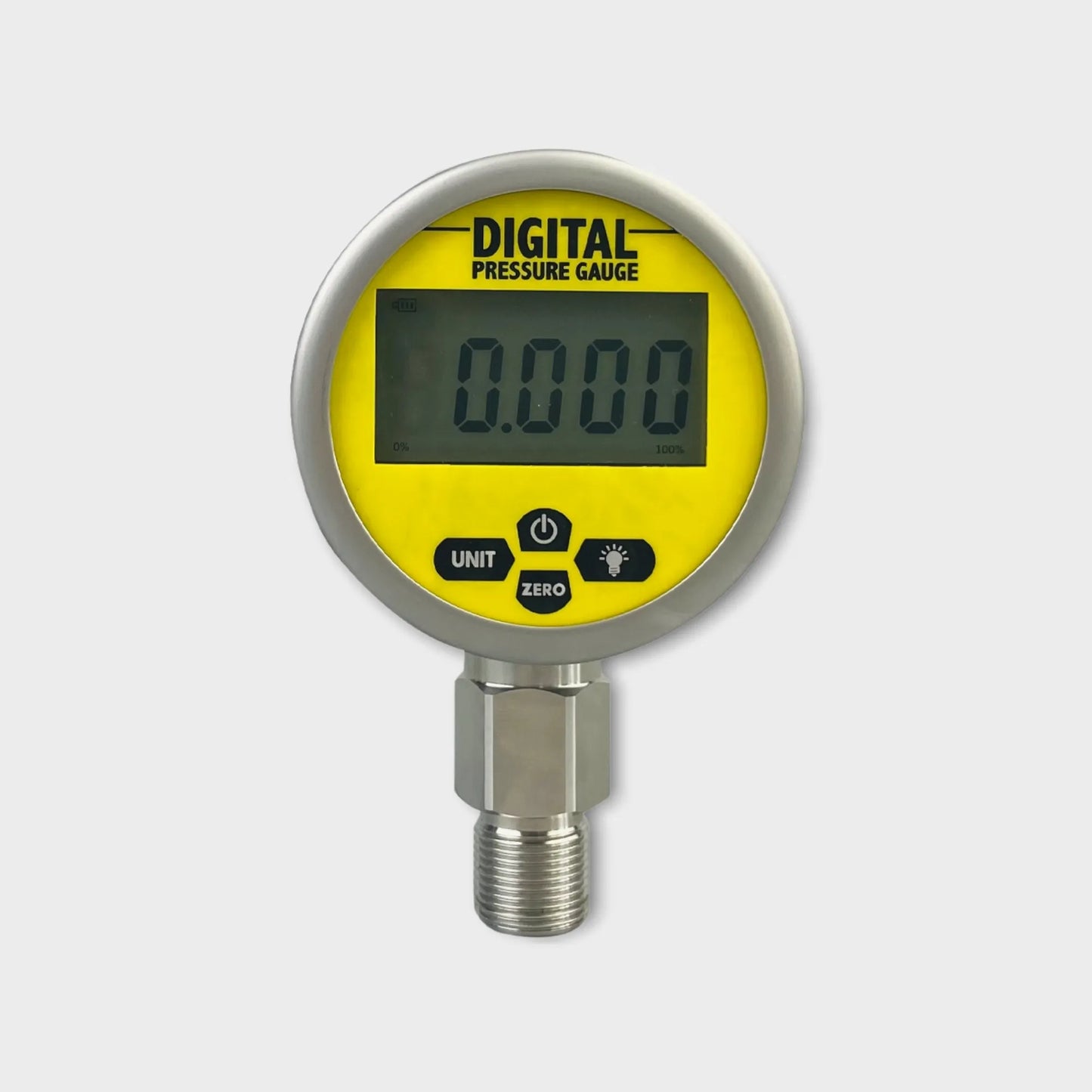

This gauge is a high-precision and intelligent digital pressure gauge with data record. It has a high- precision sensor and displays the pressure accurately in real time, equiped with a large size LCD.It has a various of features, such as zero clearing, backlight, on/off button, record time setting, On/off record units, low voltage alarm. And it is convenient to install and easy to operate.
This product adopts Ss304 materials of case and connector. It can be used to measure gas, liquid, oil and other non-corrosive mediums. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.
Applications
Machinery and electronic industry
Instruments
Pressure laboratory
Mechanical engineering automation
Replacement of pointer pressure gauge
-
Technical Characteristics
80mm diameter,304 stainless steel case
Timing acquisition, USB output, support data export

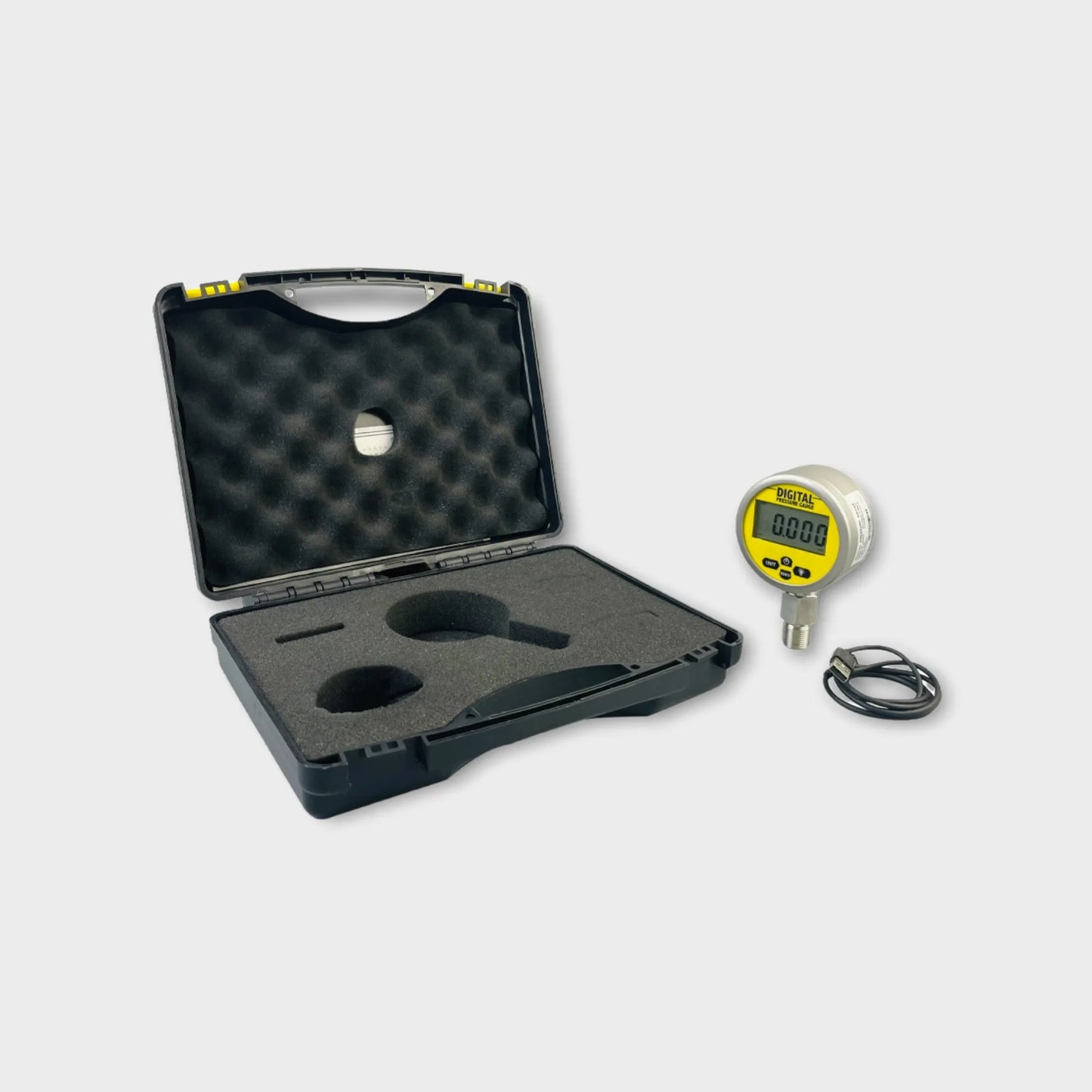

With data software, special data communication line
It can store up to 10,000 pcs data,It displays range when switch on
With pressure display bar, indicating the current pressure percentage, one-button zero-clearing function -
Payment & Shipping Terms
MOQ: 30 Pieces
Price: To be confirmed
Delivery Time: 3~5 weeks
Payment Term: T/T
-
Pressure Range
Micropressure: (6...10..25)kPa
Medium Voltage: (0.4..0.6...25...60)MPa
Ultra High Pressure: (100...160)MPa
Compound Range: (-5~5...10...-100~1000)kPa
Absolute Pressure:(0~100…250…1000)kPa
Differential Pressure:(0~10…25…40...60…100…250…400…600)kPa (0~1...1.6)MPa -
Specification
Function: On/off, zero clearing, units changing, backlight, calibration
Overload Capacity: 150%
Backlight: White
Long-term Stability: Typical ±0.2%FS/year
Storage Temperature: -20~70℃
Operating Temperature: -5~40℃
Relative Humidity: < 85%
Electromagnetic Compatibility: Anti-emi design, conform to EN61326 standard
Data Memory: Permanent EEPROM
Sampling Frequency: 5 times/sec
IP Rating: IP50 (IP54 with protection sleeve)

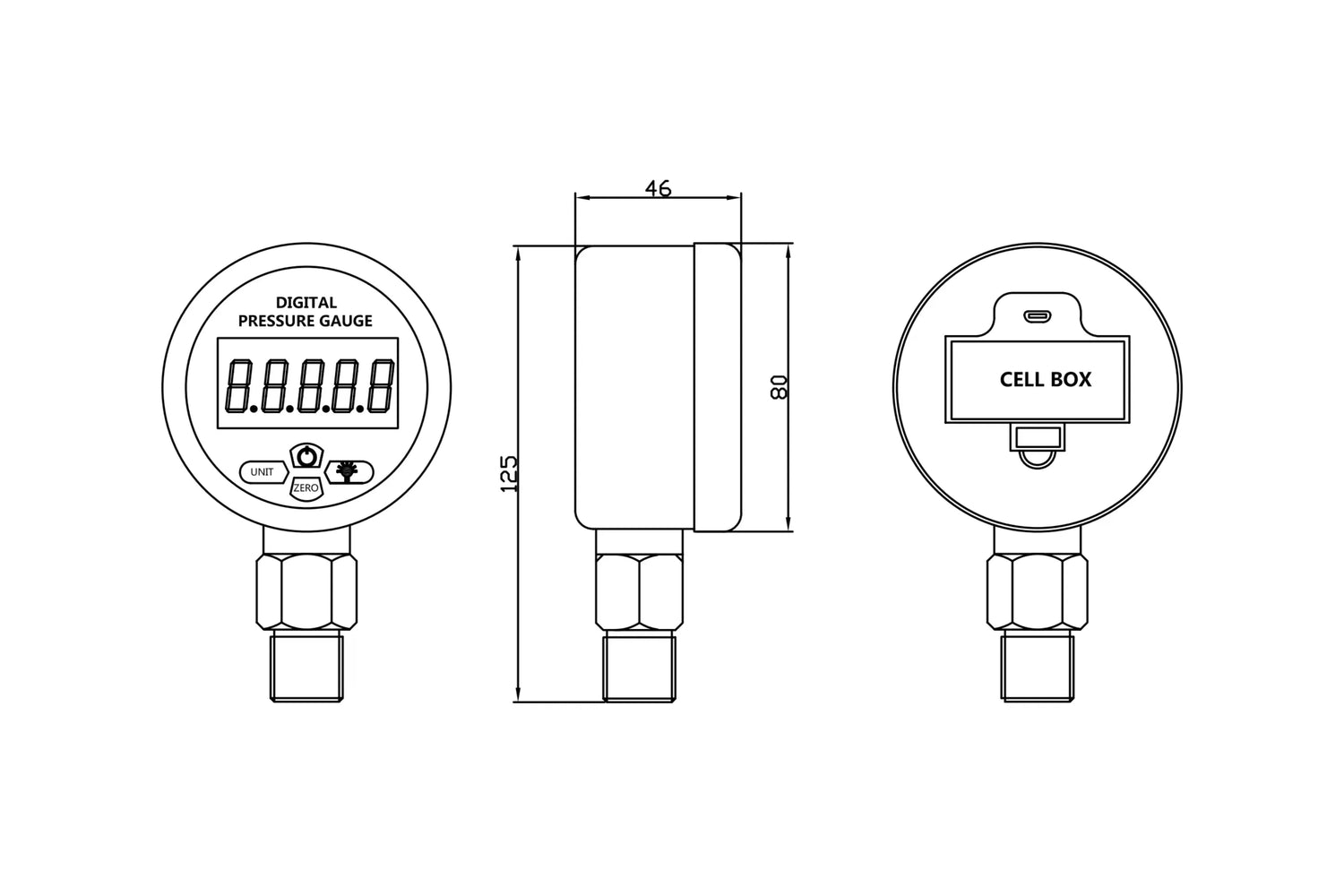

Dimension
(mm)
