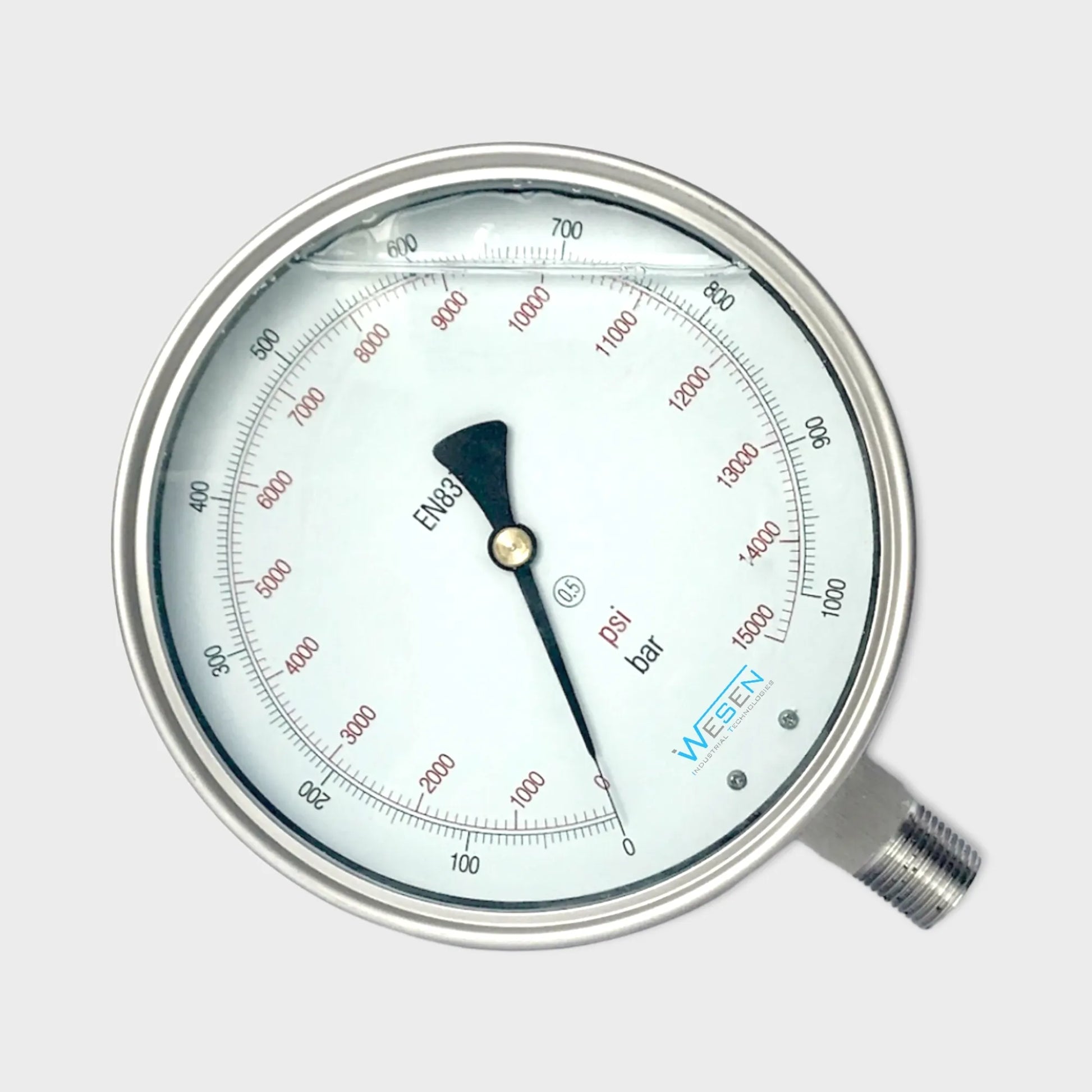

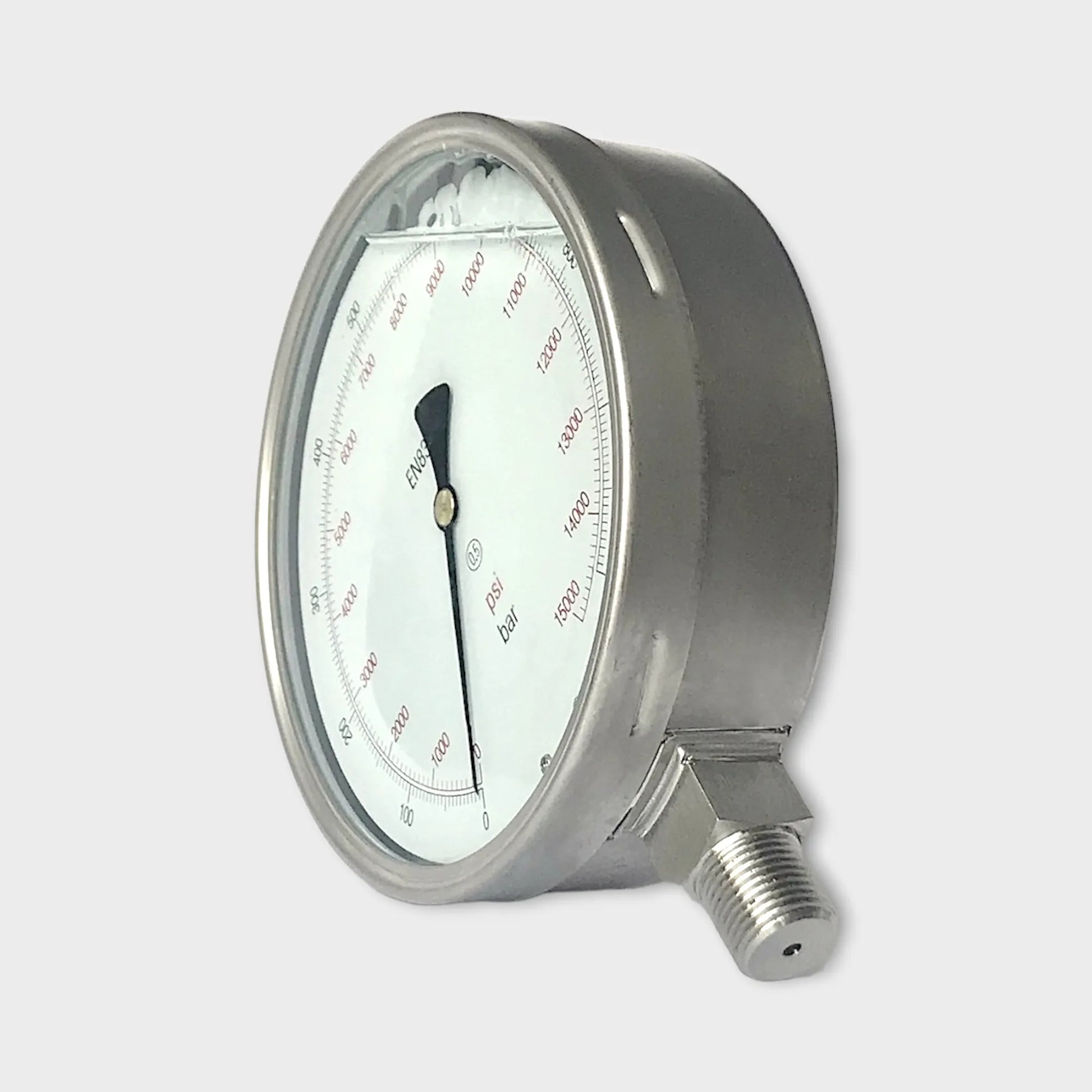

1000 Bar Lower Mount Pressure Gauge filled with Glycerin

1000 Bar Lower Mount Pressure Gauge filled with Glycerin

This 1000 Bar Lower Mount Pressure Gauge filled with Glycerin is a reliable and accurate solution for monitoring and measuring pressure. Because it is equipped with a high-quality glycerin fill for superior durability and a longer-lasting lifespan. And with a maximum pressure rating of 1000 bar, this product provides precise readings and overall reliability.

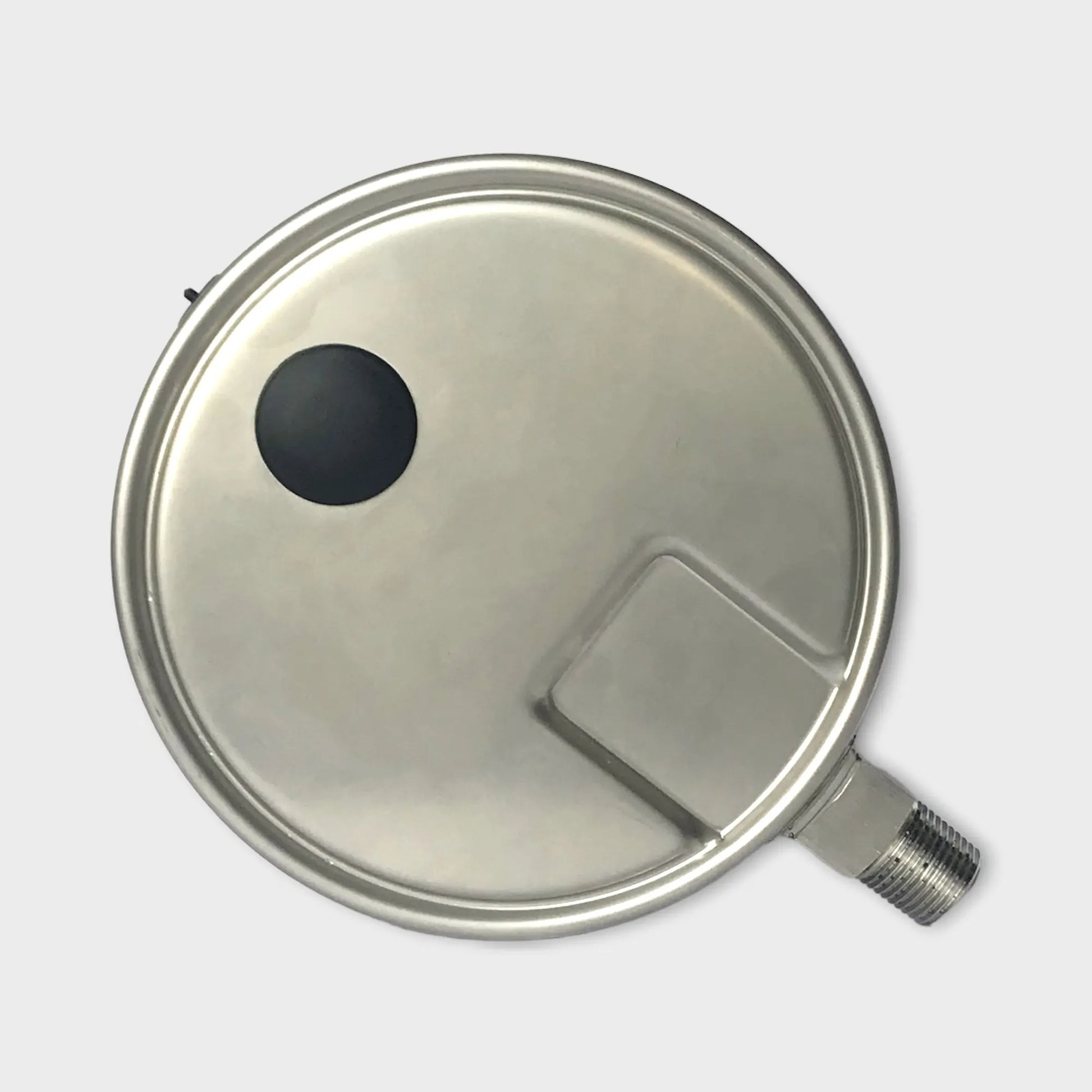

This precision pressure gauge filled with glycerin has a measuring range of 1000bar, so an explosion hole is designed on the back to ensure the protection of the operator during use. WESEN Technologies a pressure gauge manufacturer in China, and we are specializing in the production of stainless steel oil-filled pressure gauges.So, if you need pressure gauges, welcome to contact us.

Dial Size 160mm
Case material Stainless steel
Wetted parts Stainless steel
Mount Lower (Radial)
Connection 1/2 PT, NPT, G... M20*1.5
Liquid Glycerin, Silicone oil, None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

Introducing our latest innovation in precision measurement: the Glycerin-Filled Pressure Gauge. Designed to deliver unparalleled accuracy and durability, so this pressure gauge is a versatile instrument suitable for a wide range of industrial applications.

Above all, crafted with meticulous attention to detail, our pressure gauge is expertly filled with high-quality glycerin. And the glycerin can offer numerous benefits for optimal performance. The glycerin filling serves as a damping medium, and it significantly reduces the effects of vibration and pulsation on the gauge. So the lifespan and ensuring consistent readings are extended.

View full details
pressure vessels with vacuum pressure gauges on them


For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments

Precision measurement in laboratories

High-accuracy pressure measurement, testing of indus- trial type pressure gauges

Increased safety requirements for personal protection

With liquid-filled case for applications with high dynamic pressure loads or vibrations

  • Special features

    Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of EN 837-1

    Completely from stainless steel

    Knife edge pointer for optimal accuracy of reading

    Wear-resistant precision movement from stainless steel

    Scale ranges from 0 … 0.6 to 0 … 1,600 bar [0 ... 10 psi to 0 ... 20,000 psi]

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
