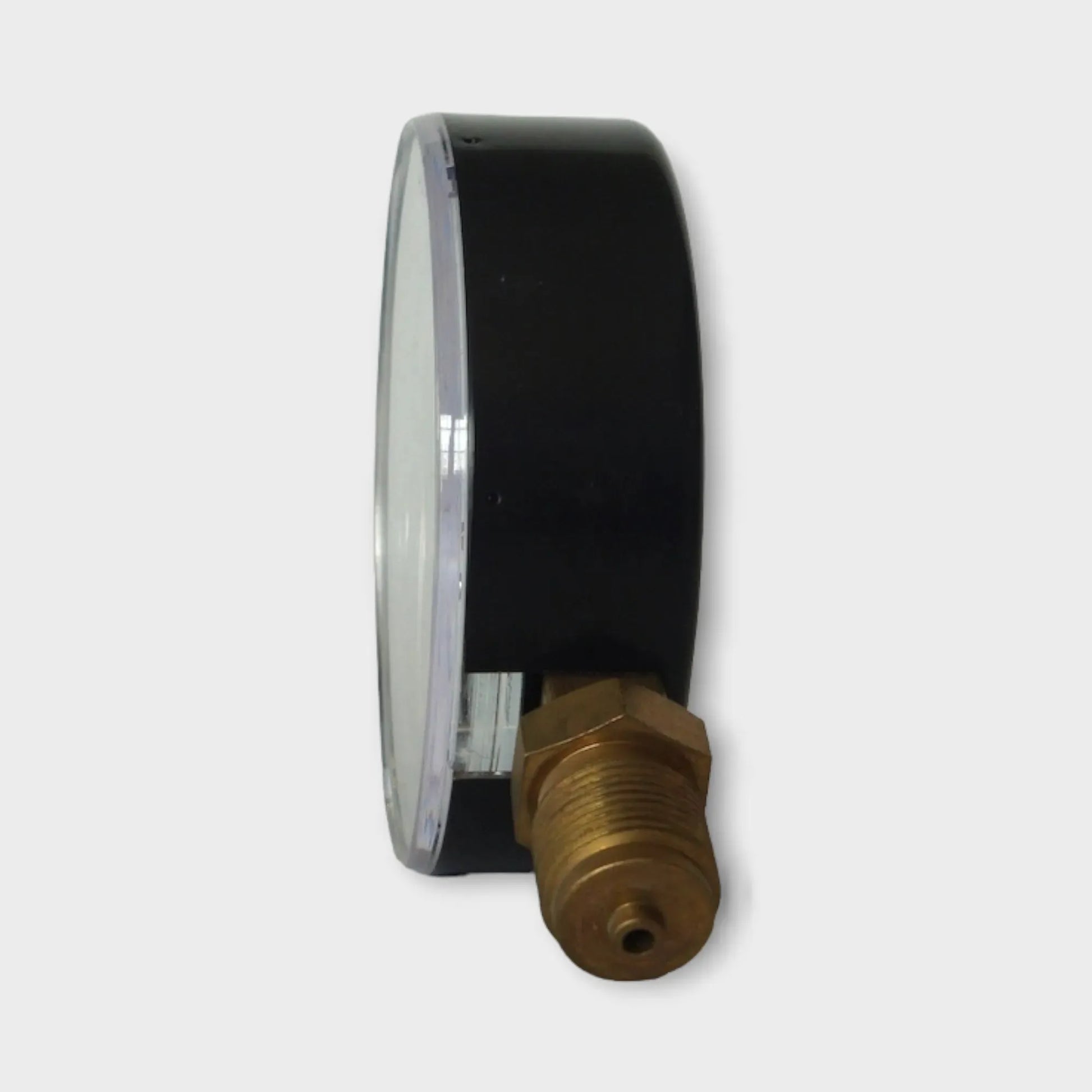

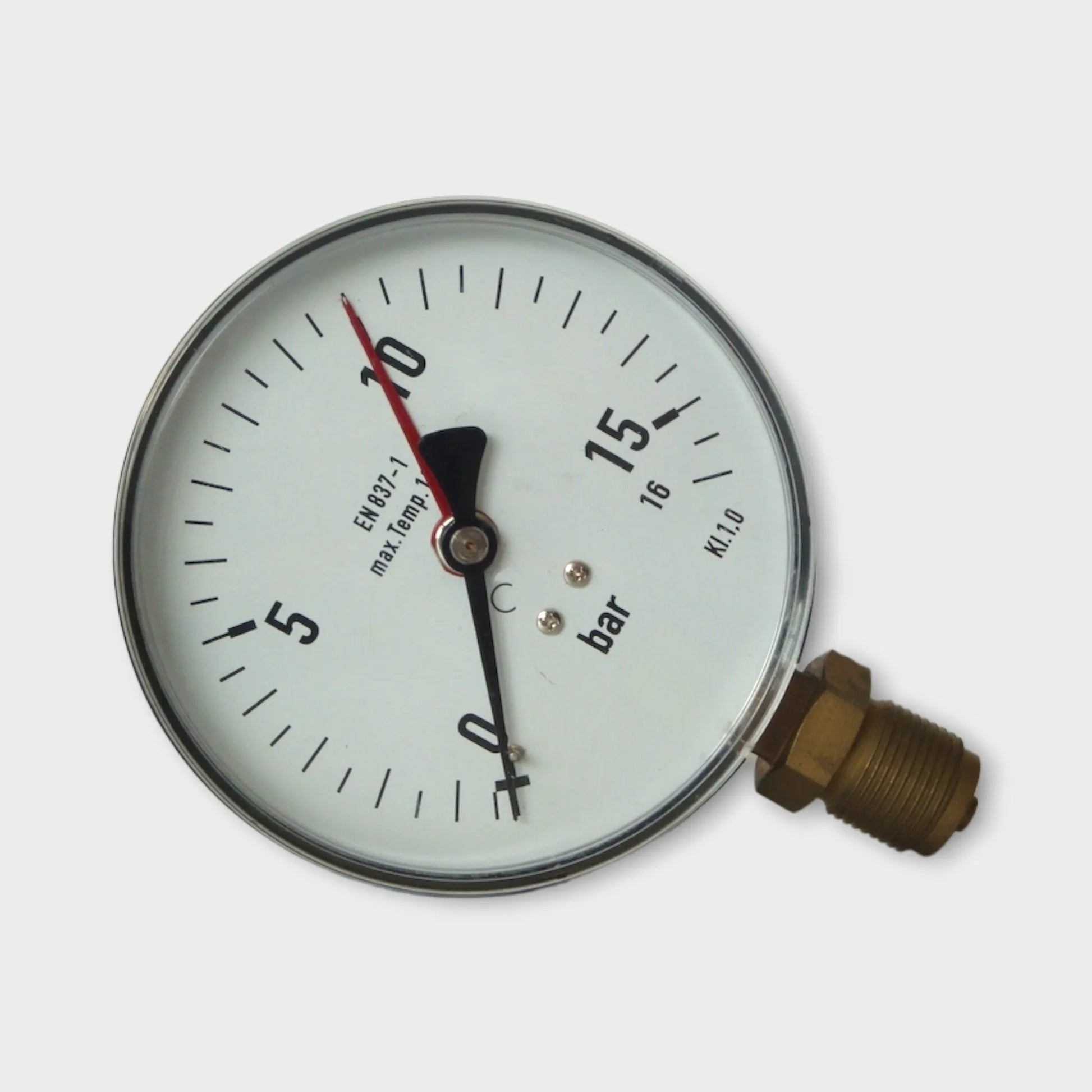

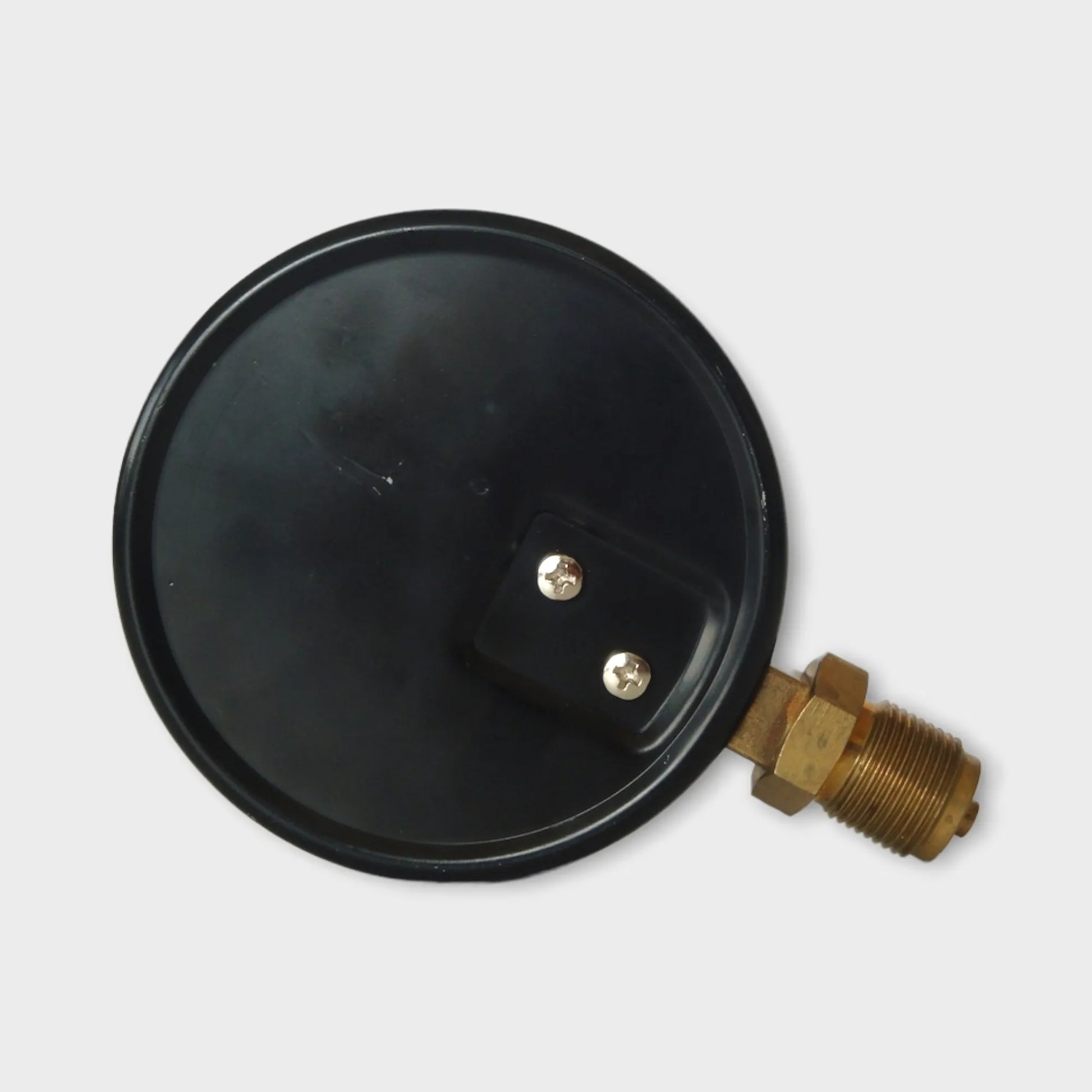

Burdon Tube Pressure Gauge 16 Bar with Red Needle

Burdon Tube Pressure Gauge 16 Bar with Red Needle

Nominal Size
Pressure Range

Introducing our innovative "Burdon Tube Pressure Gauge 16 Bar with Red Needle," a meticulously crafted instrument designed to provide accurate and real-time pressure measurements in a wide range of applications. With a pressure range of up to 16 bar and a distinct red needle indicator, this pressure gauge not only offers precision but also enhances readability and visual distinction.

Key Features:

- Advanced Burdon Tube Mechanism: Built around the reliable Burdon tube technology, this pressure gauge ensures accurate pressure measurements. The Burdon tube's responsive design translates pressure changes into precise needle movements, guaranteeing dependable data at all times.

- Maximum Pressure of 16 Bar: Engineered to handle pressures up to 16 bar, this gauge is suitable for various applications where pressures fall within this range. From industrial machinery to fluid systems, this gauge is designed to meet a broad spectrum of pressure monitoring needs.

- Red Needle Indicator: Setting itself apart with a vibrant red needle, this pressure gauge enhances visibility and readability. The red needle provides a clear visual indicator against the gauge's background, allowing for swift and accurate pressure assessments.

- Versatile Applications: With its robust construction and reliable performance, the "Burdon Tube Pressure Gauge 16 Bar with Red Needle" finds its place in numerous industries. From manufacturing plants and laboratories to automotive workshops and beyond, this gauge serves as an indispensable tool for precise pressure management.


This pressure gauge caters to a variety of applications, including hydraulic systems, HVAC installations, pneumatic equipment, and more. Whether you're ensuring the safety of hydraulic machinery, monitoring pressure in industrial processes, or maintaining optimal conditions in fluid systems, this gauge offers reliable pressure insights.

In summary, the "Burdon Tube Pressure Gauge 16 Bar with Red Needle" brings together accuracy, versatility, and enhanced visibility. With its Burdon tube mechanism, maximum pressure rating, and distinctive red needle, this pressure gauge stands as an essential instrument for industries seeking precise and visually distinguishable pressure measurements.

Dial Size 100mm
Case material Black painted steel
Wetted parts Copper alloy
Mount Radial
Connection 1/2 PT, NPT, G... M20*1.5
Custom options

Other pressure connections
Custom dial layout
Surface mounting flange
Mounting bracket
Other pressure scales available. bar, kPa, MPa, kg/cm² and dual scales

View full details
pressure vessels with vacuum pressure gauges on them


For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.


Heating and air-conditioning technology

Medical engineering

  • Special features

    Reliable and cost-effective

    Design per EN 837-1

    Nominal size 40, 50, 63, 80, 100 and 160

    Scale ranges up to 0 ... 400 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
