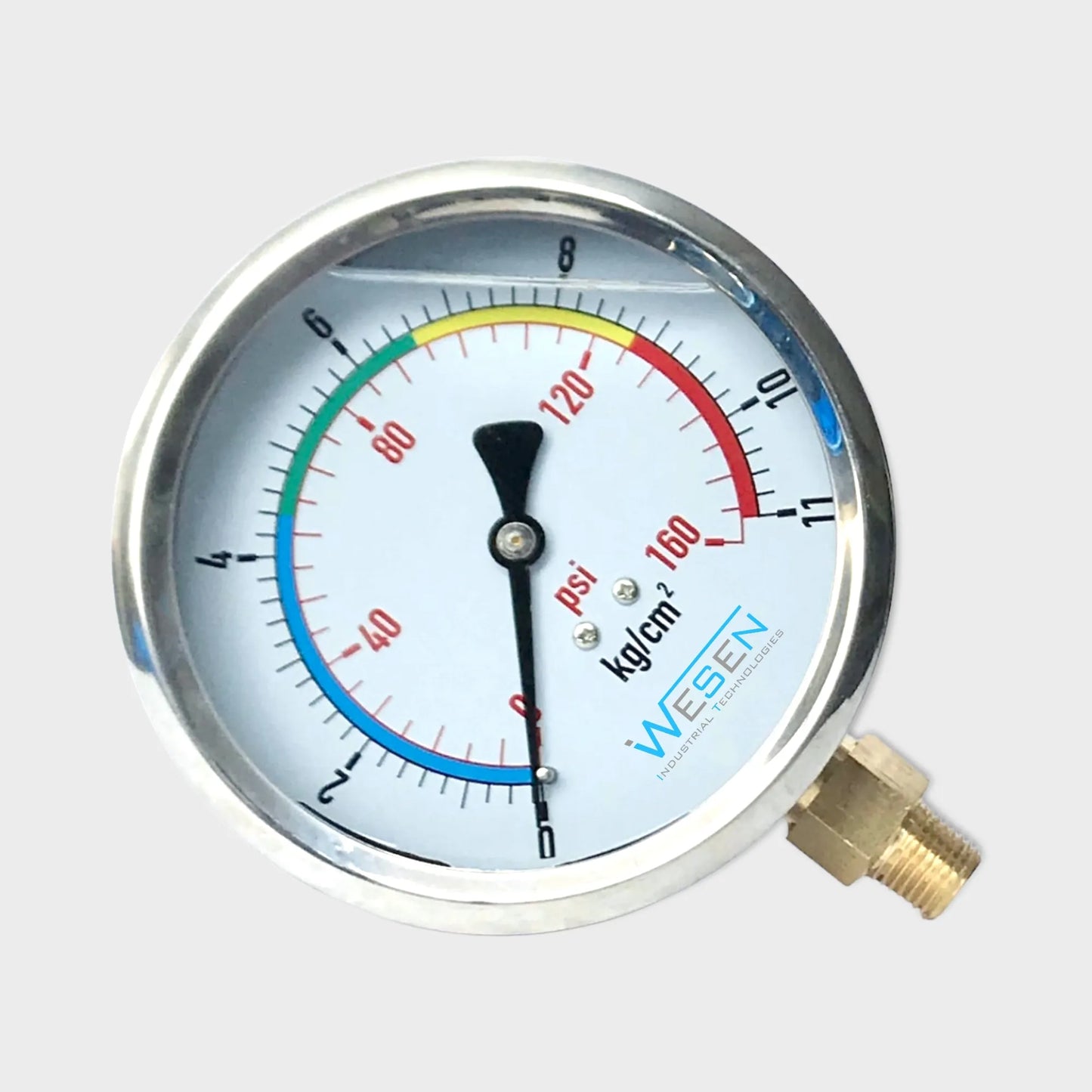

4 Inch Dial Air Pressure Gauge 0 To 11 kg/cm2 Mechanical Manometer

4 Inch Dial Air Pressure Gauge 0 To 11 kg/cm2 Mechanical Manometer

A 4-inch dial air pressure gauge with a range of 0 to 11 kg/cm² is a mechanical pressure measuring instrument designed to measure air pressure within the specified range. This type of gauge is commonly used to monitor and measure air pressure in various applications, including industrial processes, pneumatic systems, HVAC systems, and more.

Key Features:

1. Dial Size: The gauge has a 4-inch dial, which refers to the diameter of the circular display on the gauge.

2. Pressure Range: The pressure gauge has a range of 0 to 11 kg/cm², which means it can accurately measure pressures from 0 kg/cm² (no pressure) up to 11 kg/cm².

3. Scale and Units: The dial is marked with a scale calibrated in kg/cm², allowing easy reading of pressure values directly from the dial.

4. Pointer: The gauge is equipped with a pointer that indicates the pressure value on the dial, providing real-time pressure readings.

Applications:

A 4-inch dial air pressure gauge with a range of 0 to 11 kg/cm² is suitable for a variety of applications, including:

- Pneumatic Systems: Monitoring air pressure in compressed air systems used in manufacturing and industrial processes.

- Automotive: Measuring air pressure in tires and pneumatic components.

- HVAC Systems: Monitoring air pressure in heating, ventilation, and air conditioning systems.

- Process Control: Measuring air pressure in various processes to ensure proper operation.

Benefits:

- Clear Readability: The 4-inch dial size provides clear visibility of pressure readings, making it easy to monitor pressure levels.

- Wide Range: The pressure gauge covers a range of 0 to 11 kg/cm², making it versatile for different pressure levels.

- Real-Time Monitoring: The real-time pressure monitoring allows operators and technicians to make informed decisions regarding system operation and maintenance.

Considerations:

- Pressure Range: Ensure that the pressure range of the gauge matches the pressure levels of the system you intend to monitor.

- Units: Make sure you are comfortable with the units (kg/cm²) used in the gauge.

- Calibration: Regular calibration is important to maintain the accuracy of pressure readings.

- Environmental Conditions: Verify that the gauge's construction and materials are suitable for the environmental conditions of your application.

In summary, a 4-inch dial air pressure gauge with a range of 0 to 11 kg/cm² is a practical and versatile tool for accurately measuring air pressure in various industrial and pneumatic systems. Its clear dial and wide pressure range make it suitable for applications where reliable pressure monitoring is essential.

Dial Size 100mm
Case material Stainless steel
Wetted parts Brass
Mount Lower
Connection 1/2 PT, NPT, G... M20*1.5
Liquid Glycerin, Silicone oil, None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
pressure vessels with vacuum pressure gauges on them

Applications

Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries

Mechanical pressure display on pipelines, fermenters, bioreactors and vessels

Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing

For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media

  • Special features

    Safety via mechanical pressure transmission

    Case and wetted parts in hygienic design

    Suitable for SIP and CIP, autoclavable version available

    Easy zero point setting

    High overload safety

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
