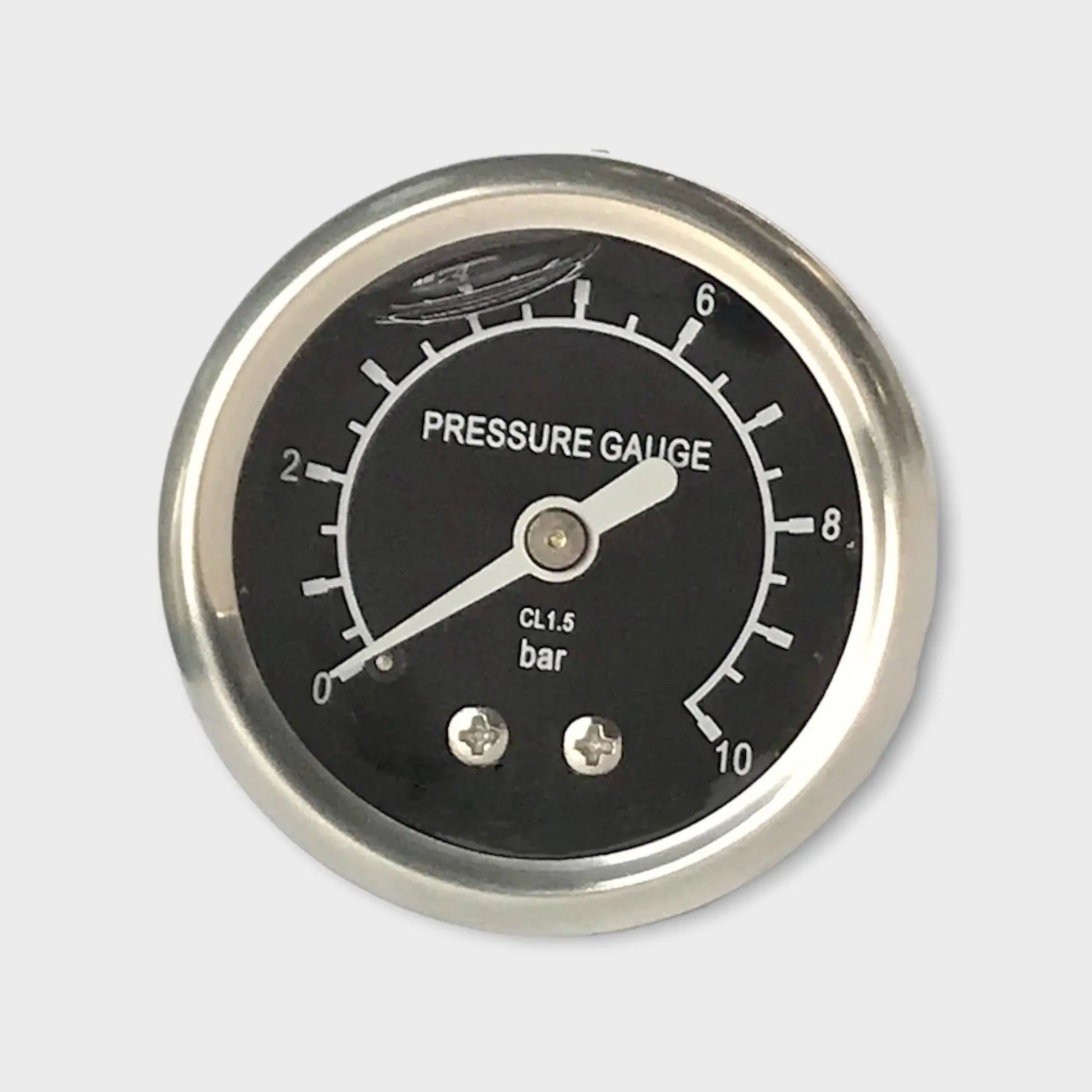

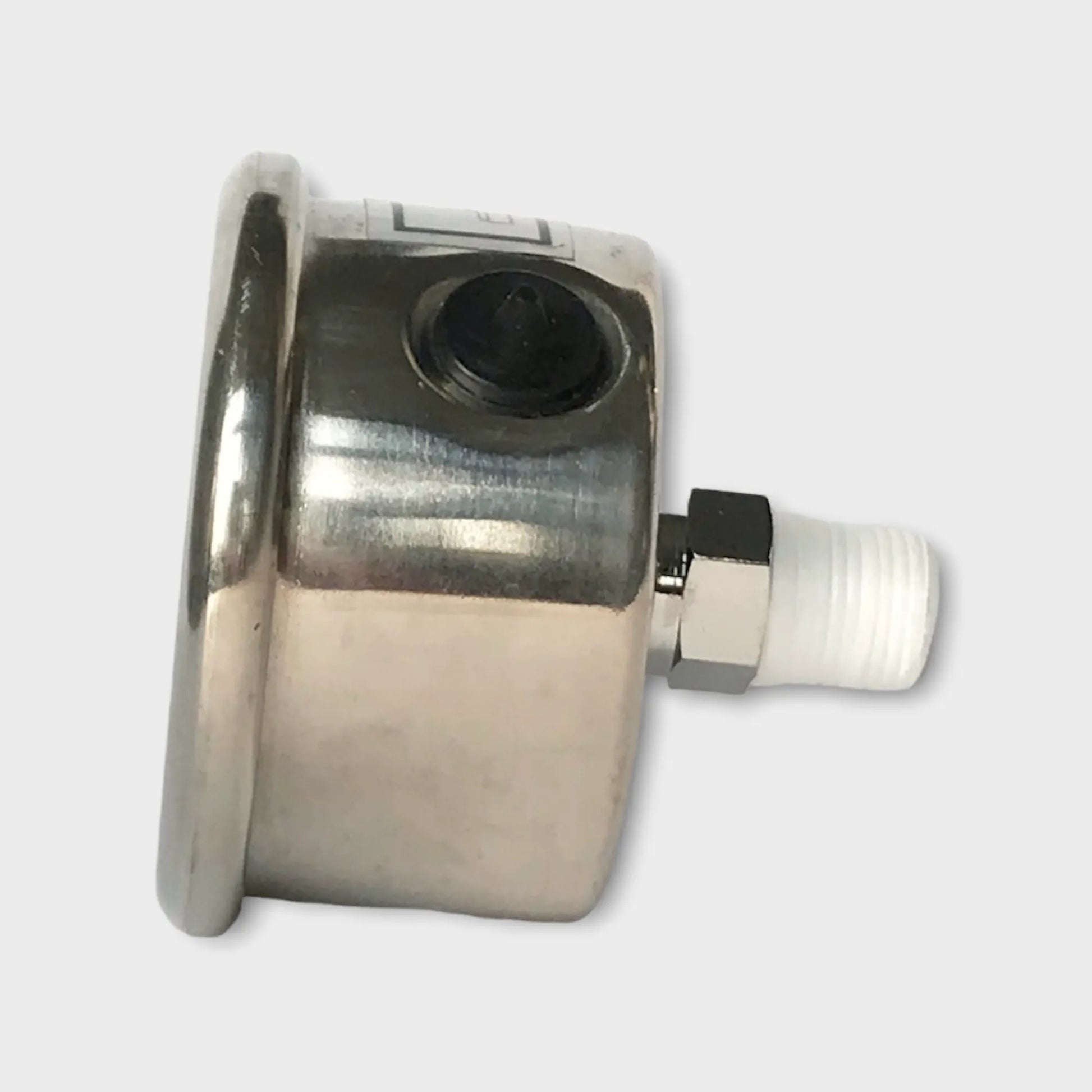

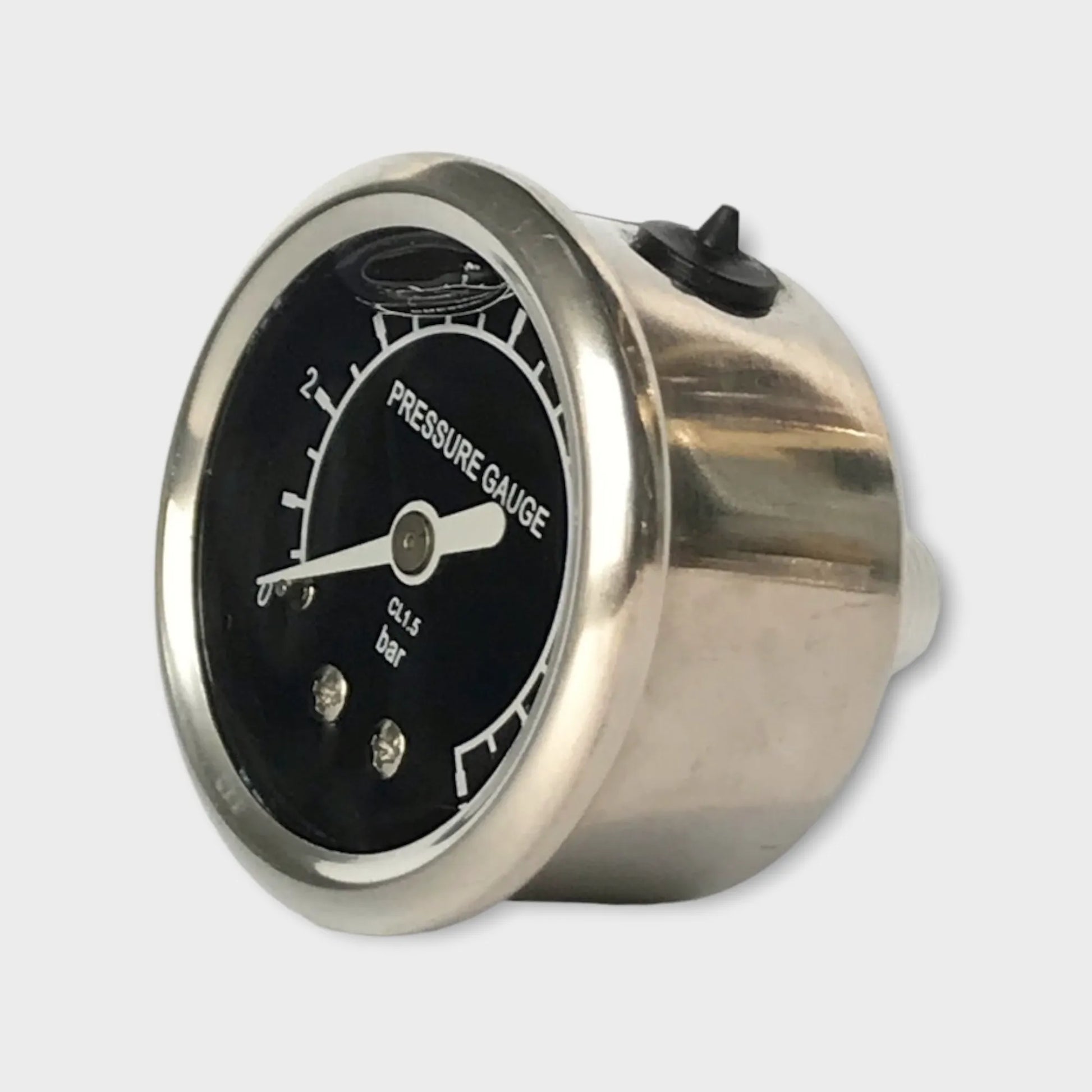

40mm Oil Filled Pressure Gauge 10 Bar Back Mount

40mm Oil Filled Pressure Gauge 10 Bar Back Mount

A 40mm oil-filled pressure gauge with a range of 10 bar and a back mount is a specific type of pressure measuring instrument designed for monitoring pressure levels. This type of gauge is commonly used in various industrial applications where accurate pressure measurement, durability, and protection against vibrations are required.

Key Features:

1. Gauge Size: The gauge has a compact size of 40mm, suitable for applications with limited space.

2. Pressure Range: The pressure gauge is designed to measure pressures within the range of 0 to 10 bar, covering pressures commonly encountered in industrial processes.

3. Oil-Filled Design: The gauge is filled with oil to dampen vibrations, improve accuracy, and extend the life of the gauge. The oil provides additional stability to the internal components, reducing the effects of vibrations.

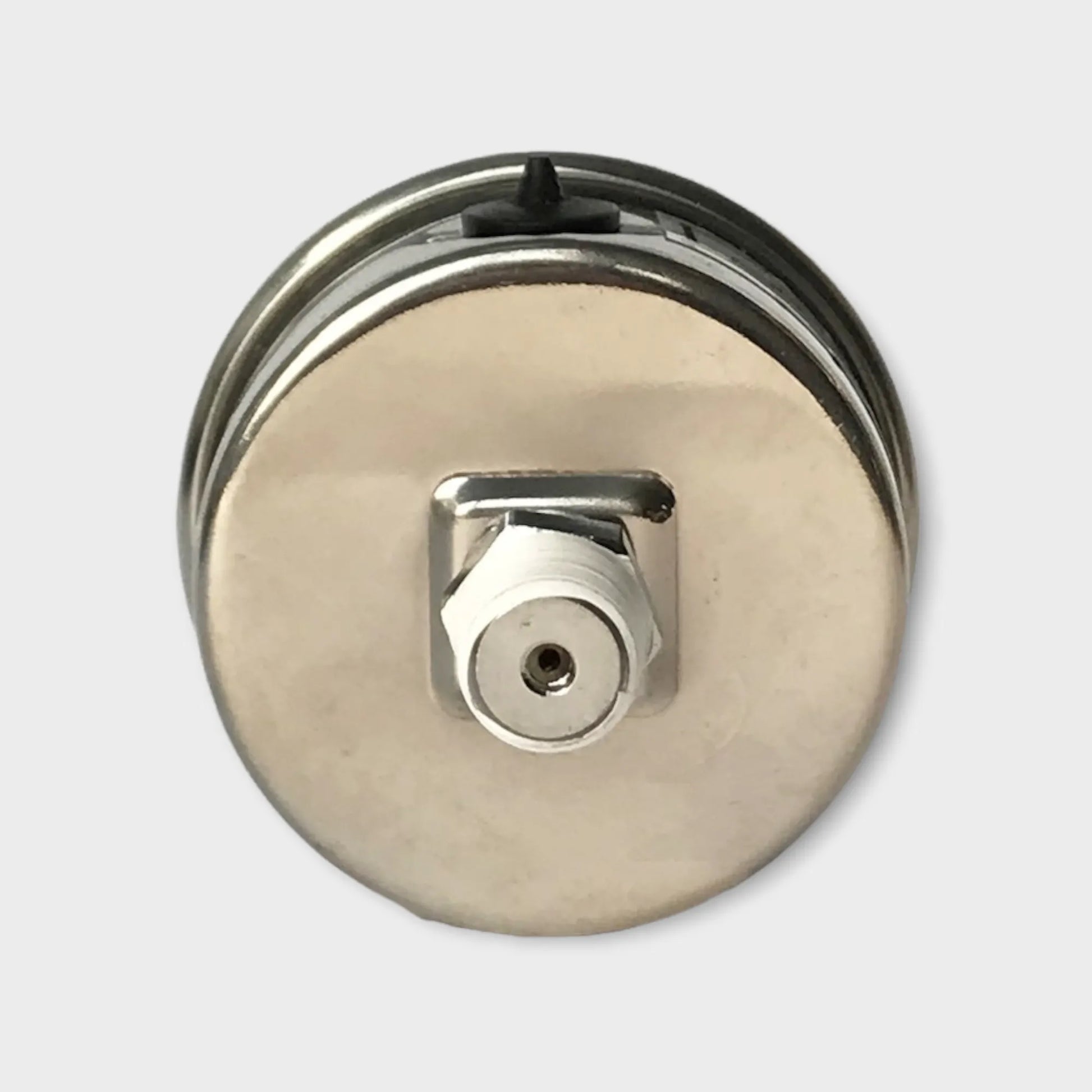

4. Back Mount: The back mount indicates that the gauge is designed to be mounted from the rear, allowing it to be attached to a surface through the back of the gauge.

5. Scale and Units: The dial is marked with a scale calibrated in units appropriate for industrial applications, such as bar or psi.

6. Pointer: The gauge is equipped with a pointer that indicates the pressure value on the dial, providing real-time pressure readings.

Applications:

This specific type of pressure gauge is commonly used in industrial applications, including:

- Manufacturing: Monitoring pressure in manufacturing processes and machinery.

- Hydraulic Systems: Measuring pressures in hydraulic systems and equipment.

- Pneumatic Systems: Monitoring pressures in pneumatic systems and components.

- Industrial Machinery: Checking pressure levels in various types of industrial equipment.

Benefits:

- Compact Size: The small 40mm size makes the gauge suitable for applications with limited space.

- Oil-Filled Design: The oil-filled design enhances accuracy, reduces the impact of vibrations, and extends the life of the gauge.

- Back Mount: The back mount allows the gauge to be securely mounted from the rear, providing stability and ease of installation.

Considerations:

- Pressure Range: Ensure the pressure range of the gauge matches the pressure levels in your application.

- Units: Make sure the gauge's units match the units used in your application.

- Environmental Compatibility: Verify that the gauge's construction and materials are suitable for the environmental conditions of your application.

- Calibration: Regular calibration is important to maintain the accuracy of pressure readings.

In summary, a 40mm oil-filled pressure gauge with a range of 10 bar and a back mount is a reliable tool for accurately measuring pressure in industrial applications. Its compact size, oil-filled design, and back mount make it suitable for various settings where accurate pressure monitoring is essential for efficient and safe operation.

Dial Size 40mm
Case material Stainless steel
Wetted parts Stainless steel
Mount Center back
Connection 1/8 PT, NPT, G... M10*1
Liquid Glycerin, Silicone oil
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
stainless steel pressure gauges, flowmeters and ball valves are working on the piping system

Applications

For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

  • Special features

    Excellent load cycle stability and shock resistance

    Design per EN 837-1

    Completely from stainless steel

    Scale ranges up to 0 ... 1600 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
