60 Psi Gas Pressure Gauge SS316 Case Glycerin Manometer

60 Psi Gas Pressure Gauge SS316 Case Glycerin Manometer

This 60 Psi Gas Manometer is designed to ensure reliable and accurate readings. It features an SS316 rugged case and glycerin-filled manometer for maximum durability. Enjoy precise measurements with this high-quality gauge.

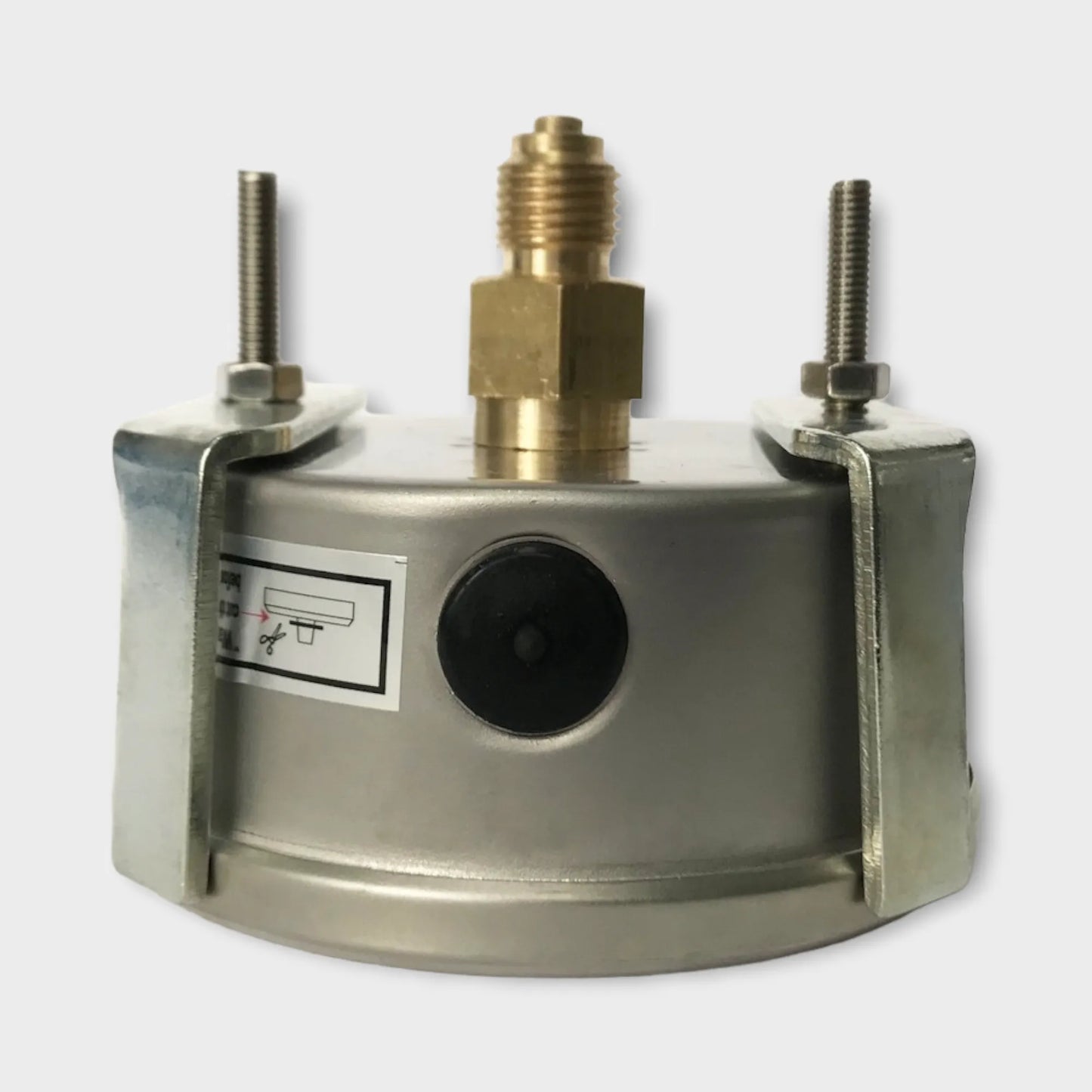

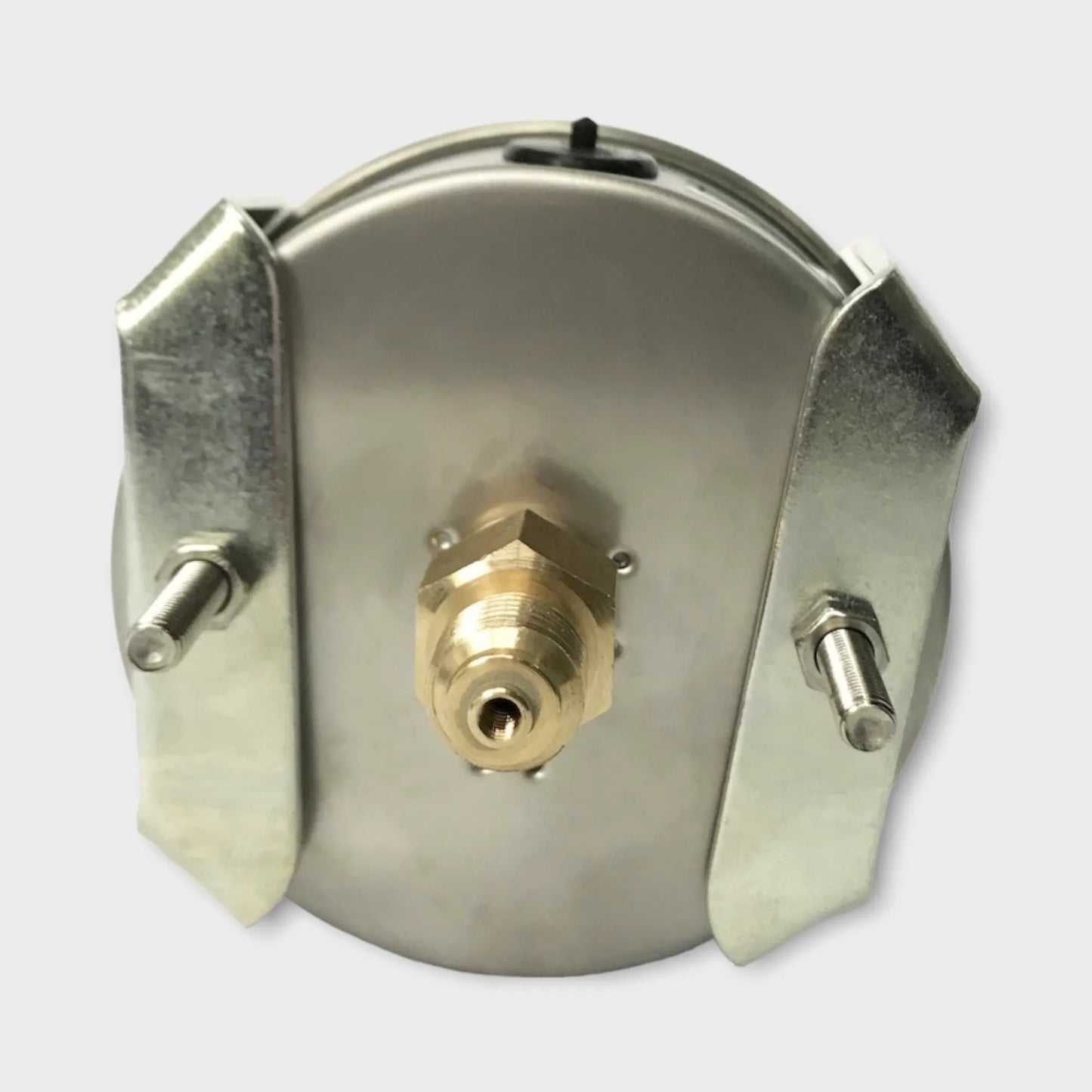

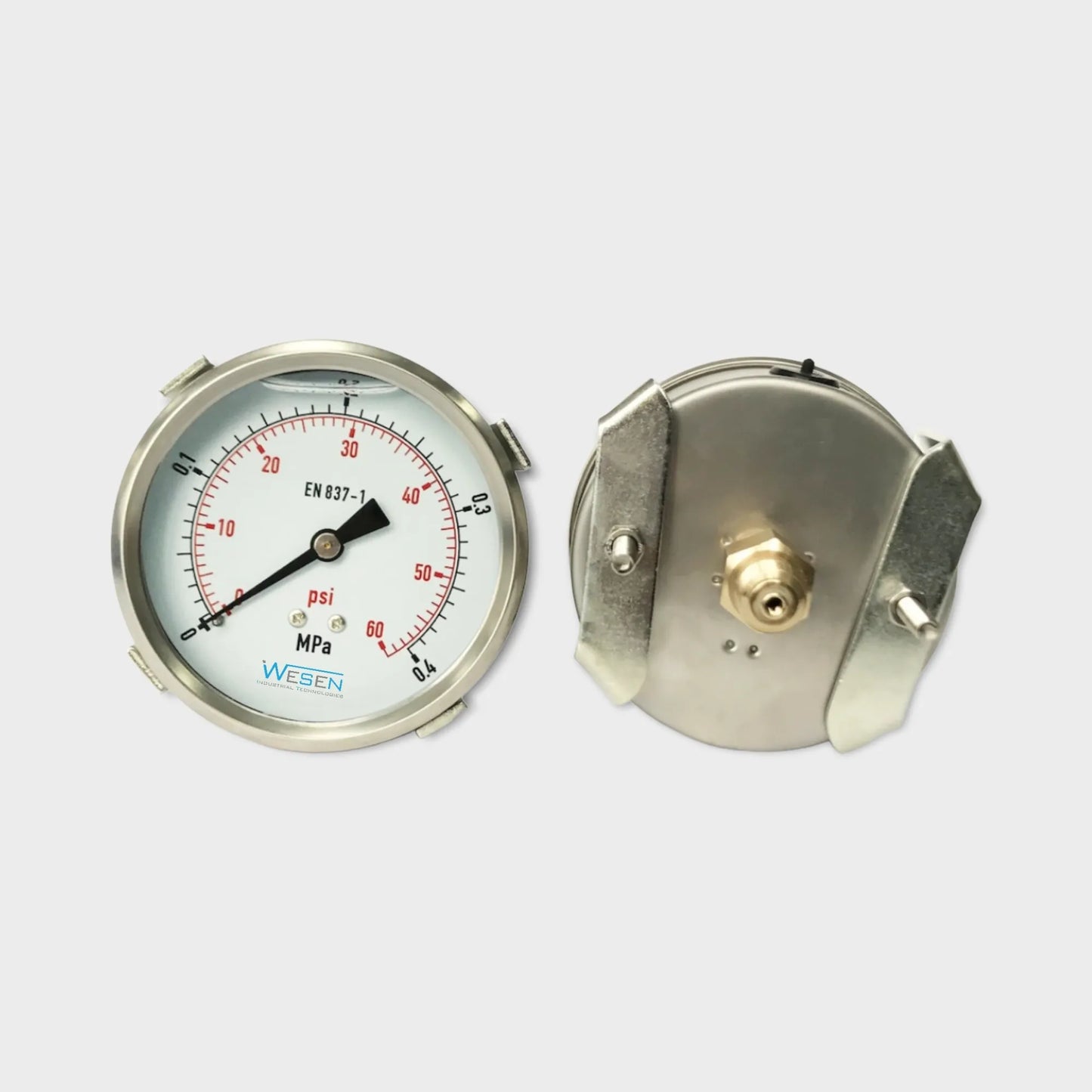

This 0 to 60 psi gas manometre is made of stainless steel and copper alloy. The 60 psi gas pressure gauge's diameter is 80mm and filled with glycerin. Comes with two brackets designed for panel mounting. The central axial joint is made of brass, which is suitable for the medium that is not corrosive to copper alloys.

Dial Size 80mm
Case material Stainless steel
Wetted parts Brass
Mount Bracket, Panel
Connection 1/4 PT, NPT, G... M14*1.5
Liquid Glycerin, Silicone oil, None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

Measure pressure precisely with this 60 Psi Gas Pressure Gauge SS316 Case Glycerin Manometer. Constructed with stainless steel 316 casing and filled with glycerin, this manometer gives you clear and accurate readings in any environment. Boost your confidence in your measurements with this dependable 60 psi gas pressure gauge! Contact us to get quotation of the 60 psi gas pressure gauge you need.

WESEN Technologies is a professional manufacturer of gas manometer. We can make the measuring range as you require. 0-60 psi is a commen range.

View full details
pressure vessels with vacuum pressure gauges on them


Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries

Mechanical pressure display on pipelines, fermenters, bioreactors and vessels

Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing

For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media

  • Special features

    Safety via mechanical pressure transmission

    Case and wetted parts in hygienic design

    Suitable for SIP and CIP, autoclavable version available

    Easy zero point setting

    High overload safety

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
