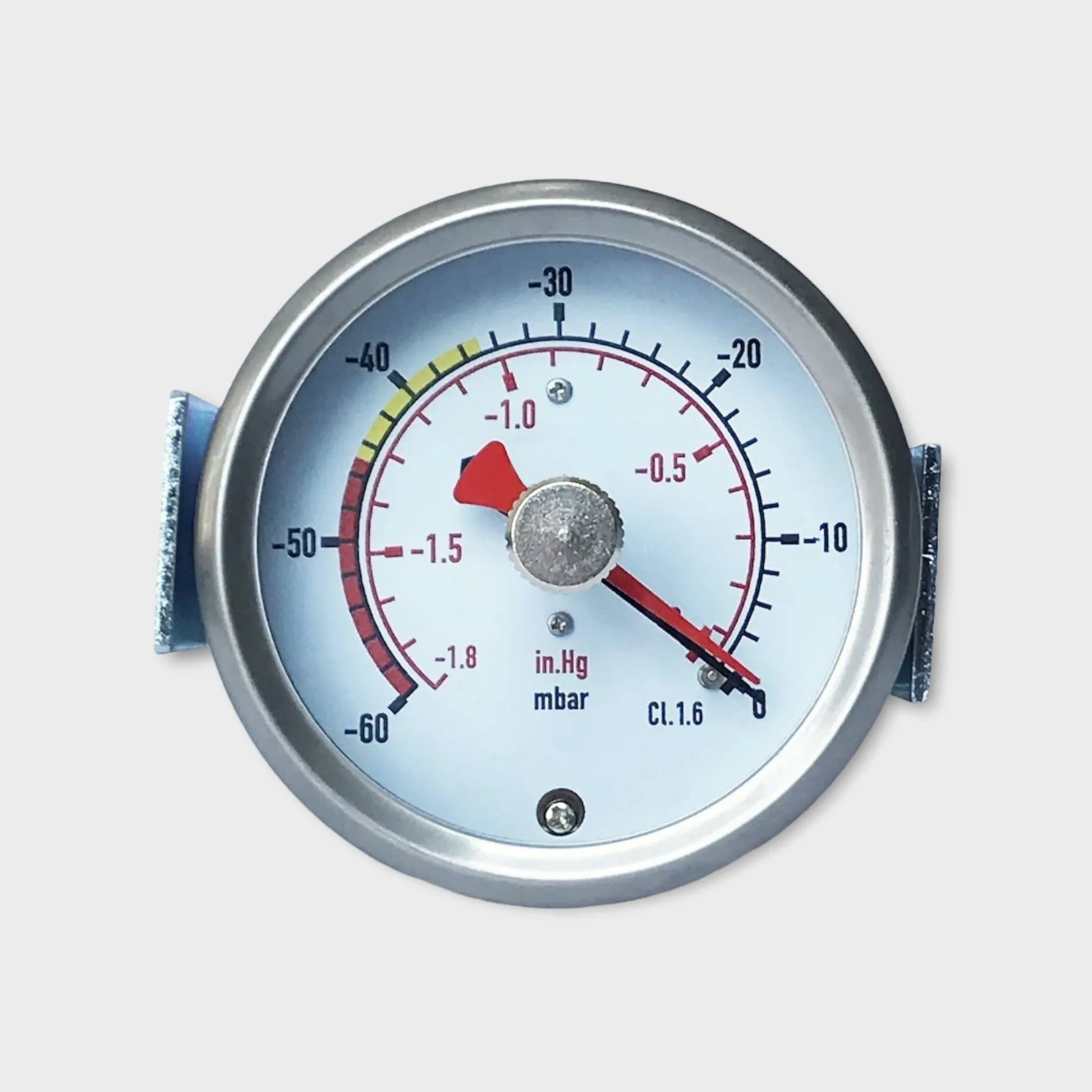

63mm Capsule Pressure Gauge Zero Adjustment U Clamp Mount

63mm Capsule Pressure Gauge Zero Adjustment U Clamp Mount

A 63mm capsule pressure gauge with zero adjustment and U clamp mount is a specific type of pressure measuring instrument designed for monitoring and controlling pressure levels. The capsule mechanism is used for pressure measurement, and the gauge includes a feature for zero adjustment to fine-tune the gauge's reading. The U clamp mount indicates the method of mounting the gauge using a U-shaped clamp.

Key Features:

1. Gauge Size: The gauge has a size of 63mm, referring to the diameter of the circular display.

2. Capsule Mechanism: The gauge uses a capsule mechanism for pressure measurement. Capsule mechanisms are known for their accuracy and sensitivity in measuring low pressures.

3. Zero Adjustment: The gauge features a zero adjustment feature, allowing you to adjust the gauge's reading to match a reference point or atmospheric pressure.

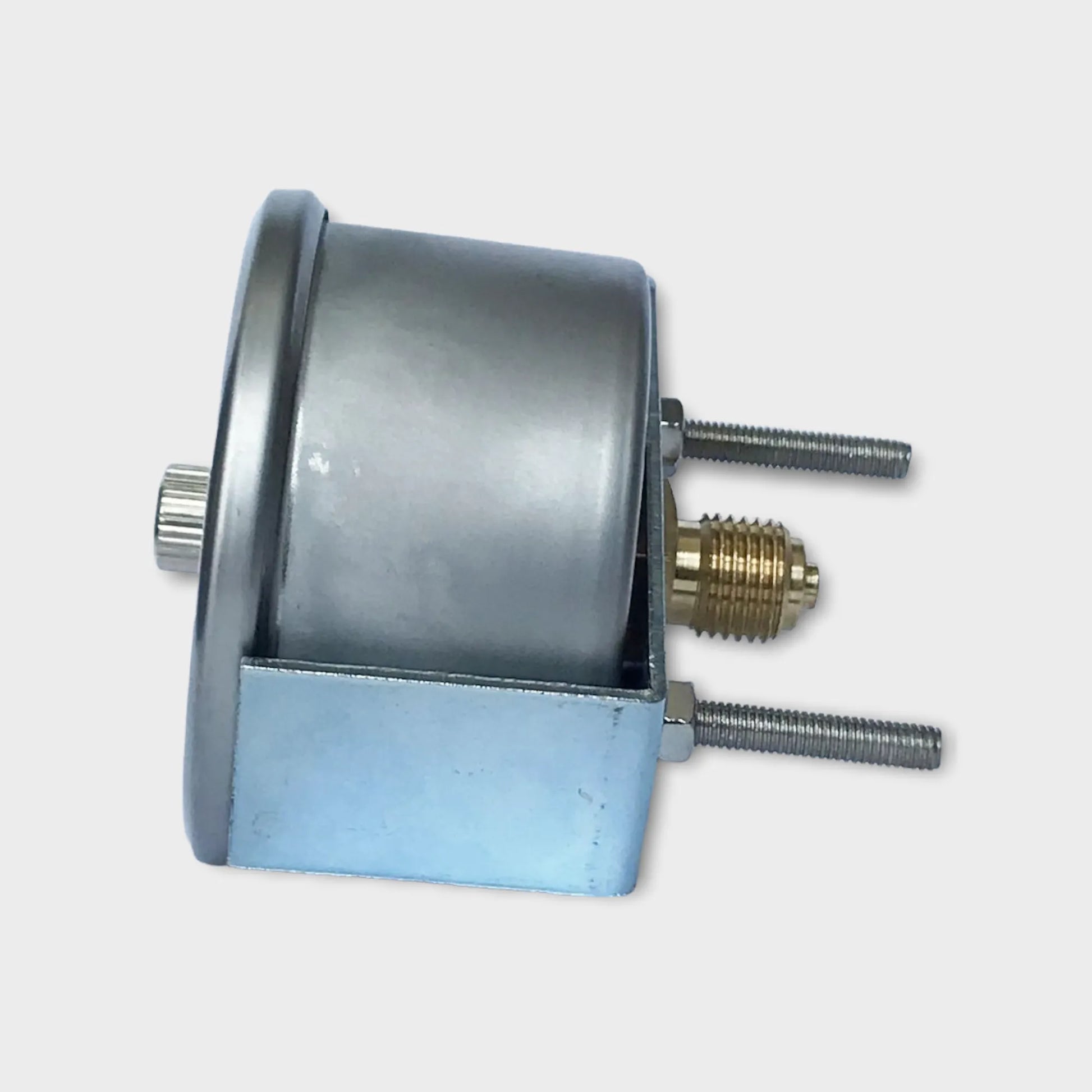

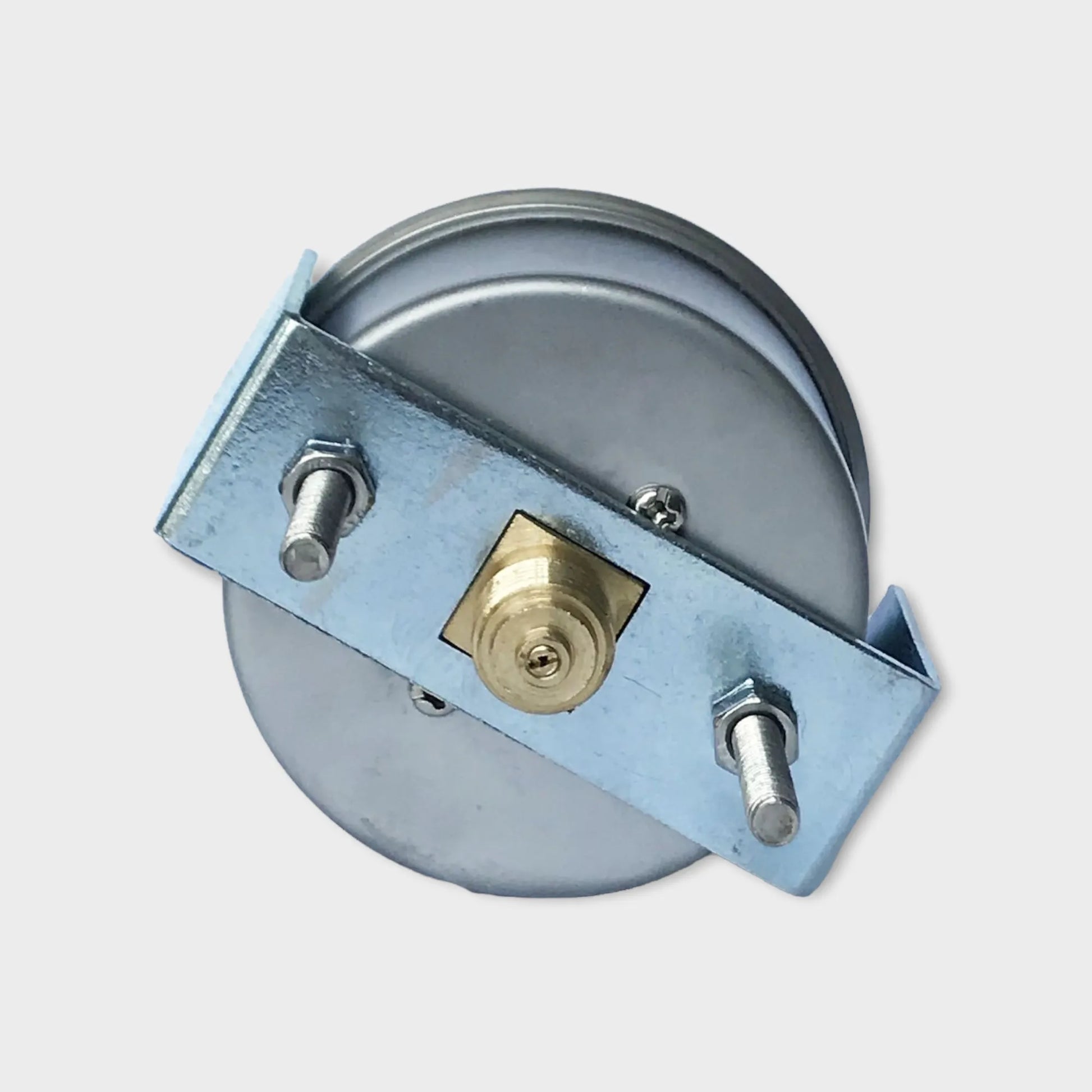

4. U Clamp Mount: The U clamp mount indicates that the gauge is mounted using a U-shaped clamp, which can provide secure and flexible attachment.

5. Scale and Units: The dial is marked with a scale calibrated in units appropriate for your application, such as psi, bar, kPa, or other relevant units.

6. Pointer: The gauge is equipped with a pointer that indicates the pressure value on the dial, providing real-time pressure readings.


This specific type of pressure gauge is commonly used in various applications where accurate pressure measurement is essential, including:

- Laboratory: Measuring pressure in scientific experiments and testing.

- Industrial Processes: Monitoring pressure in processes involving gases or liquids.

- Control Systems: Monitoring and controlling pressure in various systems and equipment.


- Capsule Mechanism: Capsule mechanisms are sensitive and accurate in measuring low pressures.

- Zero Adjustment: The zero adjustment feature allows you to fine-tune the gauge's reading for accuracy.

- U Clamp Mount: The U clamp mount provides flexibility in mounting the gauge securely.


- Pressure Range: Ensure the pressure range of the gauge matches the pressure levels in your application.

- Units: Make sure the gauge's units match the units used in your application.

- Calibration: Regular calibration is important to maintain the accuracy of pressure readings.

- Environmental Compatibility: Verify that the gauge's construction and materials are suitable for the environmental conditions of your application.

In summary, a 63mm capsule pressure gauge with zero adjustment and U clamp mount is a versatile tool for accurately measuring pressure in various applications. The capsule mechanism, zero adjustment feature, and U clamp mount provide accuracy, flexibility, and ease of installation, making this type of gauge suitable for different settings where precise pressure monitoring is crucial.

Dial Size 63mm
Case material Stainless steel
Wetted parts Brass
Mount U Clamp
Connection 1/4 PT, NPT, G... M14*1.5
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
low pressure gas meter industrial application


Low pressure gauge for applications in a controlled environment

Low pressure pneumatic systems

Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring

For gaseous, dry and non-aggresive media

  • Special features

    Front zero adjustment

    Special connections on request

    Scale ranges from 0/10 InWC (25 mbar)

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
