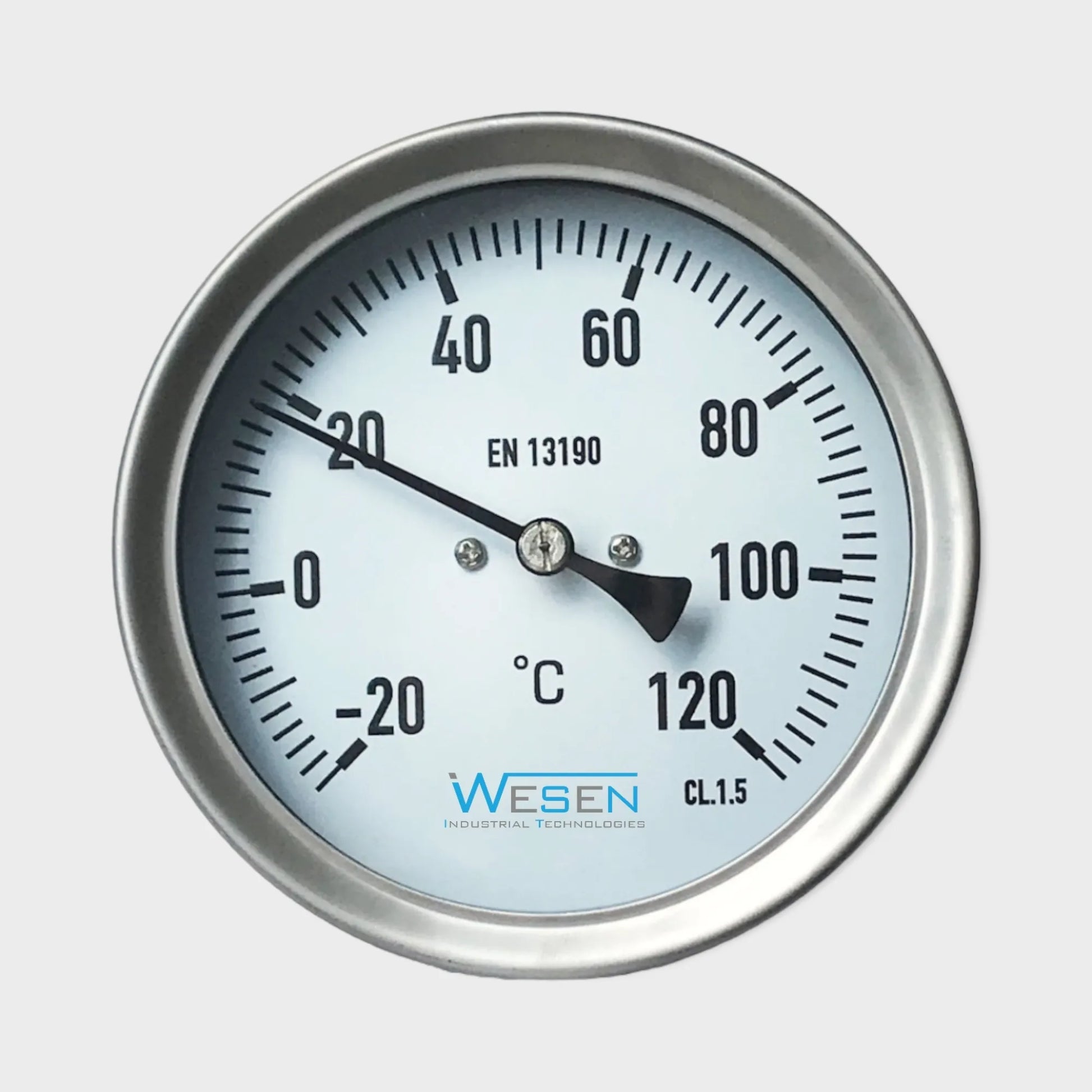

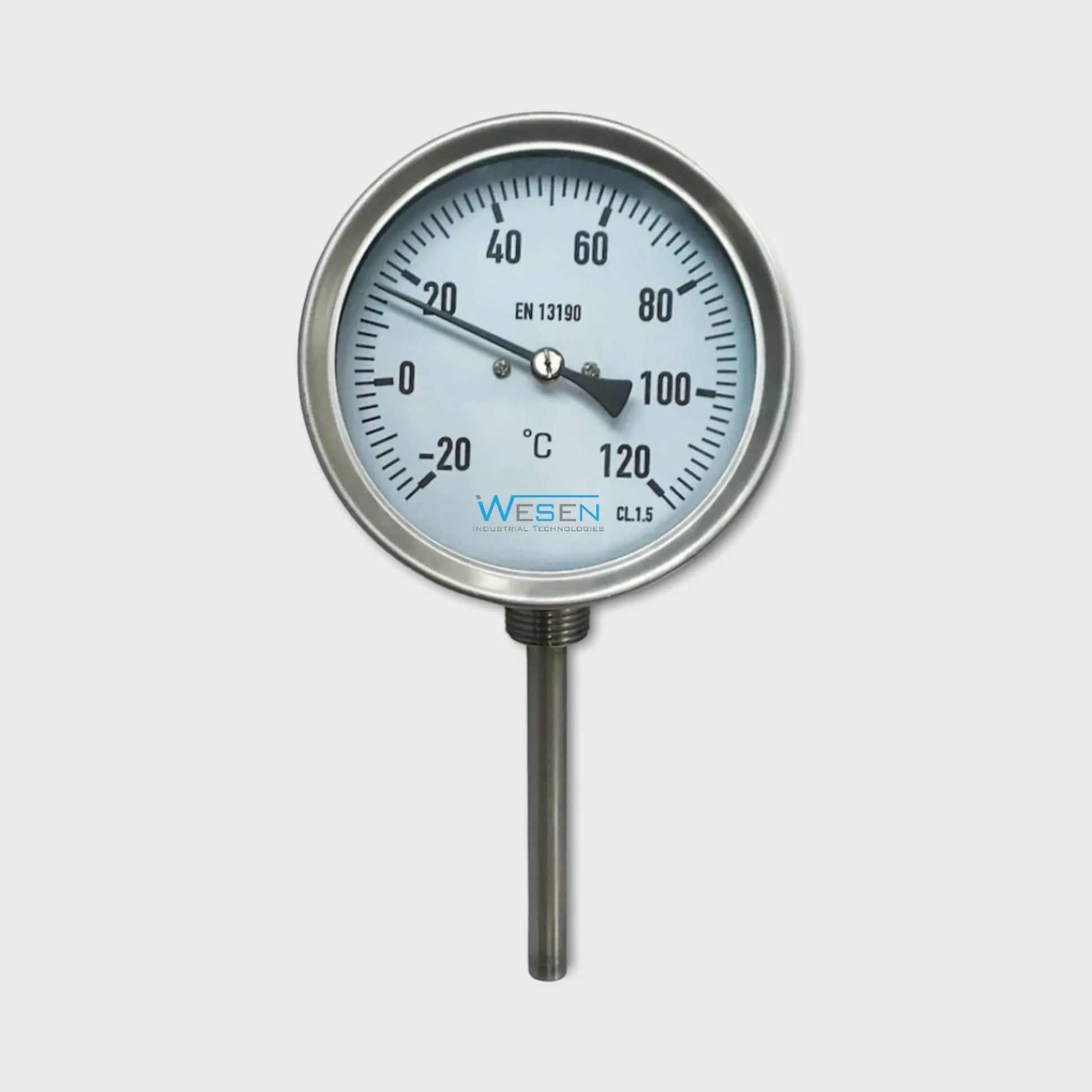

Bimetallic Thermometer Every Angle Mount Stainless Steel 120 C

Bimetallic Thermometer Every Angle Mount Stainless Steel 120 C

Nominal Size
Scale

The Bimetallic Thermometer with Every Angle Mount in Stainless Steel is a versatile and dependable temperature measurement instrument designed for a wide range of applications. With a temperature range of up to 120°C (Celsius degrees), this thermometer is well-suited for monitoring temperatures in various industrial, laboratory, and HVAC (heating, ventilation, and air conditioning) settings.



Key Features:



1. Bimetallic Technology: This thermometer utilizes a bimetallic coil mechanism to measure temperature accurately. The bimetallic strip consists of two different metals with different coefficients of thermal expansion, allowing it to bend or coil in response to changes in temperature. This movement is then translated into a temperature reading on the scale.



2. Stainless Steel Construction: The thermometer is constructed from high-quality stainless steel. This material not only ensures durability but also provides resistance to corrosion, making it suitable for use in harsh or corrosive environments.

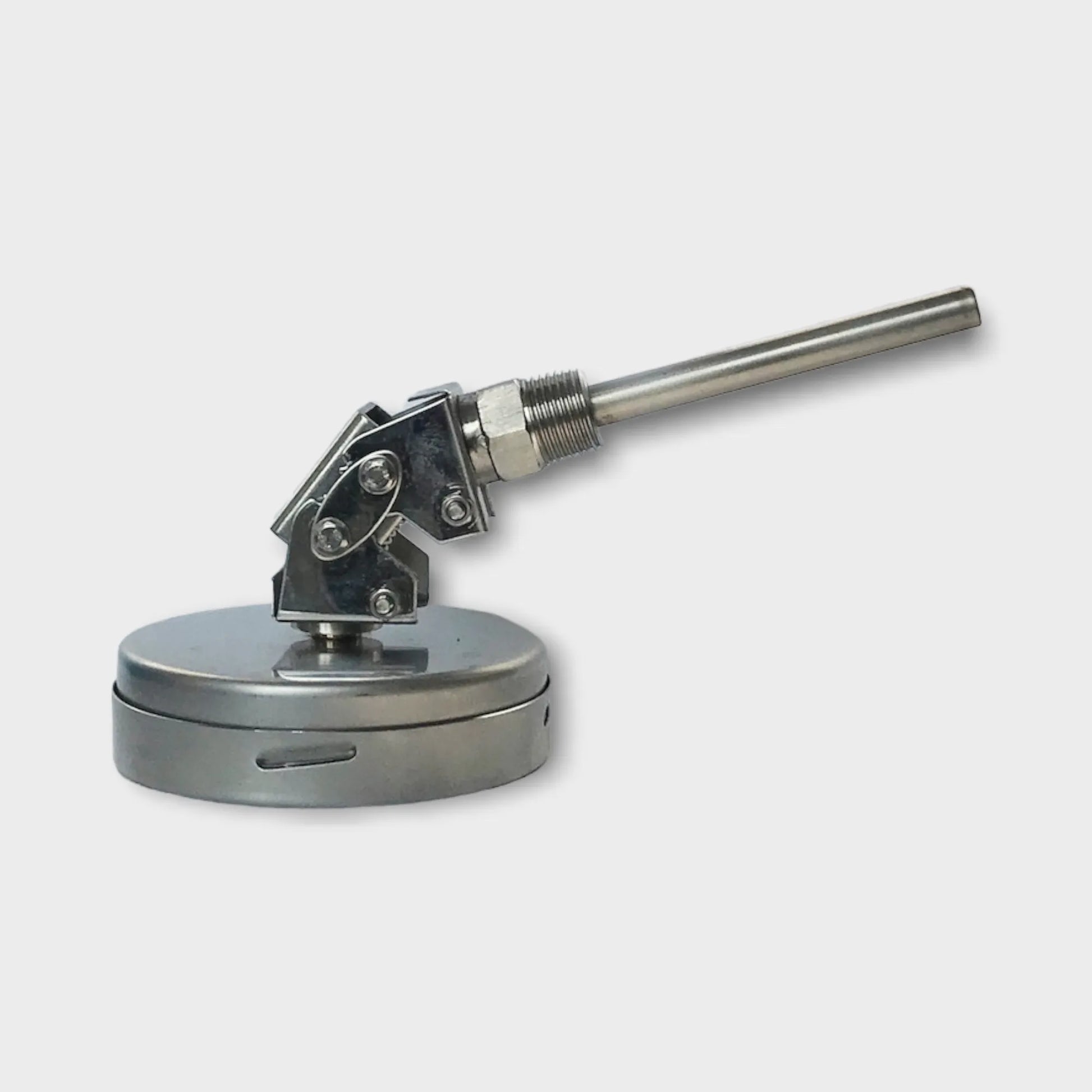

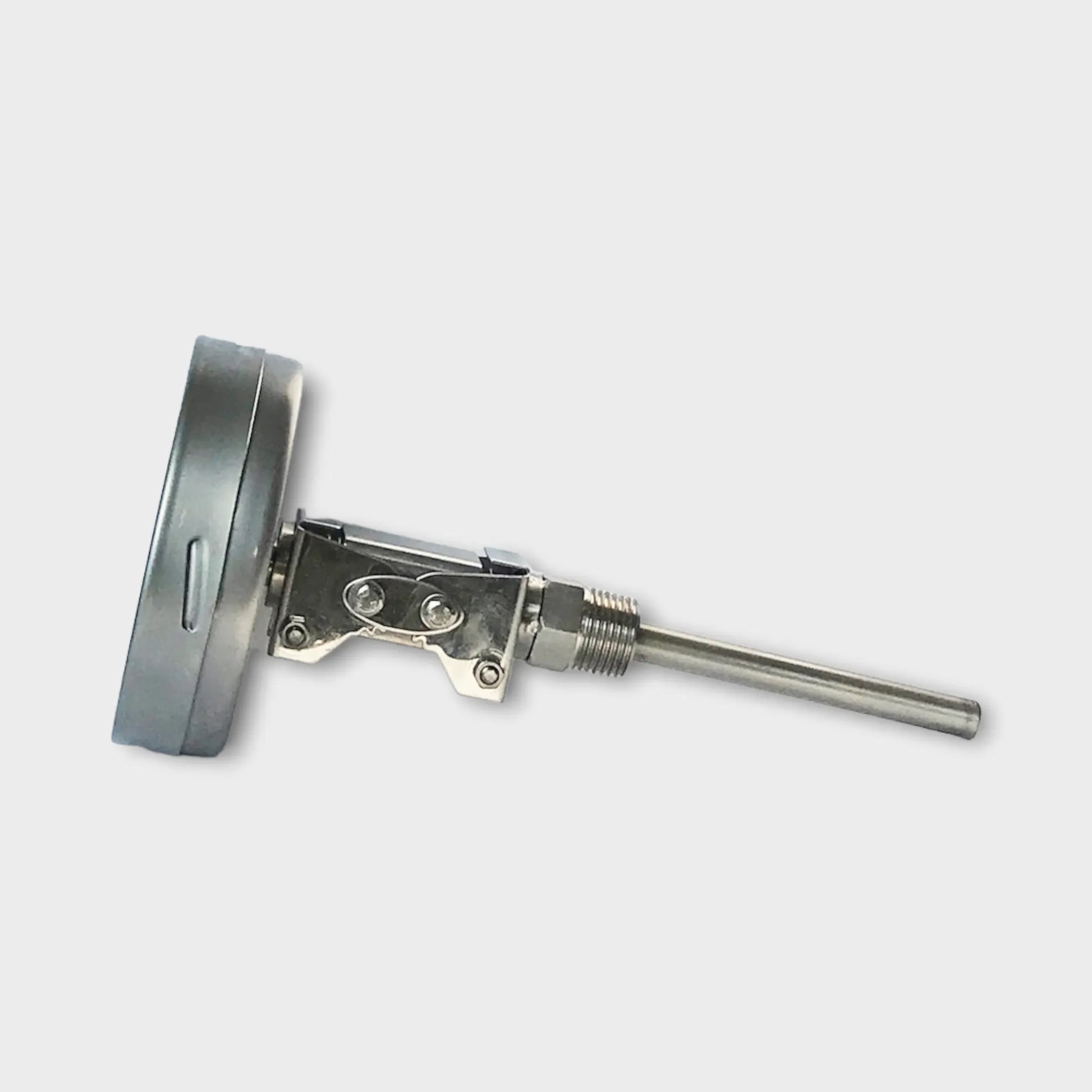

3. Every Angle Mount: The thermometer is equipped with an innovative every-angle mount, allowing it to be easily installed at various angles on surfaces or equipment. This flexibility in mounting options ensures that you can position it optimally for your specific application, providing convenient and accurate temperature measurements.



4. Clear and Easy-to-Read Scale: The thermometer features a clear and easily readable temperature scale, calibrated in degrees Celsius (°C). This ensures that temperature readings can be quickly and accurately interpreted.



5. Wide Range of Applications: With its robust construction and accurate temperature measurement capabilities, this bimetallic thermometer is suitable for a broad spectrum of uses. It can be employed in industrial processes, scientific experiments, HVAC systems, and more.



6. 120°C Temperature Range: The thermometer can measure temperatures ranging up to 120°C, making it versatile enough to handle a variety of temperature monitoring tasks.



Whether you need to measure the temperature of liquids, gases, or solid surfaces, the Bimetallic Thermometer with Every Angle Mount in Stainless Steel is a reliable and adaptable choice. Its stainless steel construction, precision bimetallic technology, and versatile mounting options make it a valuable tool for maintaining optimal temperature control and ensuring the safety and efficiency of your operations.

Dial Size 100mm
Case material Stainless steel
Connection material Stainless steel
Mount Every angle
Thread 1/2 PT, NPT, G... M20*1.5
Stem dia. 6mm, 8mm, 10mm
Stem length Due to order
View full details
Eight bimetal thermometers installed on machine

Applications

Chemical and petrochemical
Power Engineering
Heating system
HVAC
Food and beverage industry

  • Special features

    On-site temperature display, intuitive and convenient

    Safe and reliable, long service life

    Axial type, radial type, 135º type, universal type and other varieties are complete, suitable for various on-site installation needs

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
