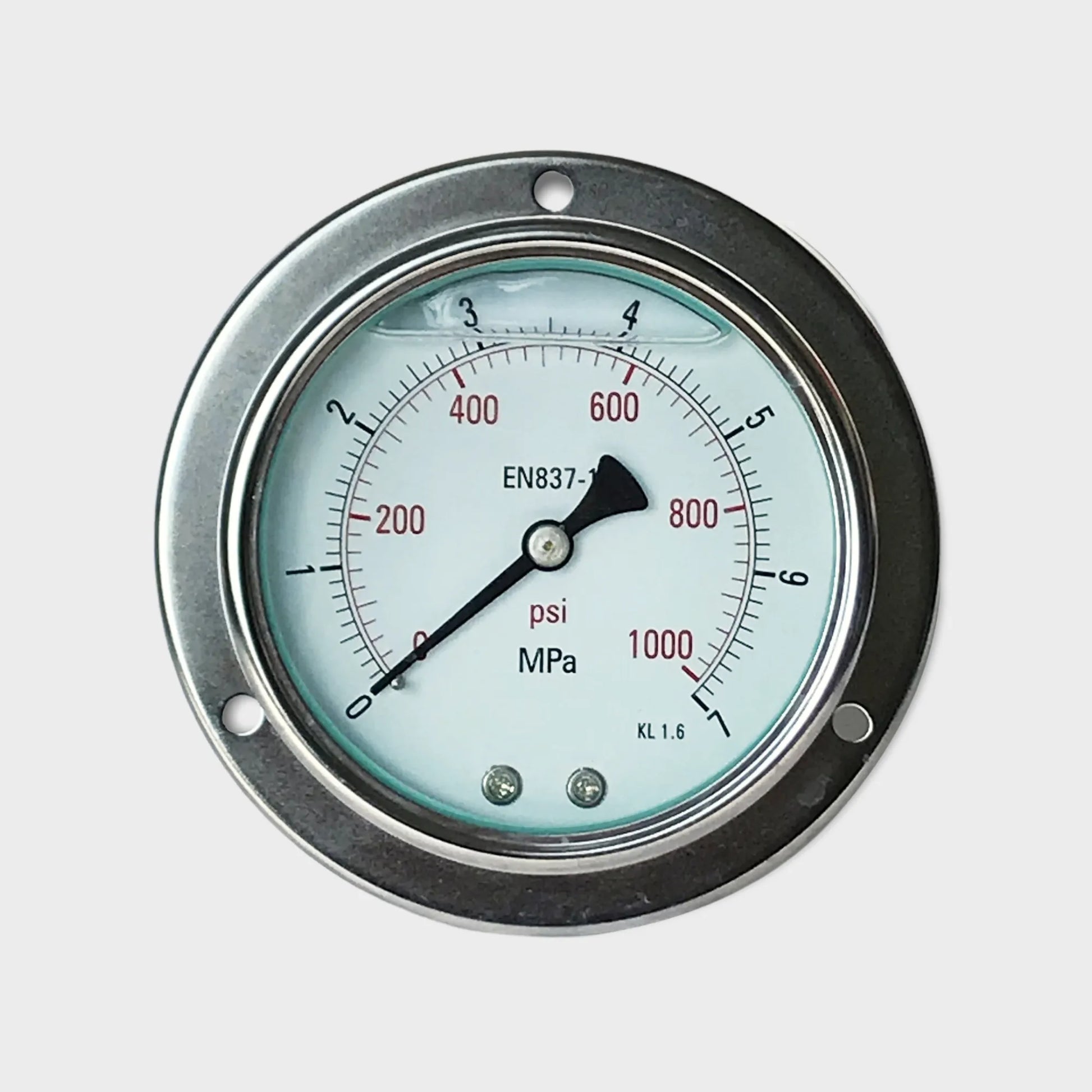

100mm Panel Mount Pressure Gauge with Brass Connection

100mm Panel Mount Pressure Gauge with Brass Connection

A 100mm panel mount pressure gauge with a brass connection is a type of pressure measuring instrument used to indicate the pressure of a fluid (liquid or gas) within a system. Let's break down the key components of the description:

1. **100mm Panel Mount**: This refers to the size of the pressure gauge's dial face. It means the gauge has a diameter of 100 millimeters (mm), which is a common size for panel-mounted pressure gauges. The "panel mount" indicates that the gauge is designed to be mounted onto a panel or surface.

2. **Pressure Gauge**: A pressure gauge is a device used to measure and display the pressure of a fluid. It typically consists of a dial face with a needle that moves across a scale to indicate the pressure reading.

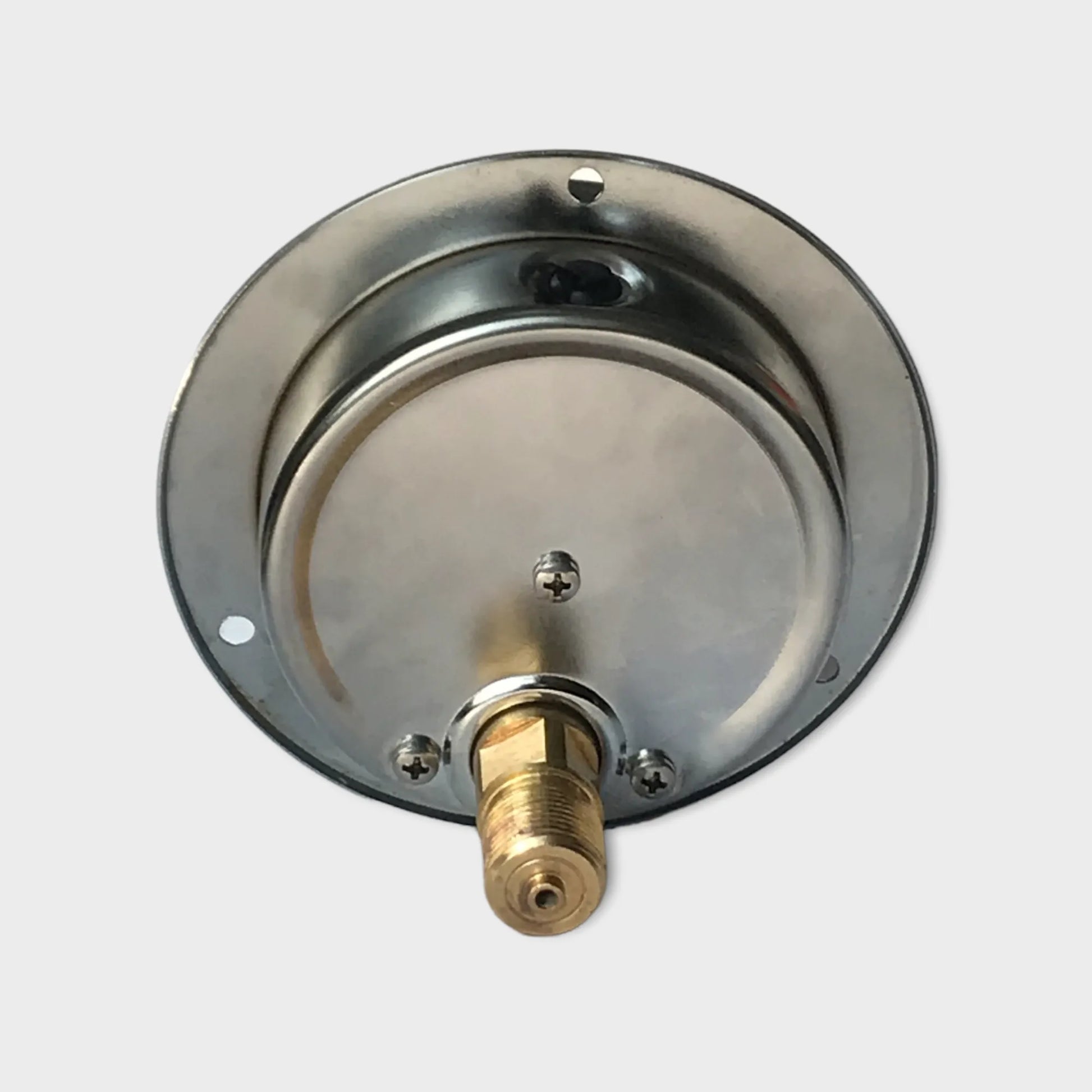

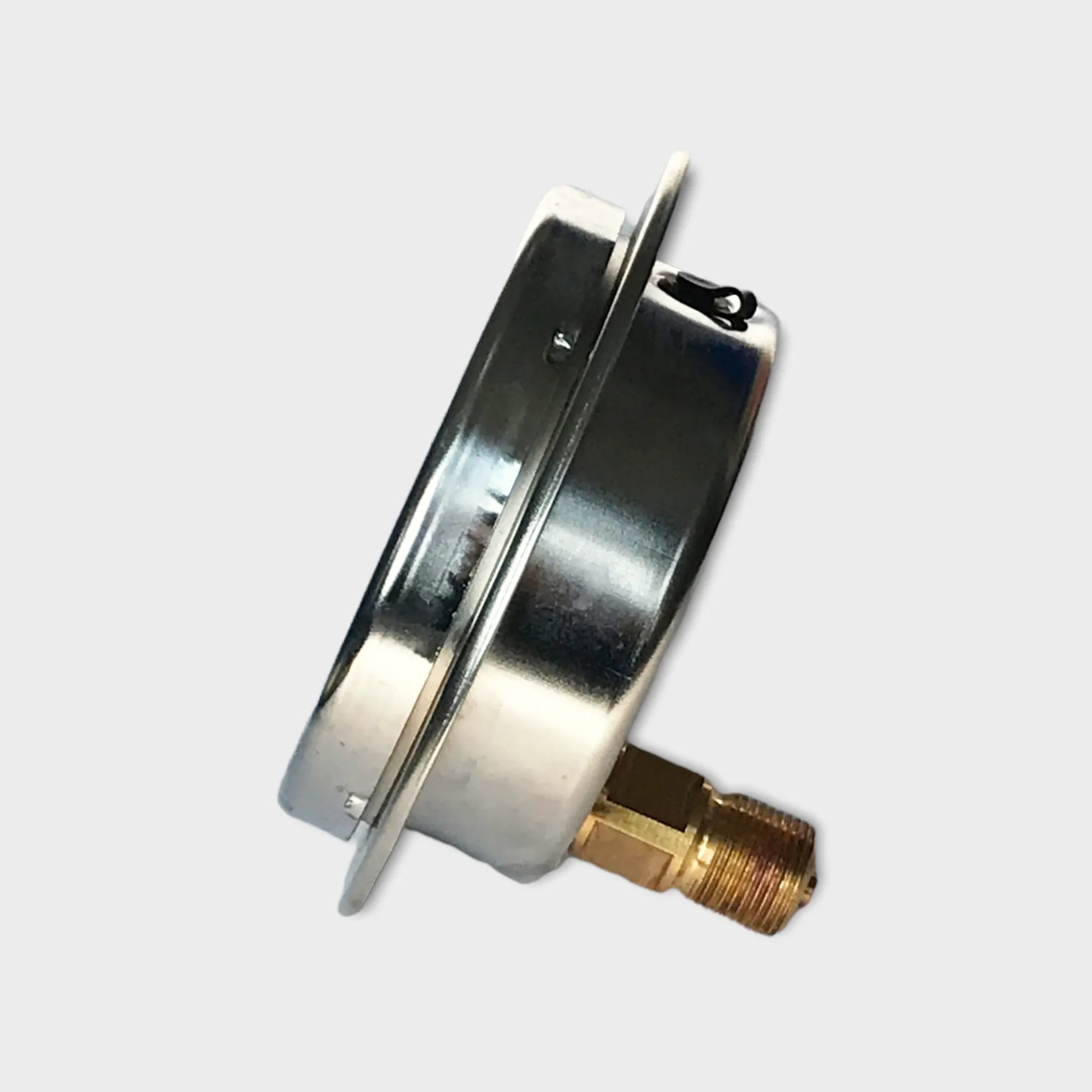

3. **Brass Connection**: This refers to the material of the connection point of the pressure gauge. The connection is the part of the gauge that interfaces with the system whose pressure is being measured. In this case, it's made of brass. Brass is often used for pressure gauge connections due to its corrosion resistance and durability, especially in industrial and harsh environments.

In summary, a 100mm panel mount pressure gauge with a brass connection is a pressure measuring instrument with a 100mm diameter dial face that can be mounted on a panel. The gauge has a brass connection, which is the part that comes into contact with the fluid whose pressure is being measured. This type of gauge is commonly used in various applications such as industrial processes, HVAC systems, hydraulic systems, and more, where accurate pressure monitoring is important.

Dial Size 100mm
Case material Chromed steel
Wetted parts Brass
Mount Lower back
Connection 1/2 PT, NPT, G... M20*1.5
Liquid Glycerin, Silicone oil
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
pressure vessels with vacuum pressure gauges on them


Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries

Mechanical pressure display on pipelines, fermenters, bioreactors and vessels

Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing

For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media

  • Special features

    Safety via mechanical pressure transmission

    Case and wetted parts in hygienic design

    Suitable for SIP and CIP, autoclavable version available

    Easy zero point setting

    High overload safety

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
