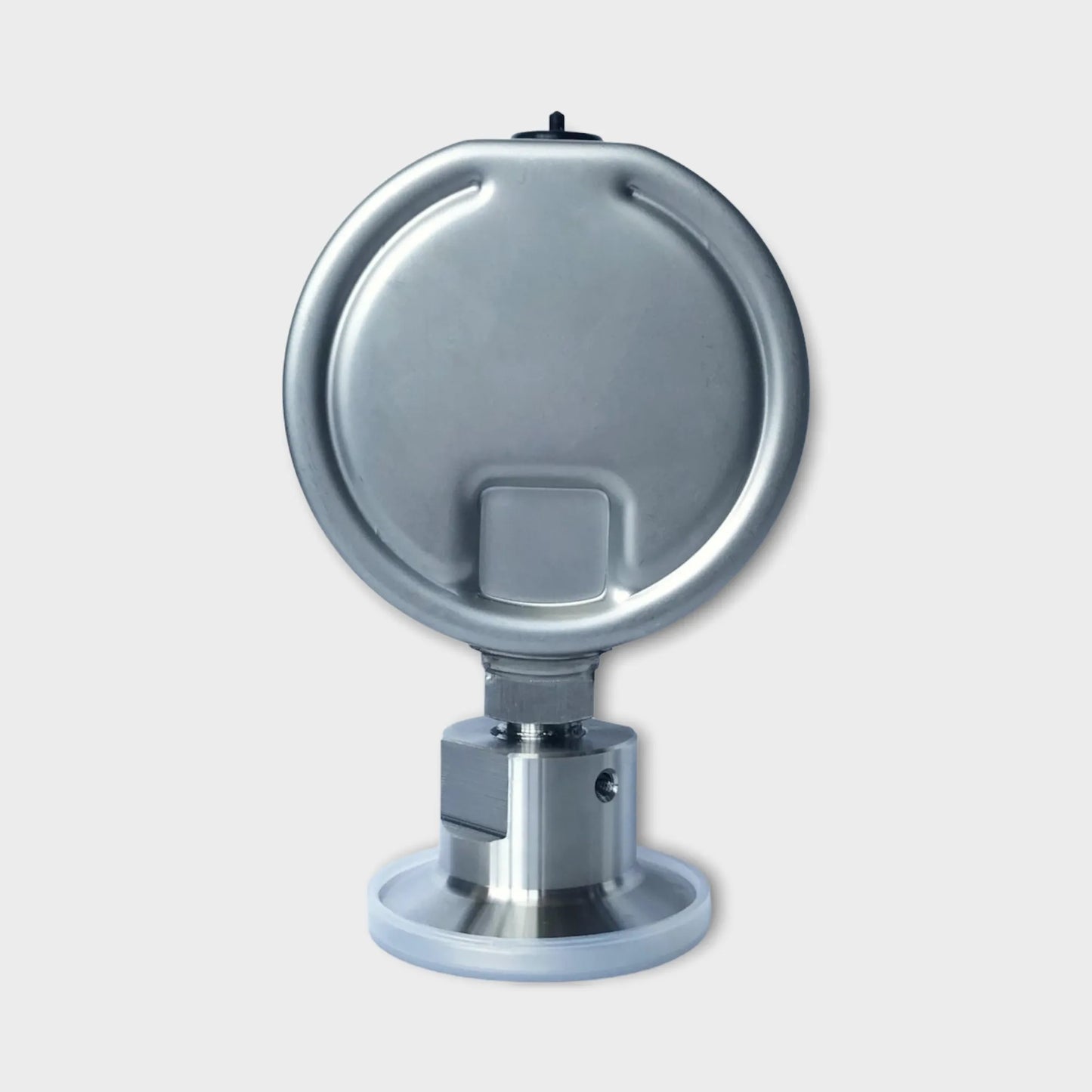

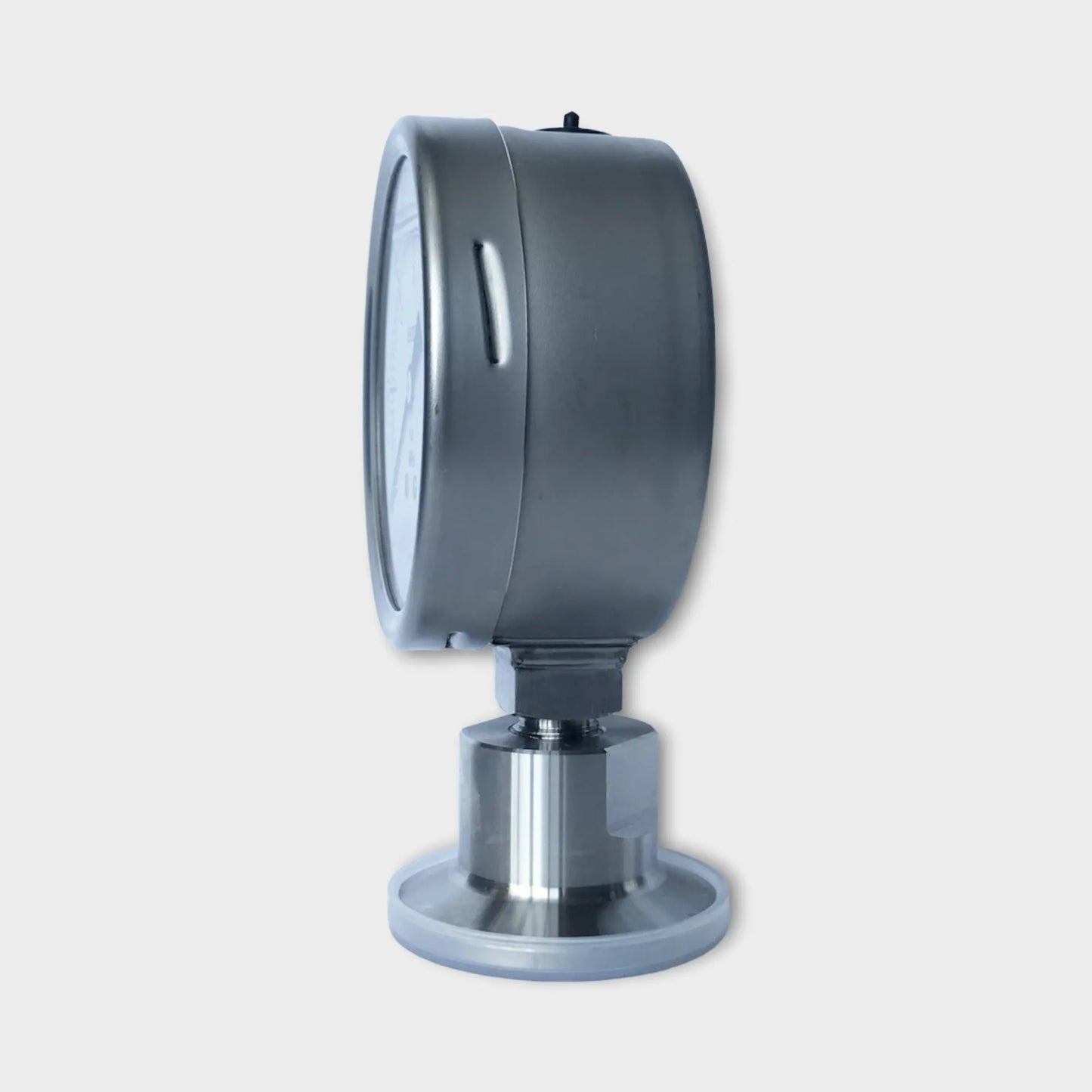

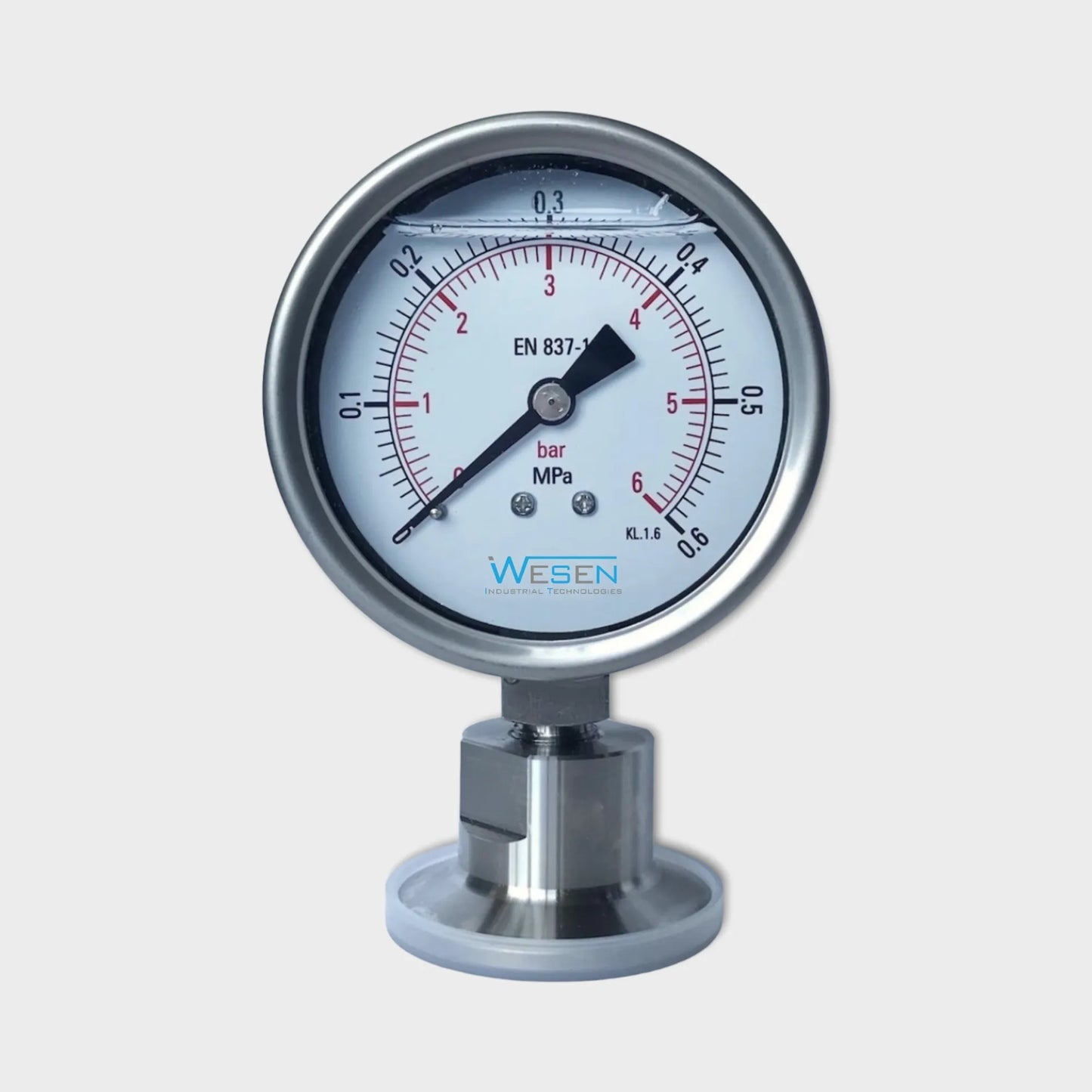

Diaphragm Sealed Pressure Gauge Sanitary Type

Diaphragm Sealed Pressure Gauge Sanitary Type

Nominal Size
Pressure Range

Introducing our Diaphragm Sealed Pressure Gauge, specially designed for sanitary applications:

Product Description:

Our Diaphragm Sealed Pressure Gauge, Sanitary Type, is a premium instrument engineered to meet the exacting demands of sanitary processes in the food, pharmaceutical, biotechnology, and beverage industries. This gauge combines precision pressure measurement with a robust diaphragm seal, ensuring the highest level of hygiene, accuracy, and reliability in your critical sanitary applications.

Key Features:

1. Sanitary Design: The gauge is purpose-built for sanitary environments, featuring a design that adheres to strict hygienic standards. It is crafted to eliminate crevices and potential contamination points, making it ideal for industries with stringent cleanliness requirements.

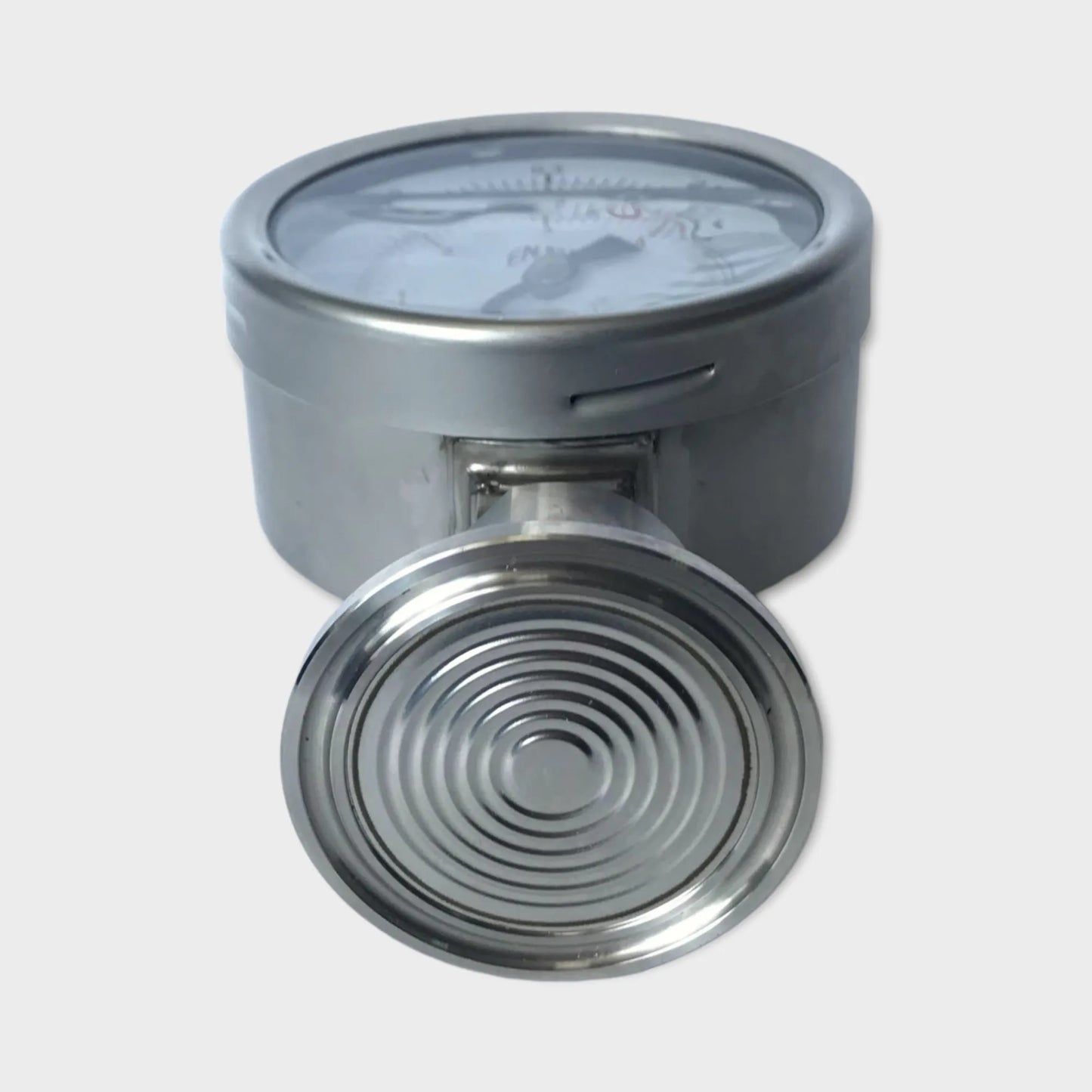

2. Diaphragm Seal Protection: The diaphragm seal acts as a protective barrier between the process fluid and the gauge internals. This not only ensures the gauge's longevity but also prevents contamination of the process media, guaranteeing product integrity.

3. Precision Measurement: Our Diaphragm Sealed Pressure Gauge delivers high-precision pressure readings, crucial for maintaining the quality and safety of your products. Accurate pressure monitoring is paramount in sanitary processes, and this gauge excels in that regard.

4. Materials of Choice: Constructed from materials specifically chosen for their compatibility with sanitary applications, this gauge incorporates stainless steel and FDA-compliant diaphragm materials. It meets the highest standards for purity and cleanliness.

5. Easy to Clean: The gauge's design facilitates easy cleaning and sterilization, minimizing downtime during maintenance and ensuring that your processes remain compliant with regulatory requirements.

6. Multiple Connection Options: We offer various connection options, including sanitary clamps (tri-clamp), threaded, and flanged connections, making it adaptable to different equipment and systems.

7. Customizable Range: Tailored to your specific needs, our Diaphragm Sealed Pressure Gauge can be customized to measure pressure within the desired range, ensuring it meets the precise requirements of your sanitary process.

8. Compliance and Certification: This gauge conforms to industry standards and regulations, and it can be certified for compliance with specific standards upon request. It's designed to uphold the strictest quality and safety standards.

9. Versatile Applications: Whether you're monitoring pressure in bioreactors, filtration systems, storage tanks, or any other sanitary process, our gauge is versatile enough to handle the job effectively.

In summary, our Diaphragm Sealed Pressure Gauge, Sanitary Type, is the ultimate solution for industries where hygiene, precision, and reliability are paramount. It's engineered to excel in sanitary applications, providing accurate pressure measurements while upholding the highest standards of cleanliness and product quality. Trust in the quality and performance of our Diaphragm Sealed Pressure Gauge to ensure the success and safety of your sanitary processes.

Dial Size 80mm
Case material Stainless steel
Wetted parts Stainless steel
Mount Lower
Connection 1/4 PT, NPT, G... M14*1.5
Liquid Glycerin, Silicone oil, None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
black painted diaphragm pressure gauges mounted and working on machine


Injection Molding Device, hydraulic

Machine building and plant construction

Heating and air-conditioning technology

Fire sprinkler systems, compressor

  • Special features

    Design per EN 837-1

    Nominal size 40, 50, 63, 80, 100 and 160

    Scale ranges up to 0 ... 1000 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
