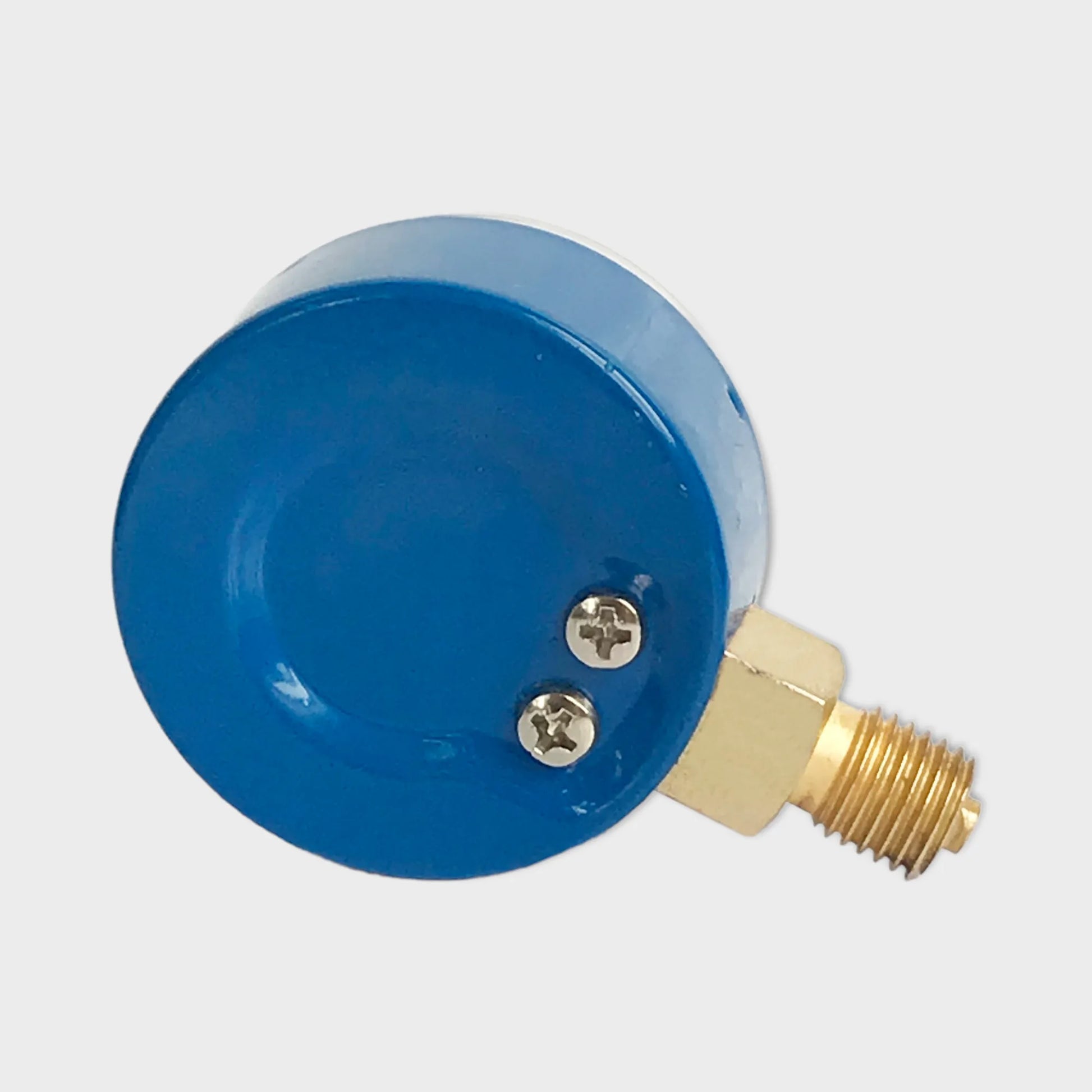

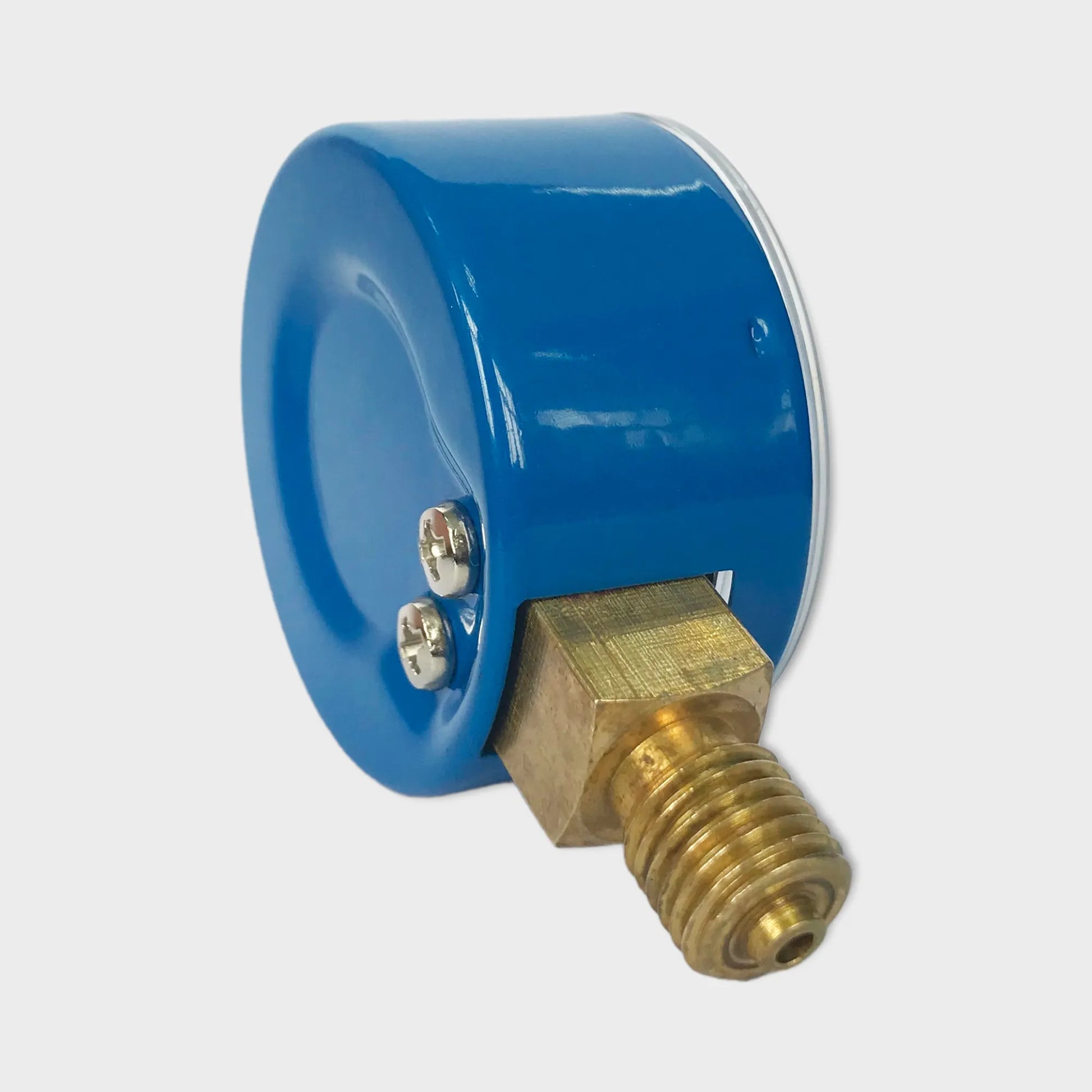

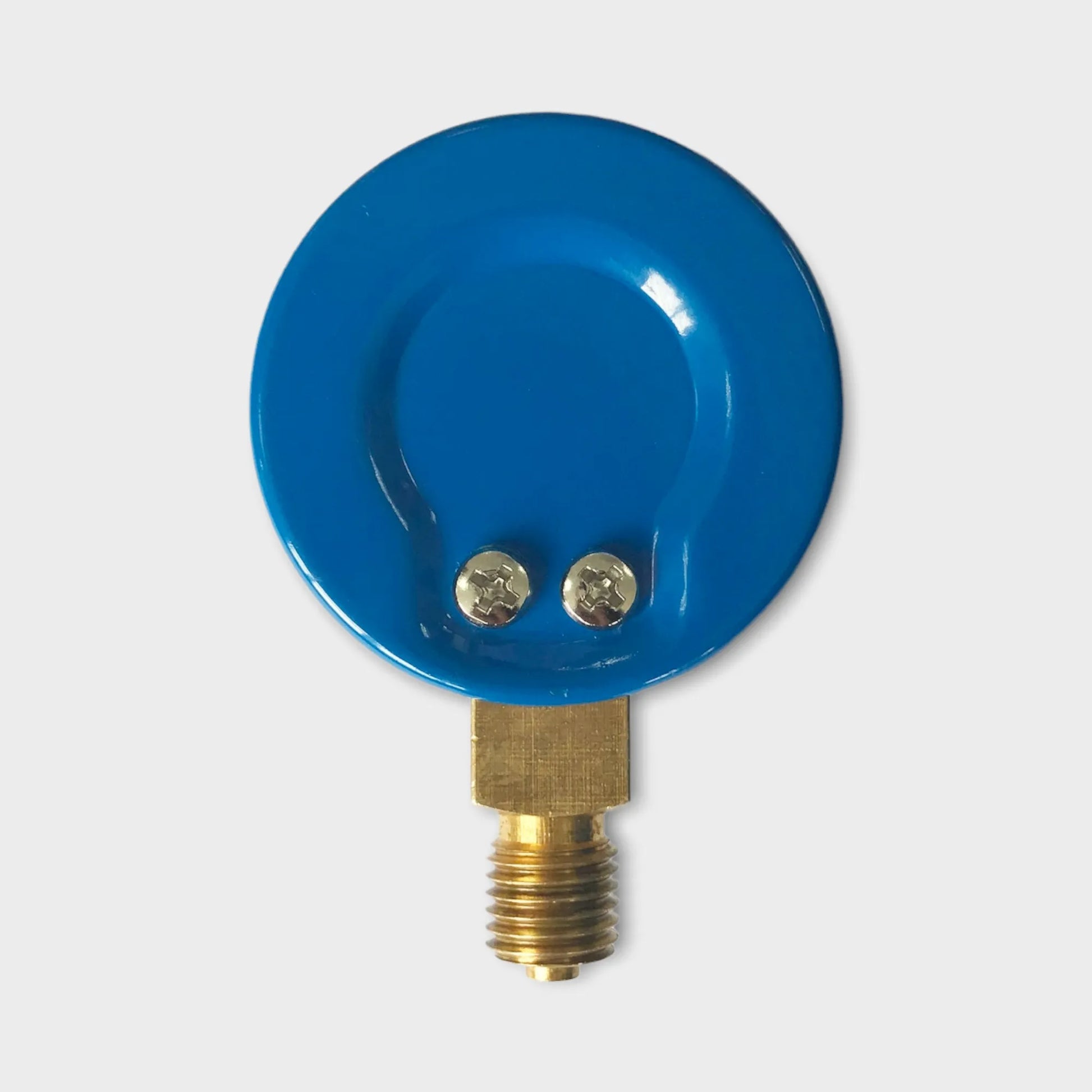

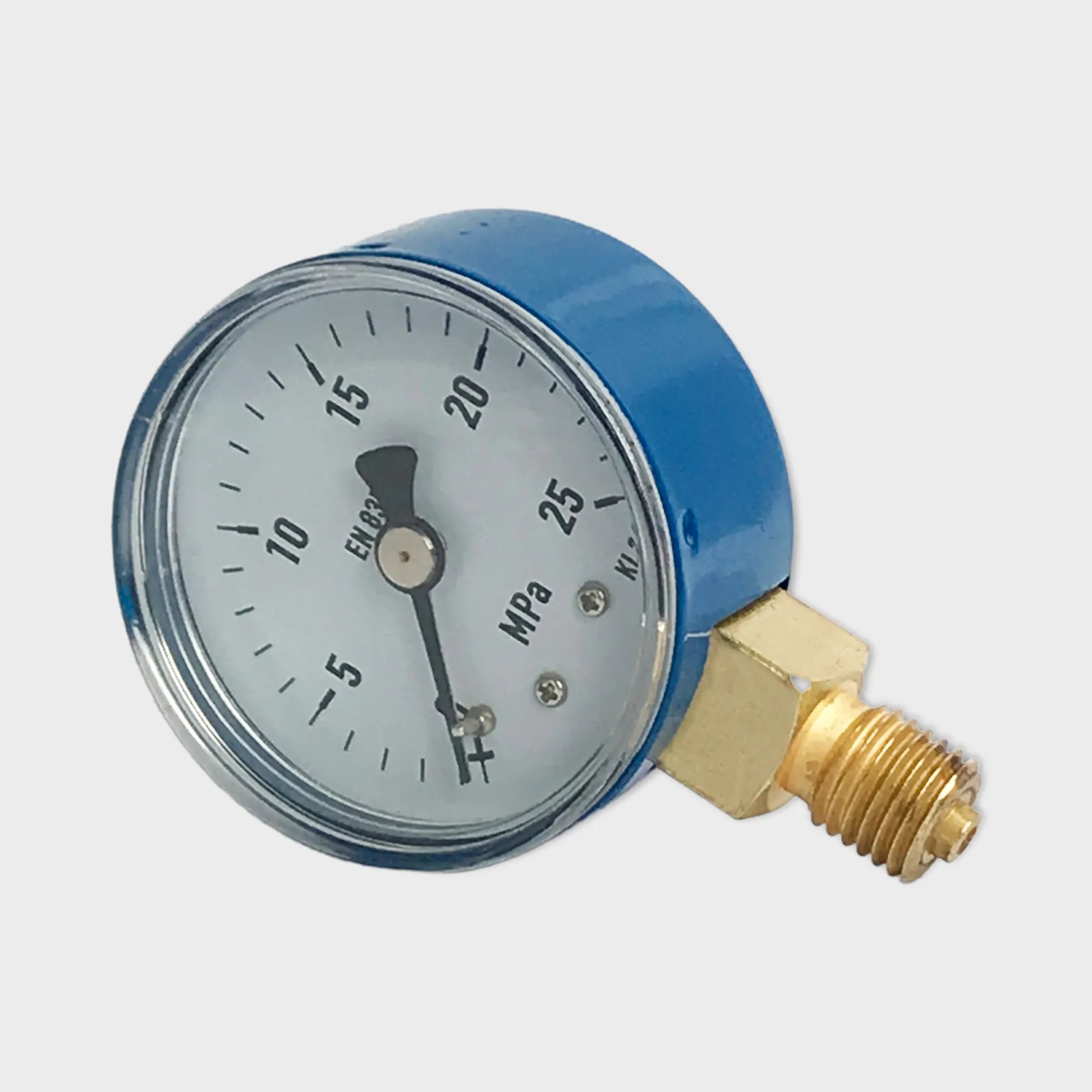

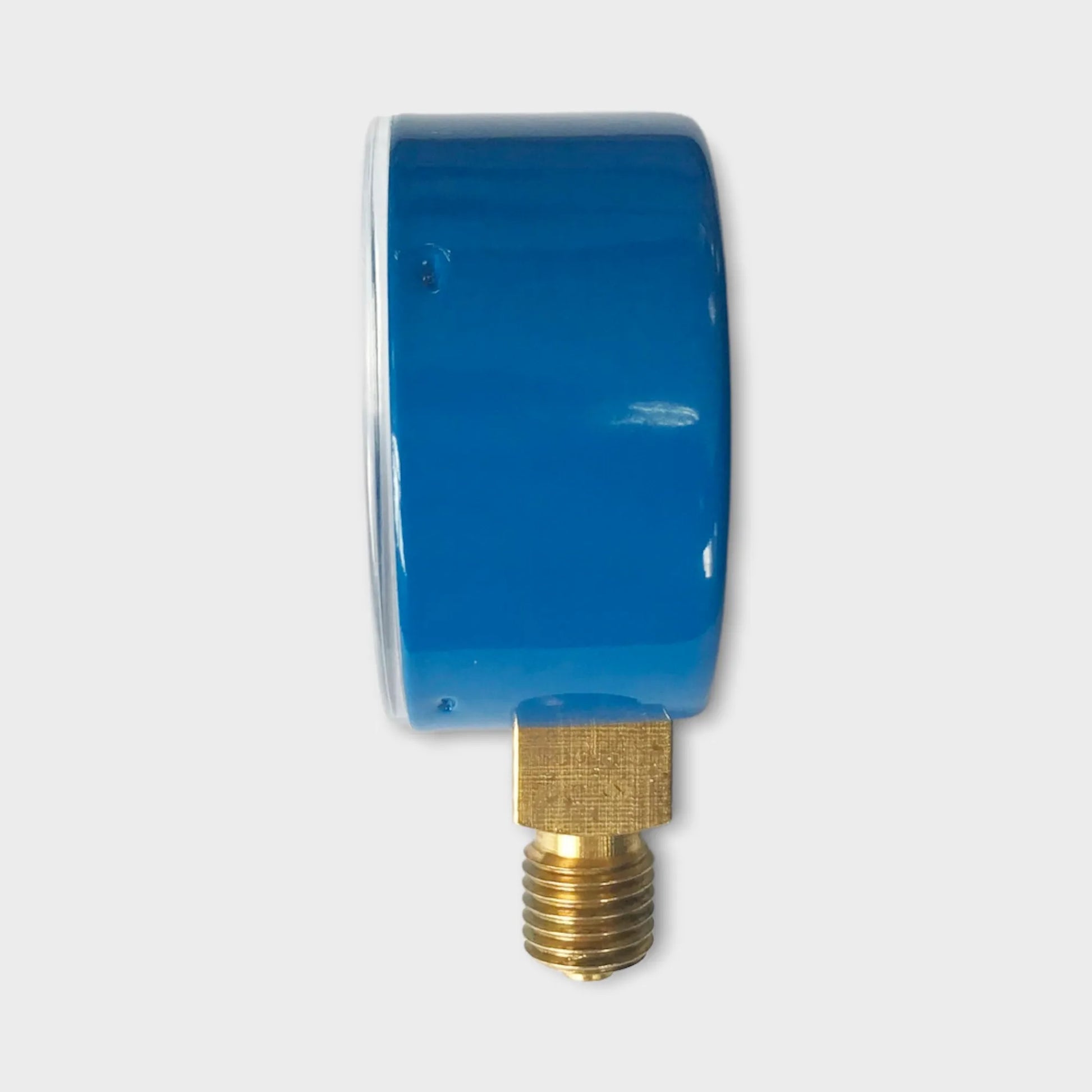

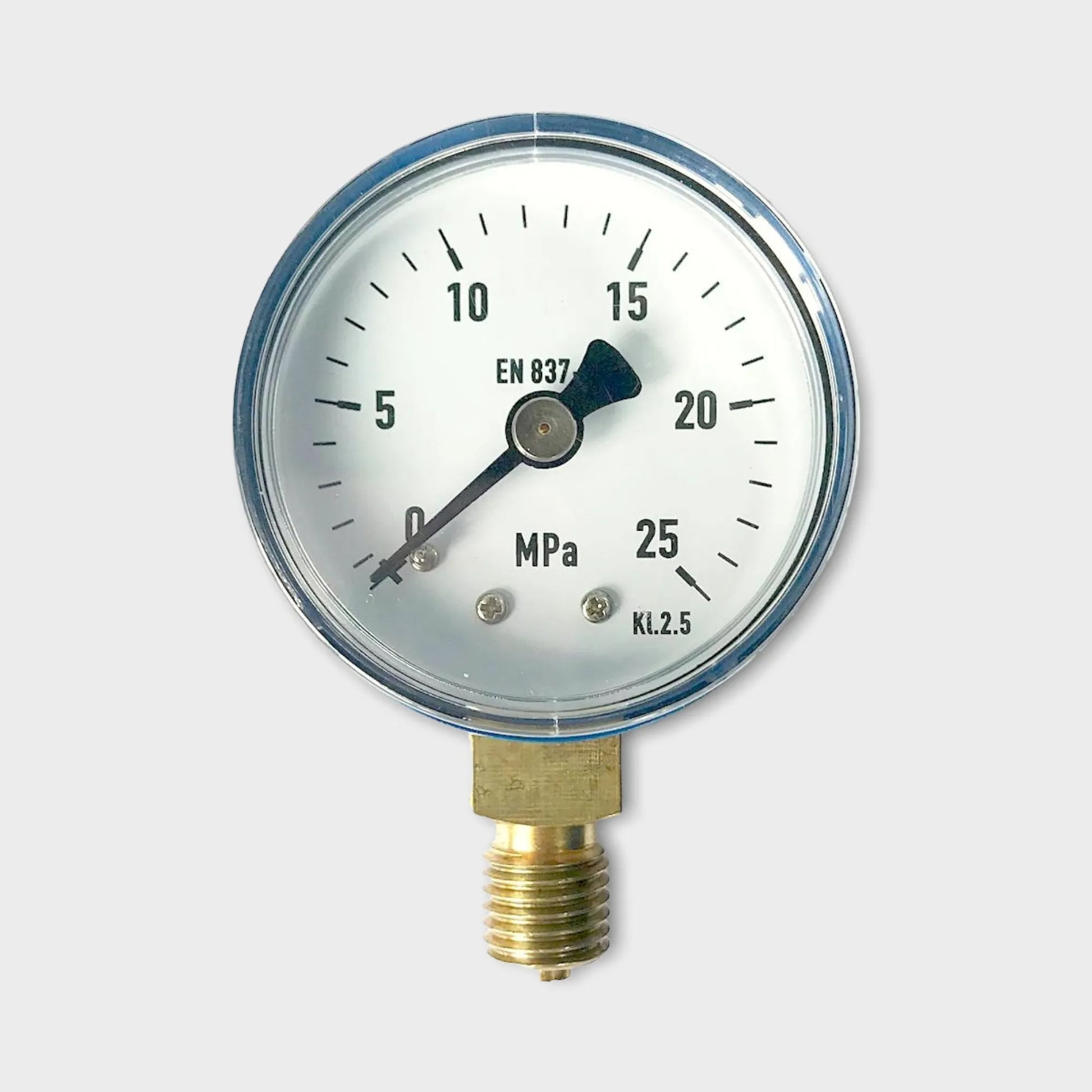

Hydraulic Pressure Gauge Set Blue Painted Steel Case 25 Mpa

Hydraulic Pressure Gauge Set Blue Painted Steel Case 25 Mpa

Upgrade your hydraulic system monitoring with our Hydraulic Pressure Gauge Set in a striking blue painted steel case. Designed to withstand tough conditions while providing accurate pressure readings, this gauge set is a dependable choice for your hydraulic applications.



Key Features:



1. Robust Steel Case: The blue painted steel case not only adds a touch of style but also offers excellent durability, ensuring the gauge can withstand demanding industrial environments.



2. Accurate Pressure Measurement: With a maximum pressure range of 25MPa, this hydraulic pressure gauge provides precise and reliable pressure readings, crucial for maintaining the optimal performance of your hydraulic systems.



3. Complete Set: This set includes all the components you need for installation, making it a convenient choice. It typically includes the gauge, a pressure port, and fittings, ensuring a hassle-free setup.



4. Clear and Easy-to-Read Dial: The gauge features a large, easy-to-read dial with clearly marked graduations, making it simple to monitor pressure values at a glance.



5. Versatile Application: Suitable for a wide range of hydraulic systems, including heavy machinery, construction equipment, and industrial manufacturing processes, ensuring your systems operate at their best.



6. Built to Last: Crafted from high-quality materials and precision engineering, this hydraulic pressure gauge is built for long-term use, even in demanding environments.







Applications:



- Hydraulic Machinery

- Heavy Equipment

- Manufacturing Processes

- Construction Machinery

- Industrial Hydraulics

- And More



Elevate your hydraulic system's performance with our Hydraulic Pressure Gauge Set. With its rugged construction, accurate readings, and complete set for easy installation, it's the ideal choice for industries and applications where hydraulic pressure monitoring is critical.



Invest in precision, durability, and reliability. Contact us today to order your Hydraulic Pressure Gauge Set in the stylish blue painted steel case.

Specifications:

Dial Size 50mm
Case material Blue painted steel
Wetted parts Copper alloy
Mount Lower
Connection 1/8 1/4 PT, NPT, G... M10*1
Custom options

Other pressure connections
Custom dial layout
Surface mounting flange
Mounting bracket
Other pressure scales available. bar, kPa, MPa, kg/cm² and dual scales

View full details
pressure vessels with vacuum pressure gauges on them

Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering

  • Special features

    Reliable and cost-effective

    Design per EN 837-1

    Nominal size 40, 50, 63, 80, 100 and 160

    Scale ranges up to 0 ... 400 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
