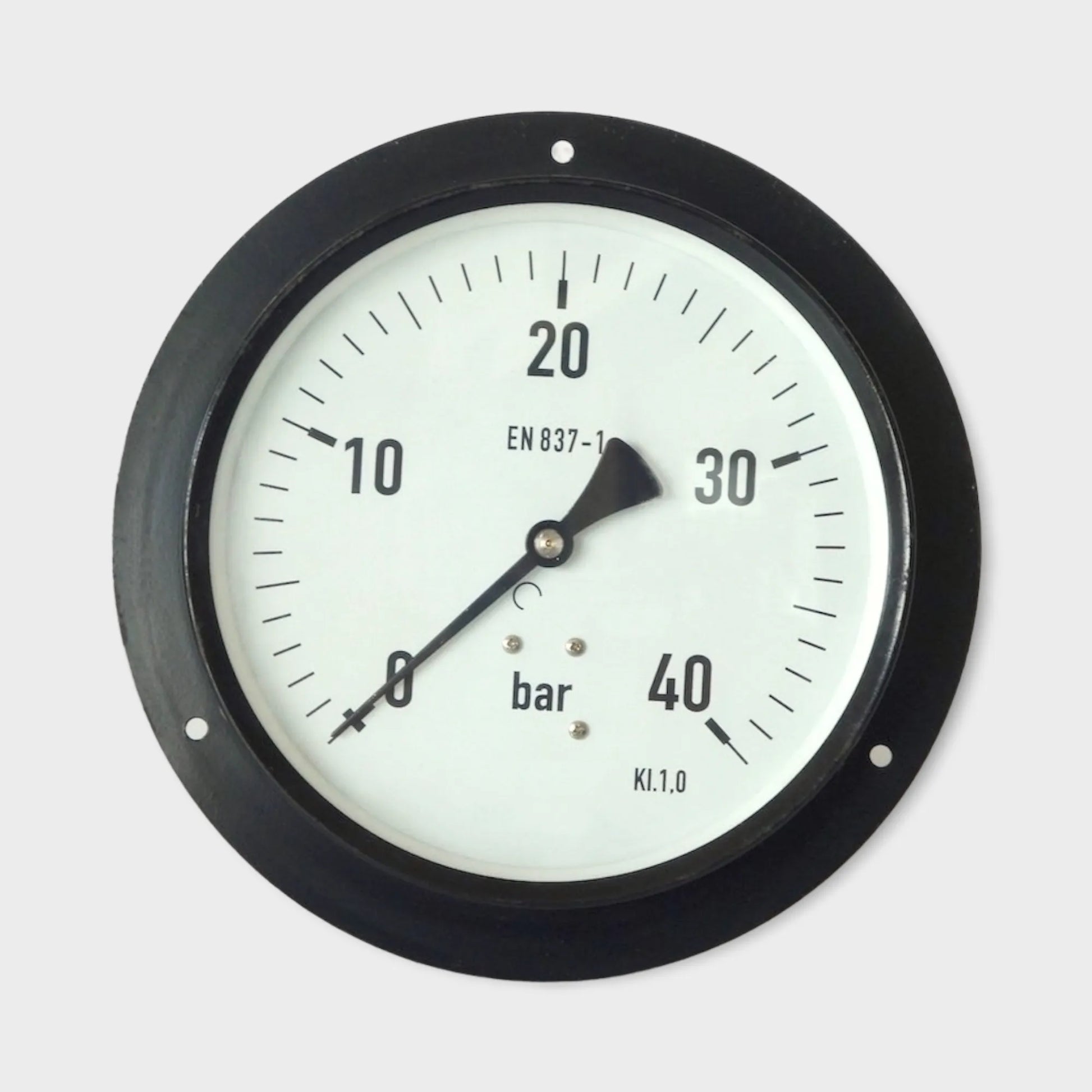

Industrial Pressure Gauge 100mm Dial Surface Mount 40 Bar

Industrial Pressure Gauge 100mm Dial Surface Mount 40 Bar

Nominal Size
Pressure Range

The product "Industrial Pressure Gauge 100mm Dial Surface Mount 40 Bar" is a specific type of pressure measuring instrument designed for industrial applications. Let's break down its key features and characteristics:

Product Name: Industrial Pressure Gauge 100mm Dial Surface Mount 40 Bar

1. Gauge Type: This is an industrial pressure gauge, indicating that it is designed for use in industrial settings where accurate pressure measurement is essential for process control, monitoring, and safety.

2. Dial Size: The gauge features a large 100mm diameter dial. The size of the dial determines the readability of the pressure values displayed on the gauge.

3. Surface Mount: The gauge is designed for surface mounting. This means it can be securely mounted on a flat surface or panel using appropriate mounting hardware.

4. Pressure Range: The gauge is calibrated to measure pressures up to 40 bar. The "bar" is a unit of pressure commonly used in various industrial applications.

5. Applications: This type of industrial pressure gauge is suitable for a wide range of applications in industrial environments, including:

- Manufacturing processes

- Hydraulic systems

- Pneumatic systems

- Oil and gas equipment

- Chemical processing

- HVAC systems

- Power generation

- Water treatment plants


- Large Dial Size: The 100mm dial size provides clear and easy-to-read pressure values, even from a distance.

- Surface Mount Design: The surface mount design allows for secure installation on panels or other surfaces.

- High Pressure Range: The gauge can accurately measure pressures up to 40 bar, making it suitable for a variety of high-pressure applications.


- Pressure Range: Ensure that the pressure range of the gauge matches the pressure levels you need to measure.

- Units: Confirm that the gauge's pressure units (bar, psi, kPa, etc.) match your application's requirements.

- Environmental Compatibility: Verify that the gauge's construction materials are suitable for the environmental conditions of your industrial setting.

- Calibration: Regular calibration is important to maintain the accuracy of pressure readings.

In summary, the "Industrial Pressure Gauge 100mm Dial Surface Mount 40 Bar" is a versatile pressure measuring instrument designed for industrial applications. With its large dial size, surface mount capability, and high pressure range, it is a valuable tool for accurately monitoring and controlling pressure in various industrial processes and systems.

Dial Size 100mm
Case material Black steel
Wetted parts Brass

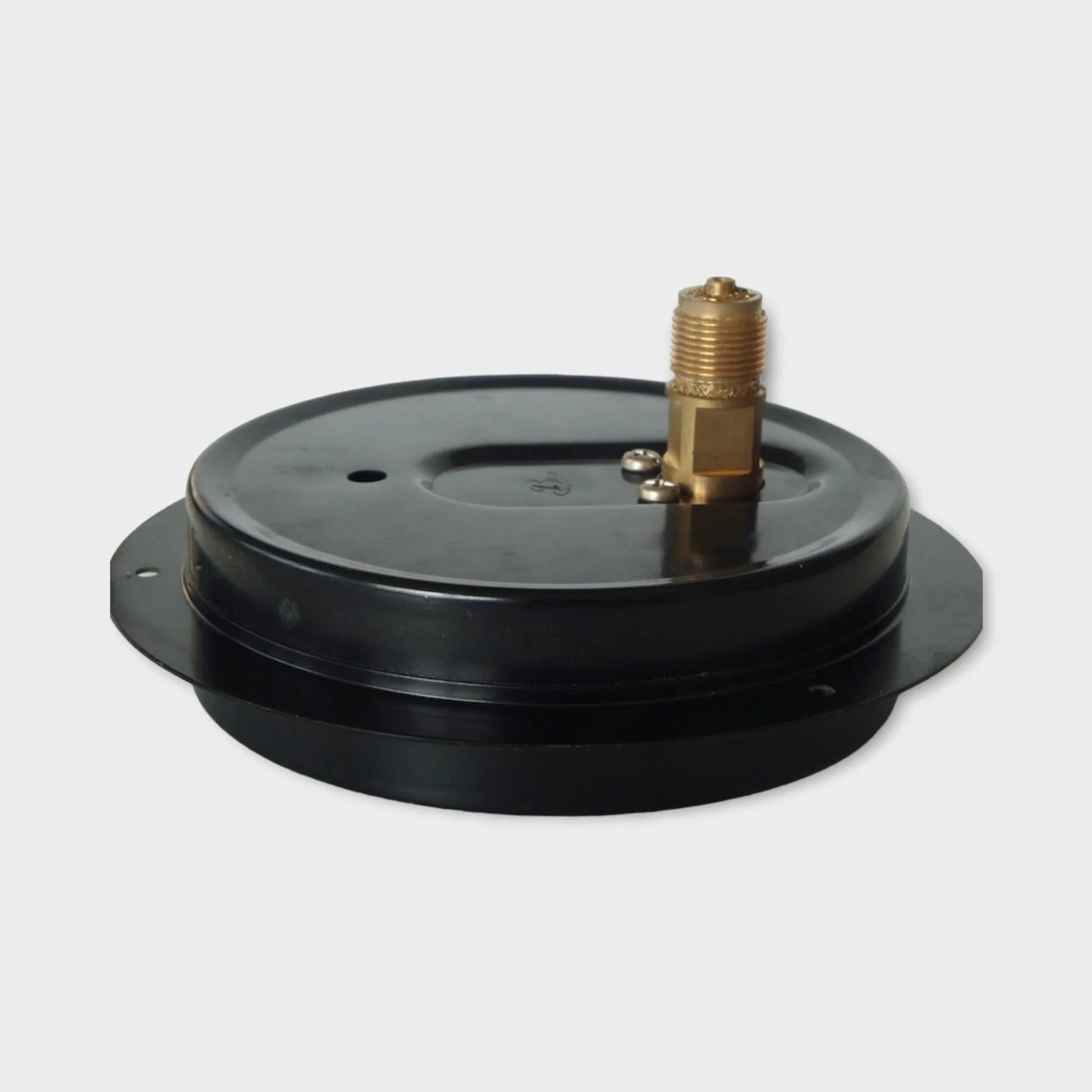

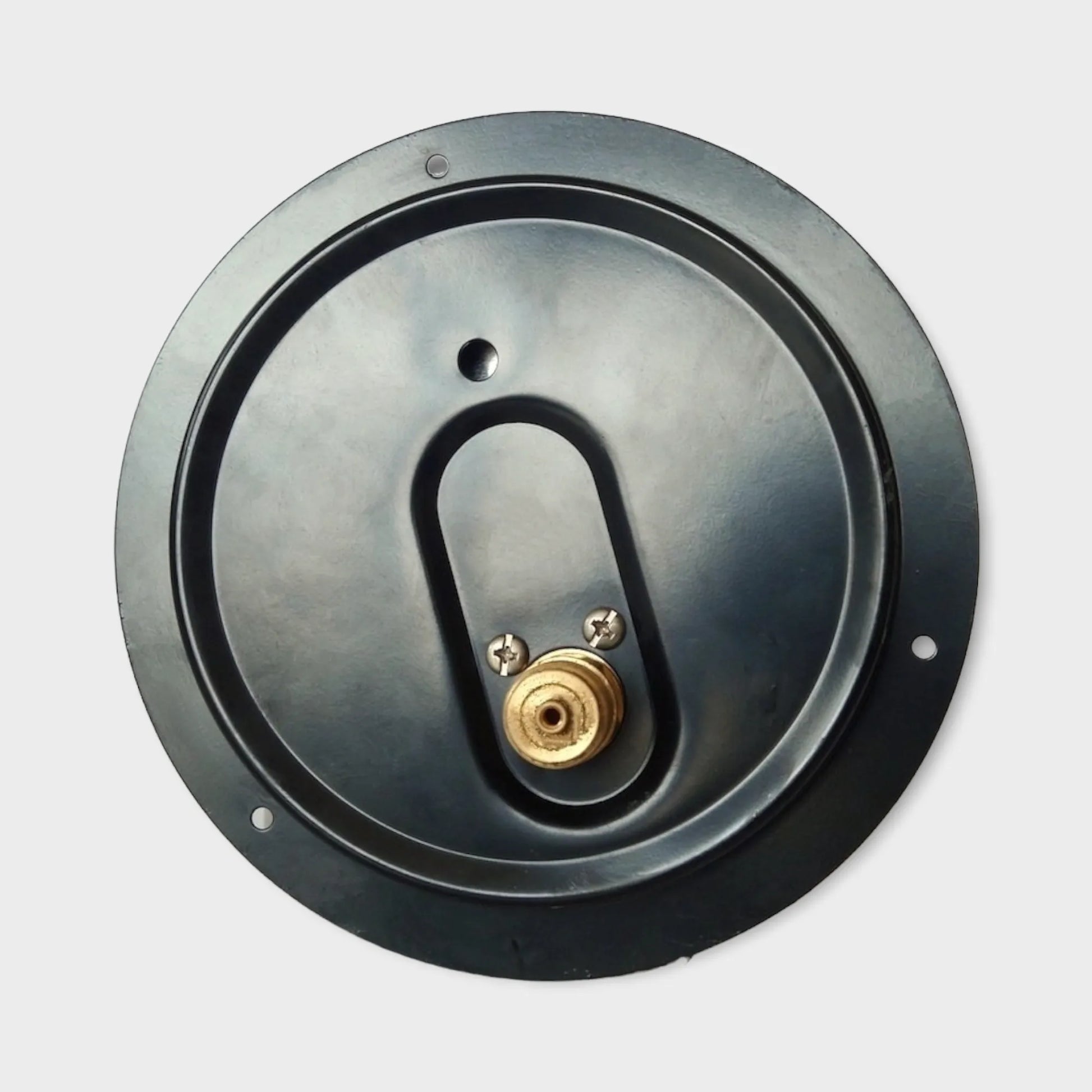

Mount Lower back
Connection 1/2 PT, NPT, G... M20*1.5
Liquid None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
pressure vessels with vacuum pressure gauges on them


For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.


Heating and air-conditioning technology

Medical engineering

  • Special features

    Reliable and cost-effective

    Design per EN 837-1

    Nominal size 40, 50, 63, 80, 100 and 160

    Scale ranges up to 0 ... 400 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
