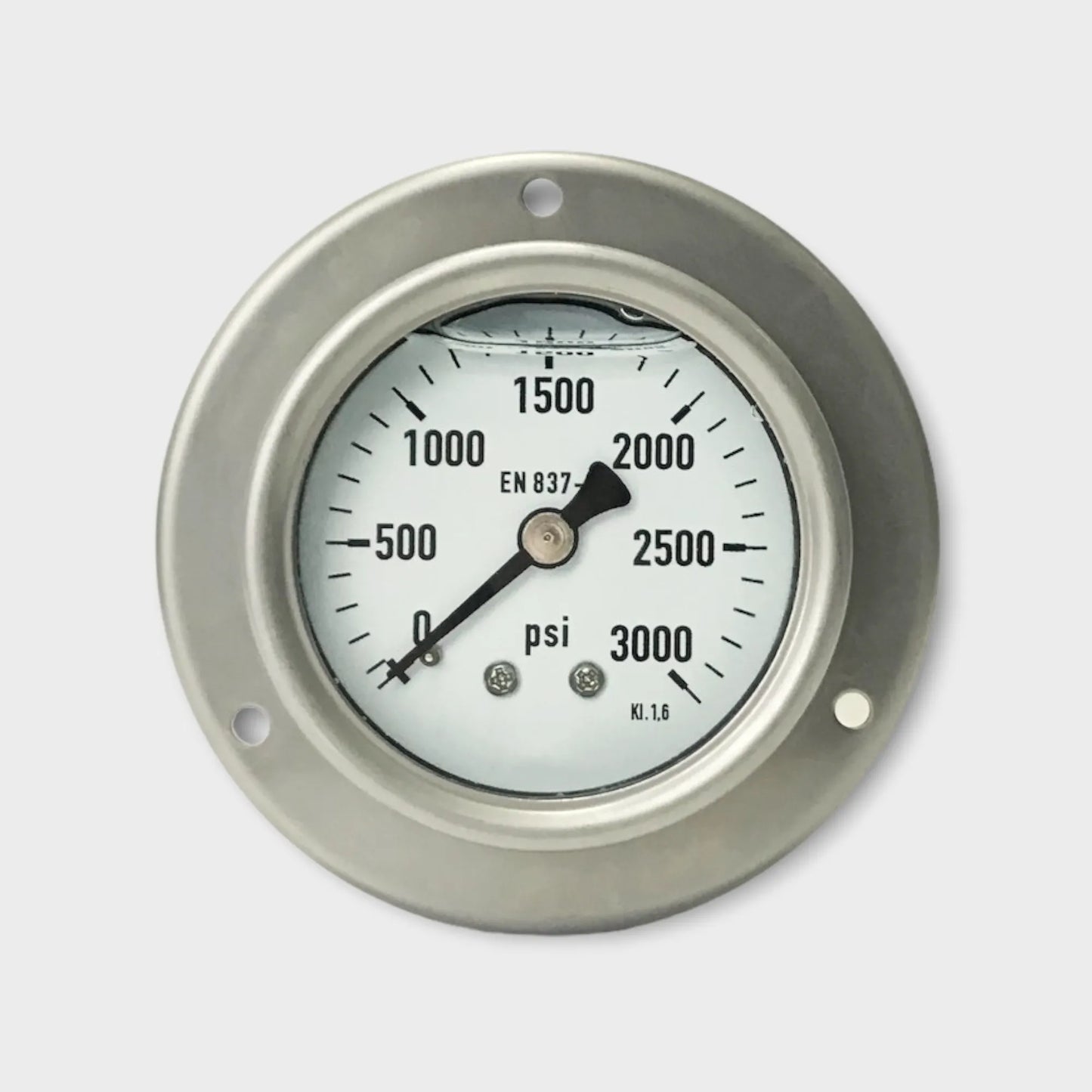

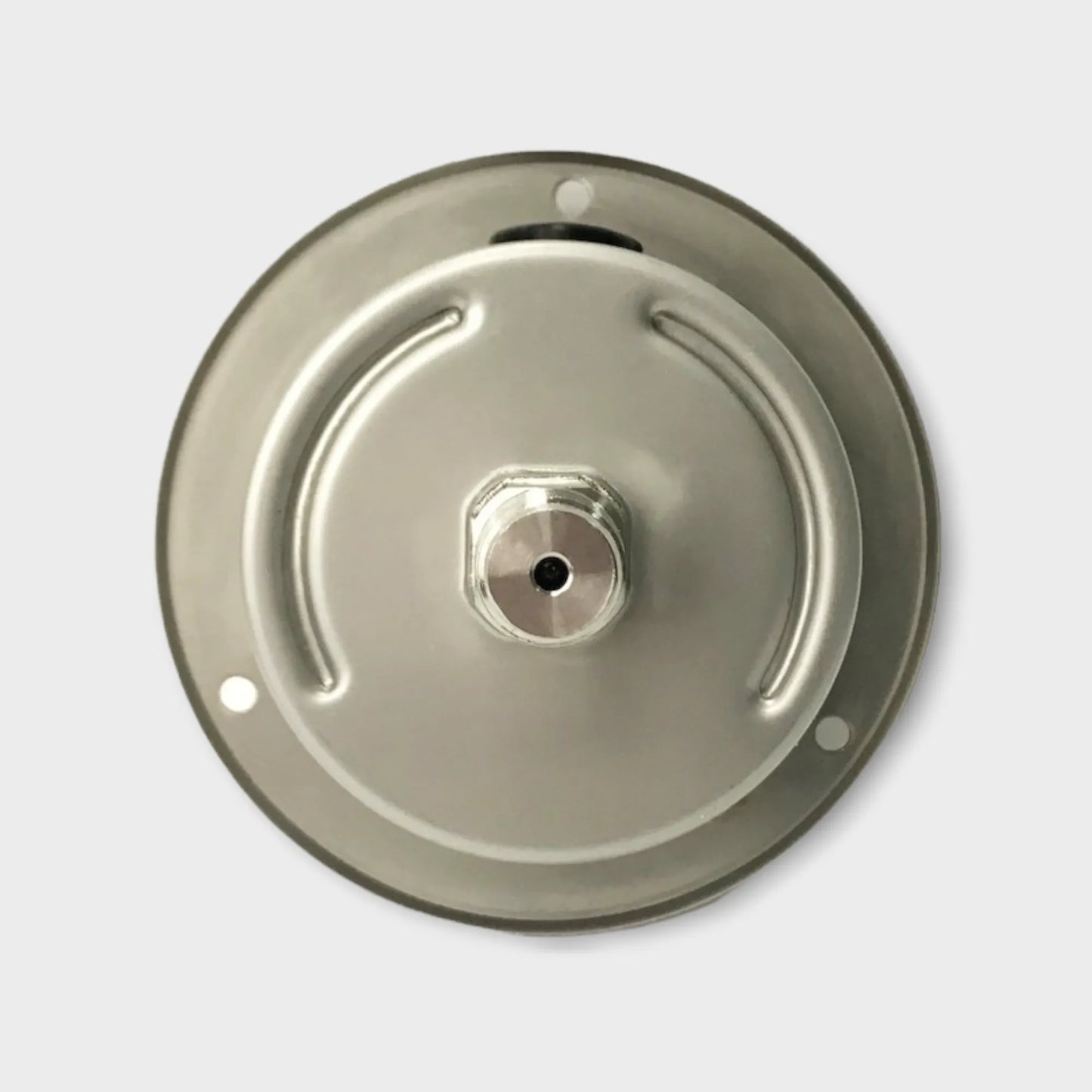

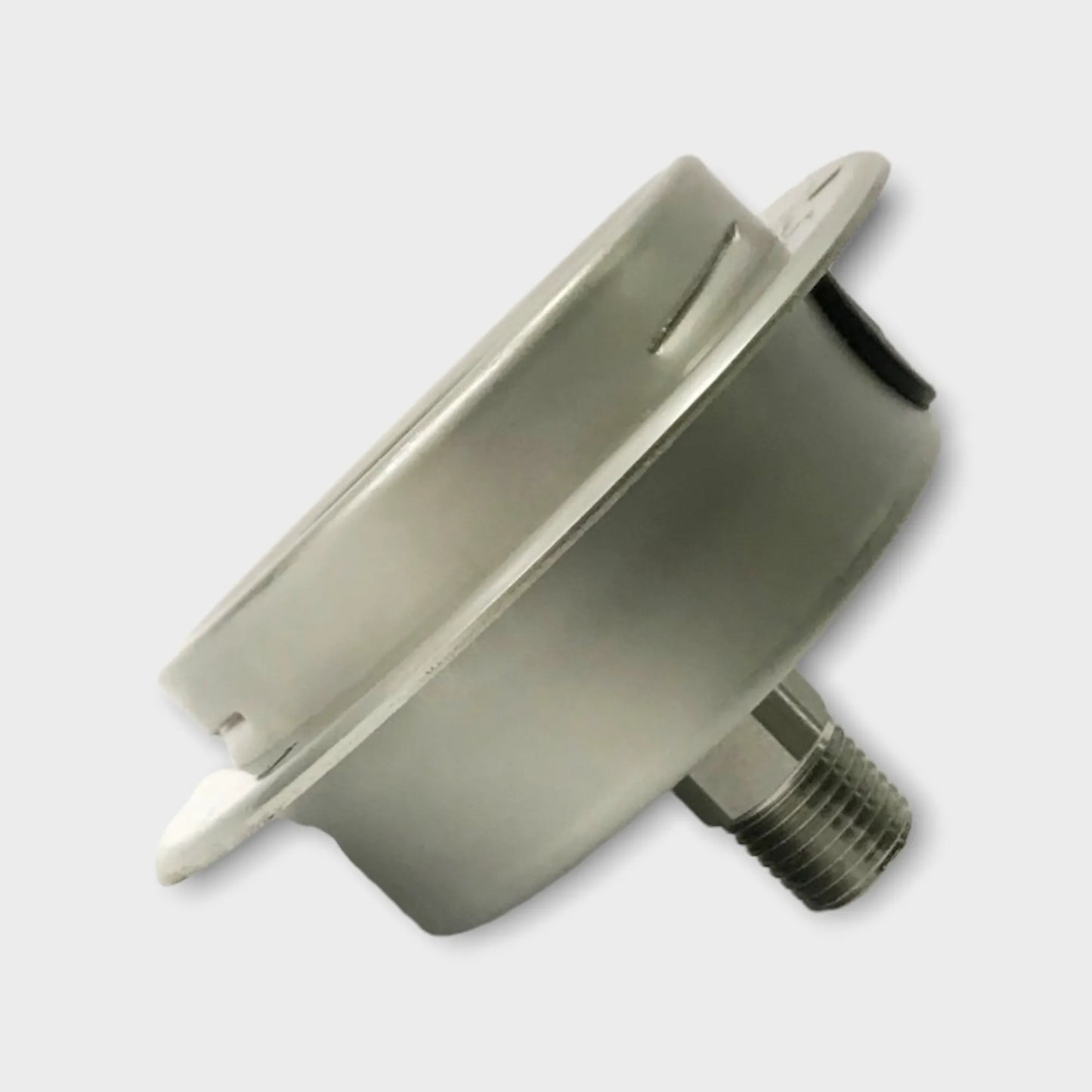

Panel Mount Hydraulic Pressure Gauge Glycerin Filled 3000 psi

Panel Mount Hydraulic Pressure Gauge Glycerin Filled 3000 psi

Introducing our Panel Mount Hydraulic Pressure Gauge, Glycerin Filled, with a maximum pressure rating of 3000 psi. This gauge is specifically designed for hydraulic systems, offering accurate and reliable pressure measurements while minimizing the effects of vibration and pulsation.

Product Description:

Our Panel Mount Hydraulic Pressure Gauge, Glycerin Filled, rated for up to 3000 psi, is a precision instrument engineered to provide dependable pressure measurements in hydraulic systems. The glycerin filling within the gauge dampens vibrations and reduces wear and tear, ensuring long-term performance and accuracy.

Key Features:

1. Glycerin Filled: The glycerin filling in this gauge acts as a damping medium, absorbing vibrations and pulsations in the hydraulic system. This ensures more stable and accurate pressure readings, even in dynamic environments.

2. 3000 psi Maximum Pressure Rating: With a maximum pressure rating of 3000 psi, this gauge is well-suited for hydraulic applications across various industries, from heavy machinery to industrial equipment.

3. Panel Mount Design: The gauge is designed for panel mounting, allowing for easy integration into control panels or equipment enclosures. Its user-friendly design simplifies installation and monitoring.

4. Precision Hydraulic Pressure Measurement: This gauge excels in providing precise hydraulic pressure readings, critical for maintaining the efficiency and safety of hydraulic systems.

5. Easy-to-Read Dial: The gauge features a clear and easy-to-read dial with distinct markings, ensuring that pressure readings can be quickly and accurately assessed.

6. Durability and Low Maintenance: Constructed with durability in mind, this gauge is built to withstand the rigors of hydraulic system operation. The glycerin filling also reduces internal wear and prolongs the gauge's service life.

7. Versatile Applications: Whether you need to monitor hydraulic pressure in construction equipment, manufacturing machinery, or other hydraulic systems, this gauge is versatile and reliable.

8. Customizable Options: We offer customization options to tailor the gauge to your specific pressure range and other requirements, ensuring it meets the precise needs of your hydraulic application.

9. Compliance and Certification: Our Panel Mount Hydraulic Pressure Gauge complies with industry standards and can be certified for compliance with specific regulations or standards as needed.

In summary, our Panel Mount Hydraulic Pressure Gauge, Glycerin Filled, rated for up to 3000 psi, is the perfect instrument for precise hydraulic pressure measurement in demanding industrial applications. Its glycerin filling provides added stability and accuracy, making it a trusted choice for professionals seeking to maintain the efficiency and safety of their hydraulic systems. Trust in the quality and performance of our Panel Mount Hydraulic Pressure Gauge for your hydraulic pressure monitoring needs.

Dial Size 63mm
Case material Stainless steel
Wetted parts Stainless steel
Mount Flange
Connection 1/4 PT, NPT, G... M14*1.5
Liquid Glycerin, Silicone oil
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
stainless steel pressure gauges, flowmeters and ball valves are working on the piping system


For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

  • Special features

    Excellent load cycle stability and shock resistance

    Design per EN 837-1

    Completely from stainless steel

    Scale ranges up to 0 ... 1600 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
