WESEN TECHNOLOGIES

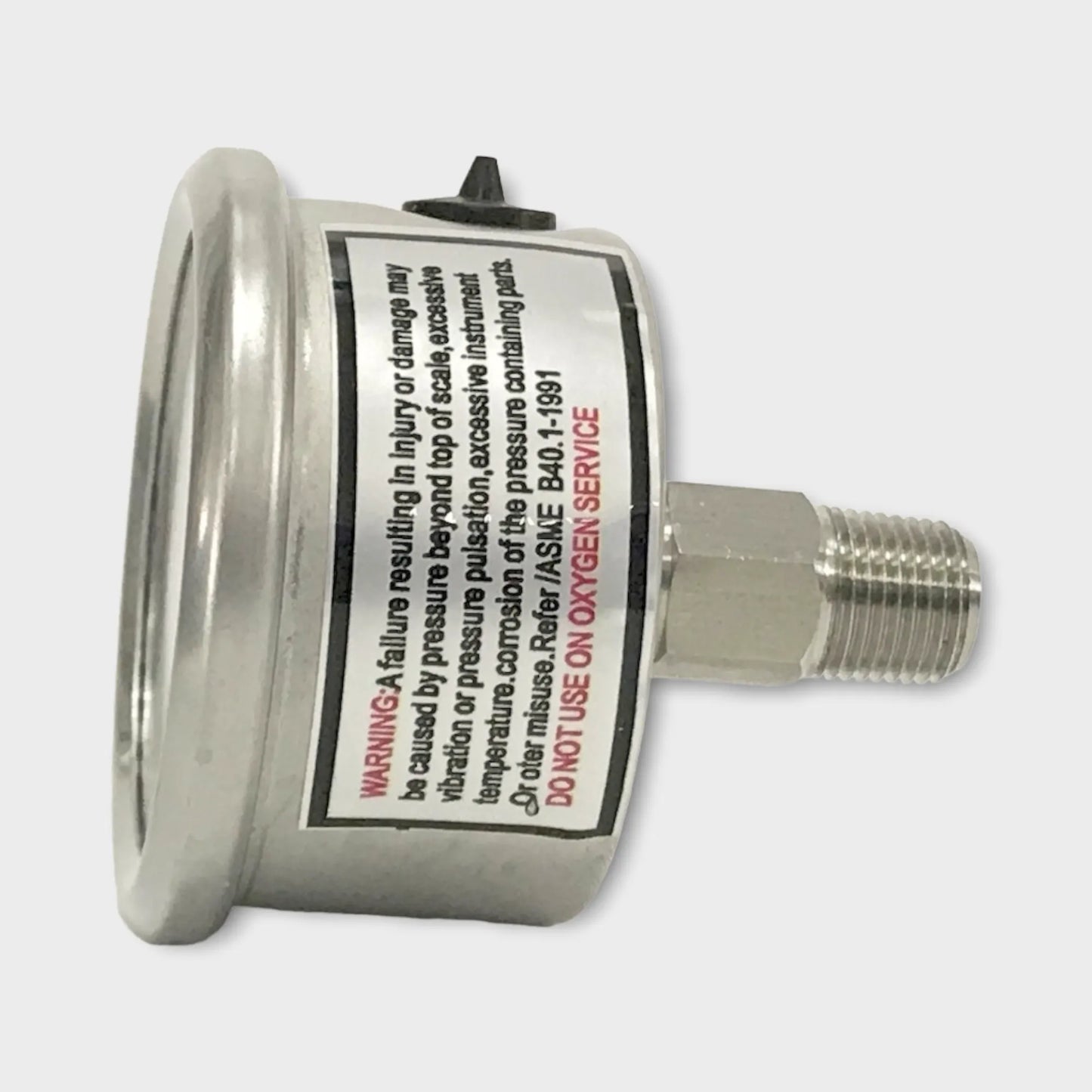

Pressure Gauge 0 to 10 Bar Center Back Mount Treble Scale SS316L

Pressure Gauge 0 to 10 Bar Center Back Mount Treble Scale SS316L

Nominal Size
Pressure Range
Scale

Introducing Our Triple-Scale SS316L Pressure Gauge 0 to 10 bar:

Accurate pressure measurement is crucial in various applications, and our Pressure Gauge ranging from 0 to 10 bar, with a center back connection and featuring a triple scale, is the ideal solution. Designed for precision and versatility, this gauge ensures that you can monitor pressure in different units with ease.

Key Features:

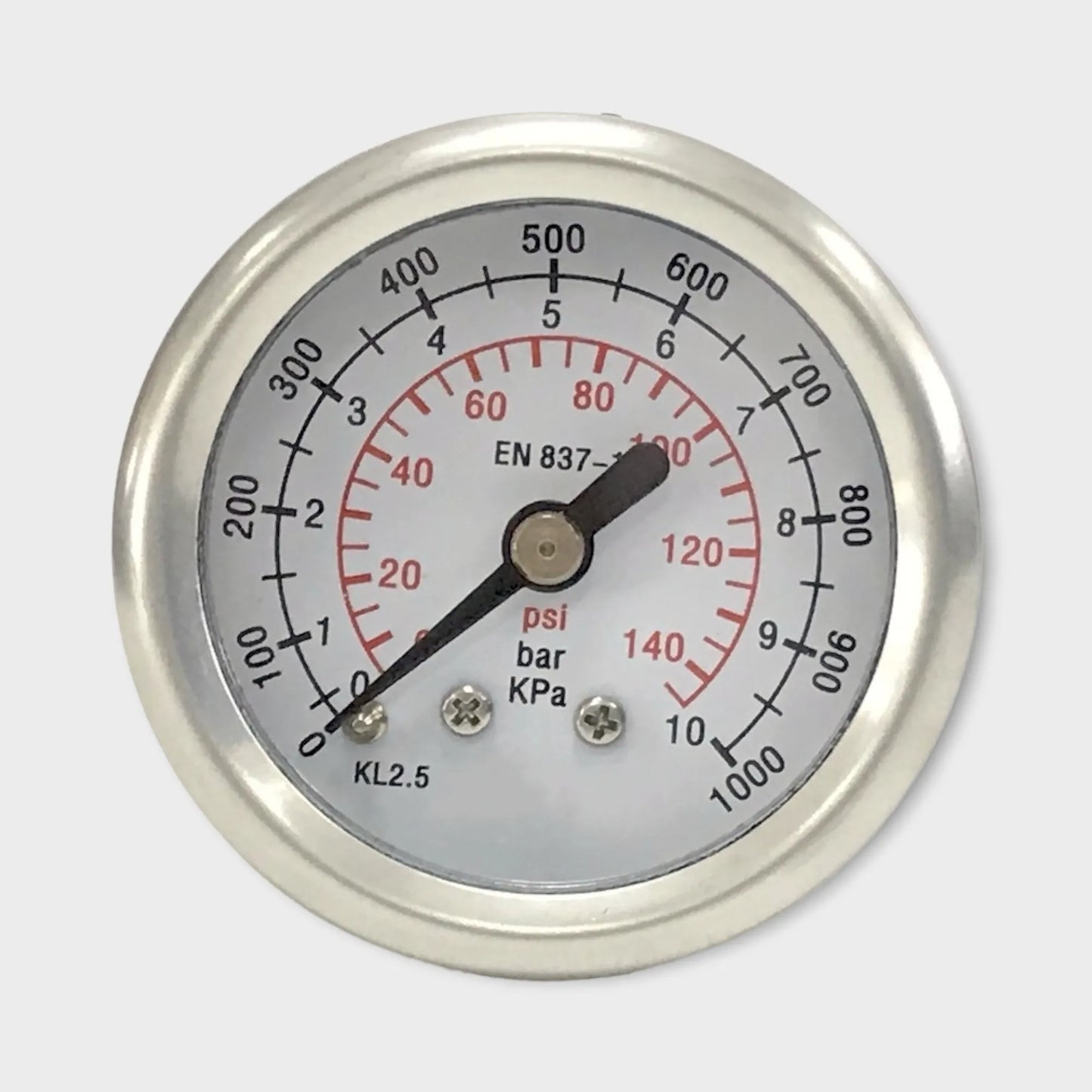

1. Triple Scale Versatility: This gauge offers triple scales, making it ideal for measuring pressure in different units. Whether you need bar, psi, or kPa, our gauge has you covered.

Specifications:

- Pressure Range: 0 to 10 Bar

- Material: SS316L Stainless Steel

- Connection: Center Back Connection

Applications:

- Industrial Machinery

- Hydraulic Systems

- Pneumatic Systems

- Process Control

- HVAC Systems

- And More

Whether you're in industrial machinery, hydraulic systems, pneumatic systems, process control, HVAC, or any application that requires precise pressure measurements in different units, our Pressure Gauge 0 to 10 bar is a versatile and reliable tool.

Invest in precision, versatility, and dependable measurements. Contact us today to order your triple-scale pressure gauge and enhance your pressure monitoring capabilities for various applications.

Dial Size 40mm
Case material Stainless steel
Wetted parts Stainless steel

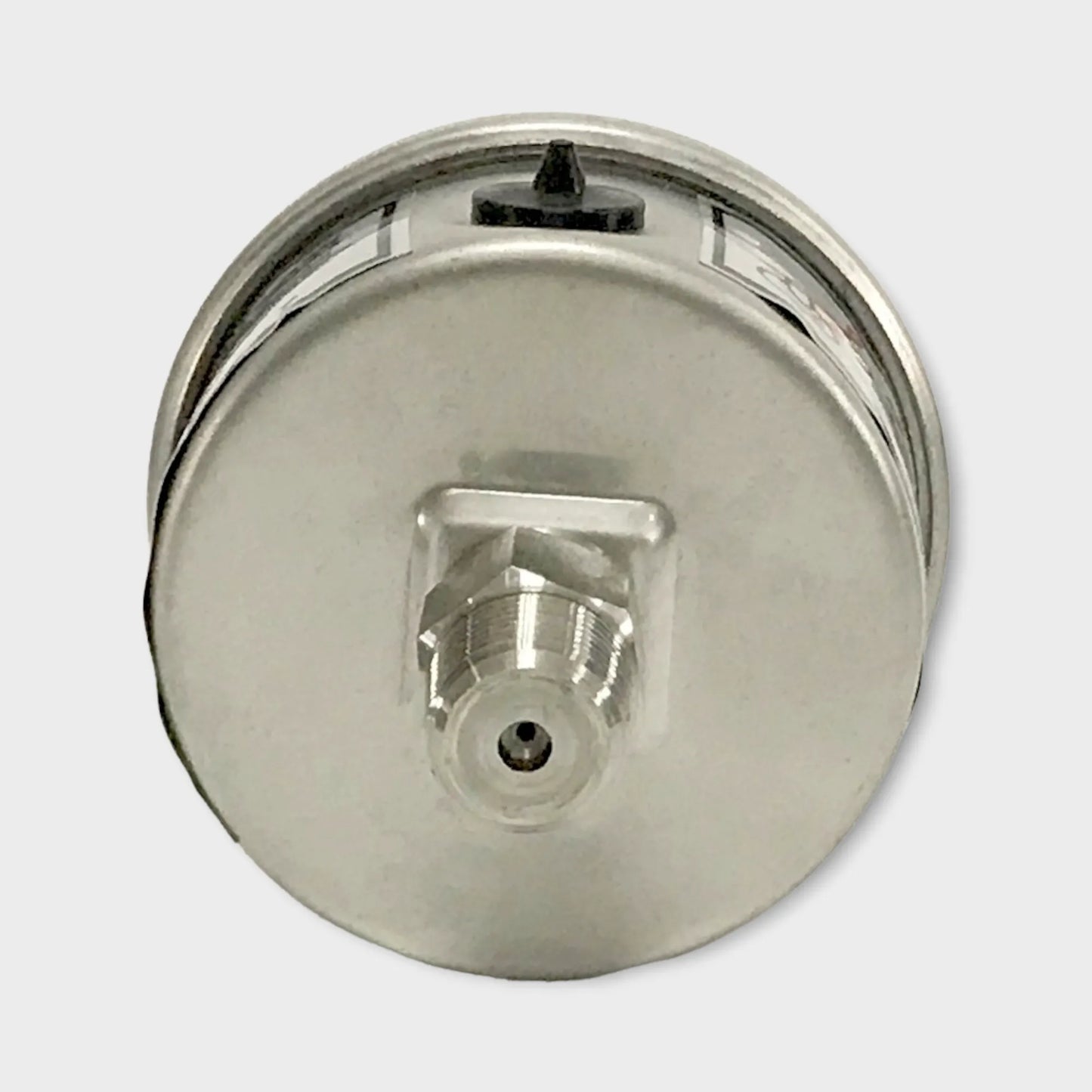

Mount Center back
Connection 1/8 PT, NPT, BSP, G... M10*1
Liquid Glycerin, Silicone oil, None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
stainless steel pressure gauges, flowmeters and ball valves are working on the piping system

Applications

For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

  • Special features

    Excellent load cycle stability and shock resistance

    Design per EN 837-1

    Completely from stainless steel

    Scale ranges up to 0 ... 1600 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
