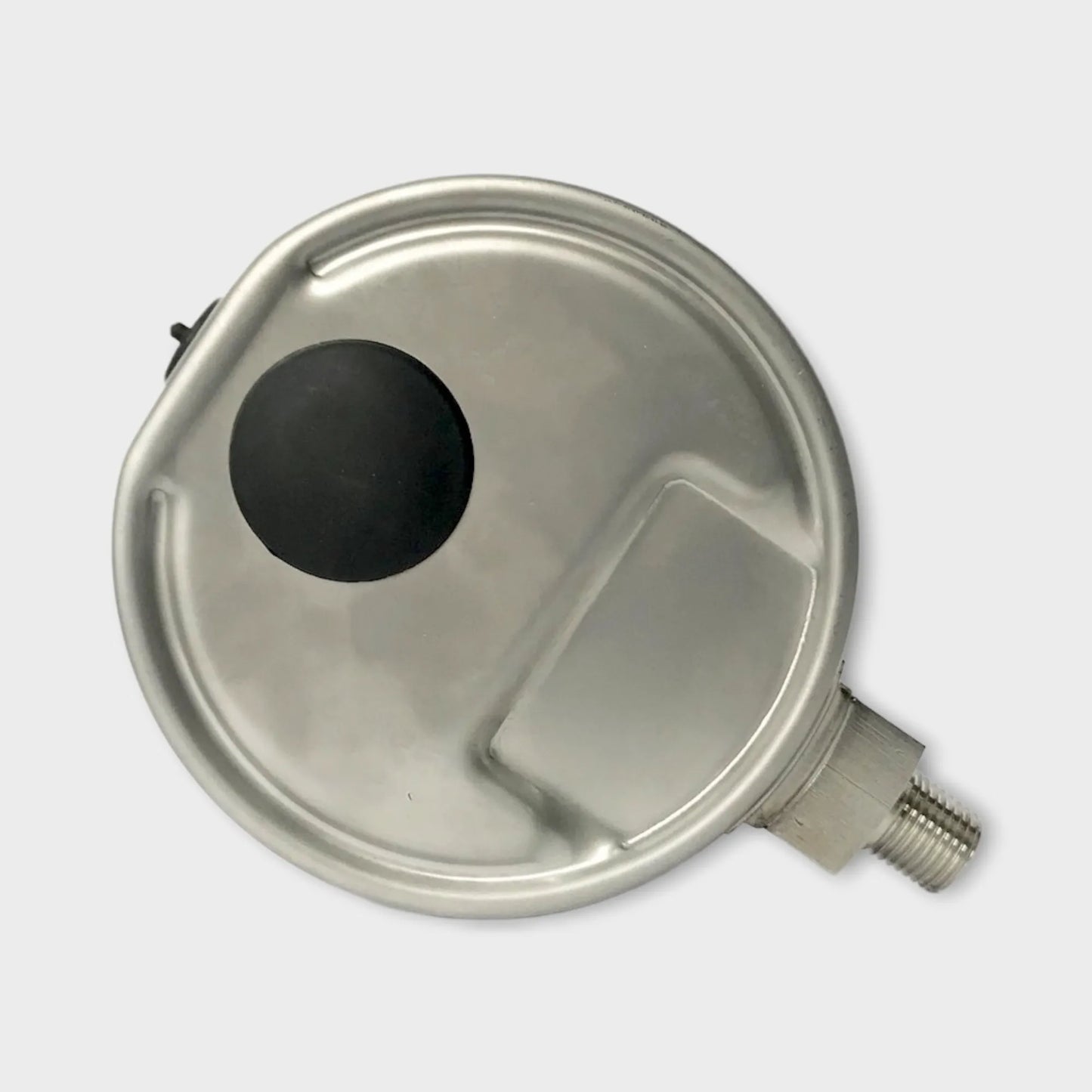

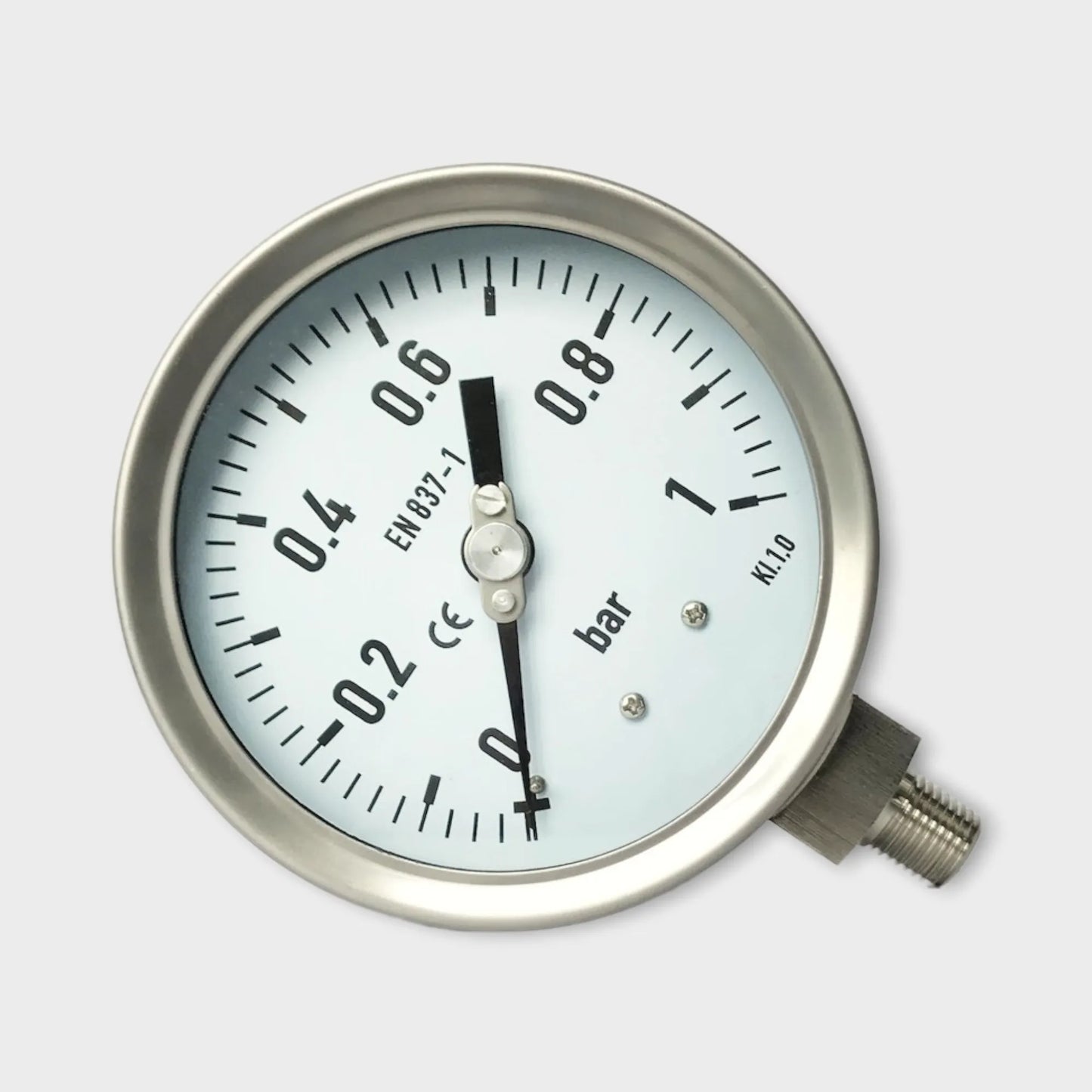

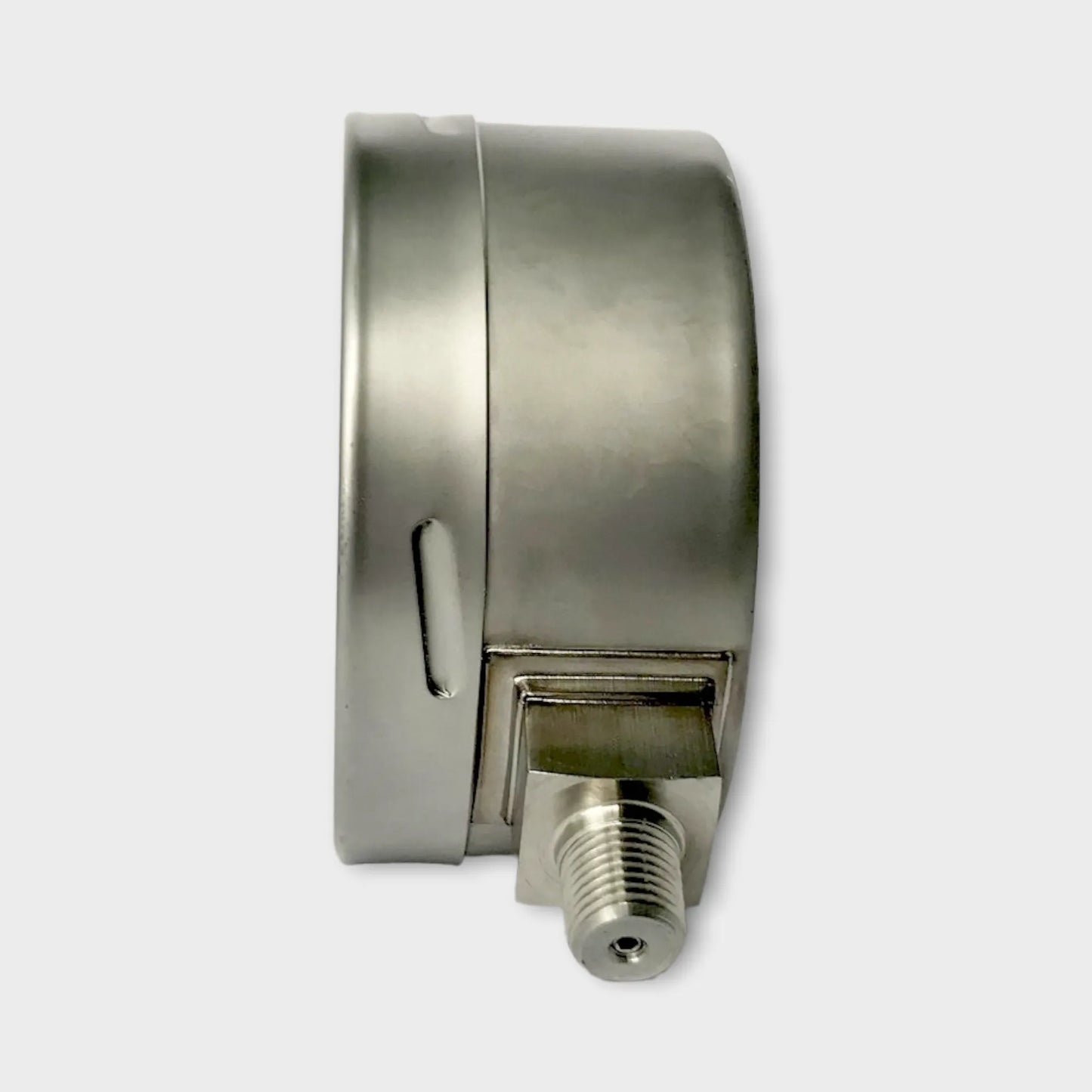

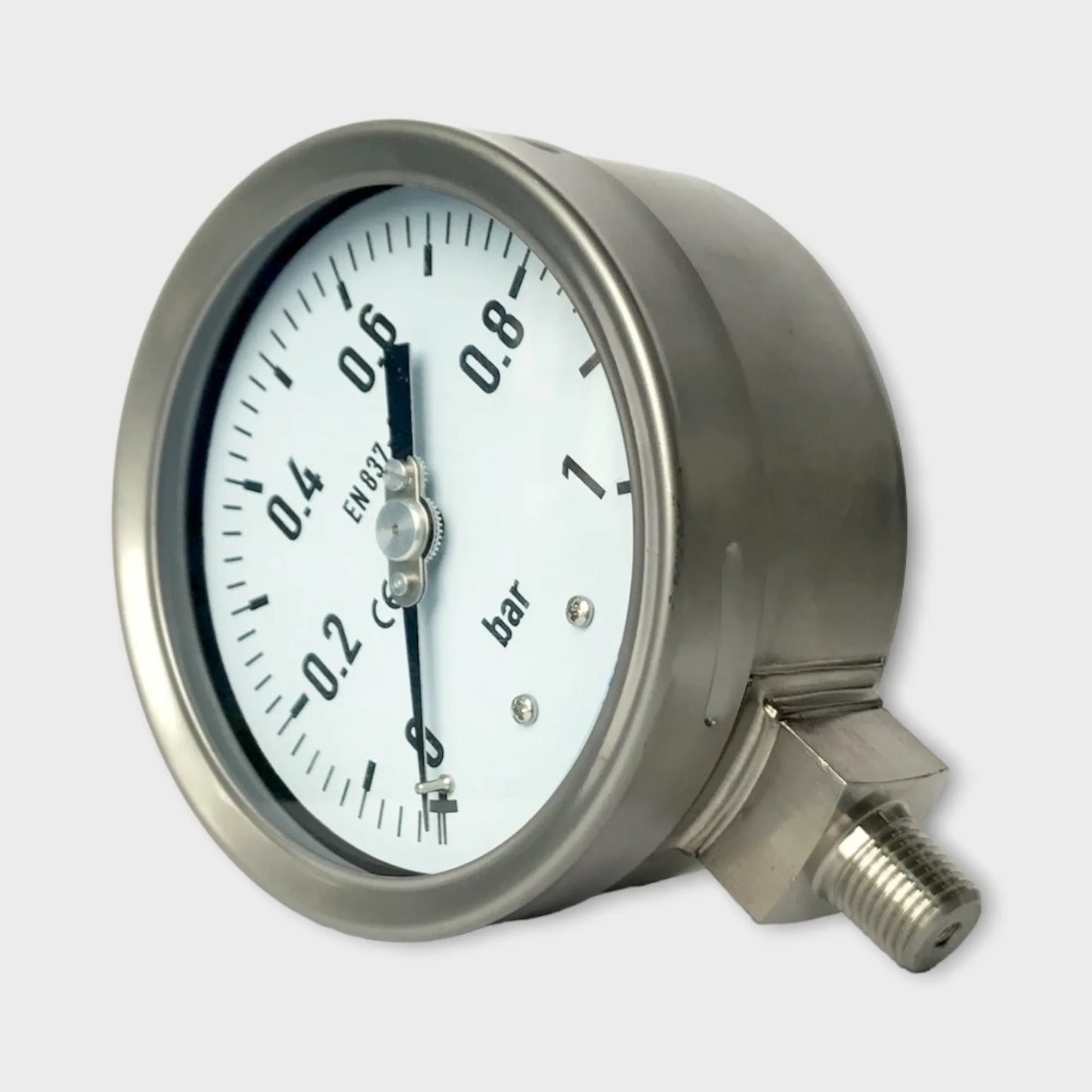

Pressure Gauge 1 Bar Bottom Mount SS316L Body with Adjustable Needle

Pressure Gauge 1 Bar Bottom Mount SS316L Body with Adjustable Needle

Nominal Size
Pressure Range

Product Description: Pressure Gauge 1 Bar Bottom Mount SS316L Body with Adjustable Needle


The Pressure Gauge 1 Bar is a specialized instrument engineered for precise pressure measurement, specifically calibrated for low-pressure applications. With a 1-bar pressure rating, a durable SS316L body, and an adjustable needle, this gauge offers the accuracy and versatility necessary for various industrial and scientific purposes.

Key Features:

1. 1 Bar Pressure Rating: This pressure gauge is designed to measure pressures up to 1 bar, making it ideal for low-pressure applications where precision pressure monitoring is required.

2. Bottom Mount Design: The gauge is configured with a bottom mount, which means the pressure inlet is located at the bottom of the gauge. This design is suitable for applications where the pressure measurement is taken from below, and it allows for convenient and direct connection to the system.

3. SS316L Body: The gauge body is constructed from SS316L material, a type of stainless steel known for its exceptional corrosion resistance and suitability for use in environments with exposure to moisture and potentially corrosive substances. This ensures the gauge's durability and reliability.

4. Adjustable Needle: The gauge is equipped with an adjustable needle pointer. This feature allows for easy calibration or setting of a reference point on the gauge's dial. It's particularly useful when you need to establish specific pressure thresholds or target values.

5. Precision Calibration: Accurate pressure measurements are essential in many applications. This gauge is precisely calibrated to ensure reliable and precise pressure readings.

6. Versatile Applications: The Pressure Gauge 1 Bar is suitable for a wide range of applications, including HVAC systems, laboratory equipment, research experiments, and more, where low-pressure monitoring is a requirement.

7. Mounting Options: The gauge is designed to offer flexible mounting options, accommodating different installation requirements.

8. Safety and Efficiency: Accurate pressure monitoring is crucial for both safety and efficiency in various industrial and scientific processes. This gauge ensures that your systems operate within safe and optimal pressure limits.

For applications that demand precise pressure measurement within a 1-bar range, the Pressure Gauge 1 Bar with a SS316L body and an adjustable needle is an excellent choice. Its durability, accuracy, and adaptability make it an essential instrument for maintaining the performance and safety of low-pressure equipment and systems. Whether you're conducting experiments in a laboratory or ensuring the proper functioning of HVAC systems, this gauge provides the reliability and accuracy you need for low-pressure measurement.

Dial Size 100mm
Case material Stainless steel
Wetted parts Stainless steel
Mount Lower
Connection 3/8 1/2 PT, NPT, G... M20*1.5
Liquid Glycerin, Silicone oil, None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
stainless steel pressure gauges, flowmeters and ball valves are working on the piping system


For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

  • Special features

    Excellent load cycle stability and shock resistance

    Design per EN 837-1

    Completely from stainless steel

    Scale ranges up to 0 ... 1600 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
