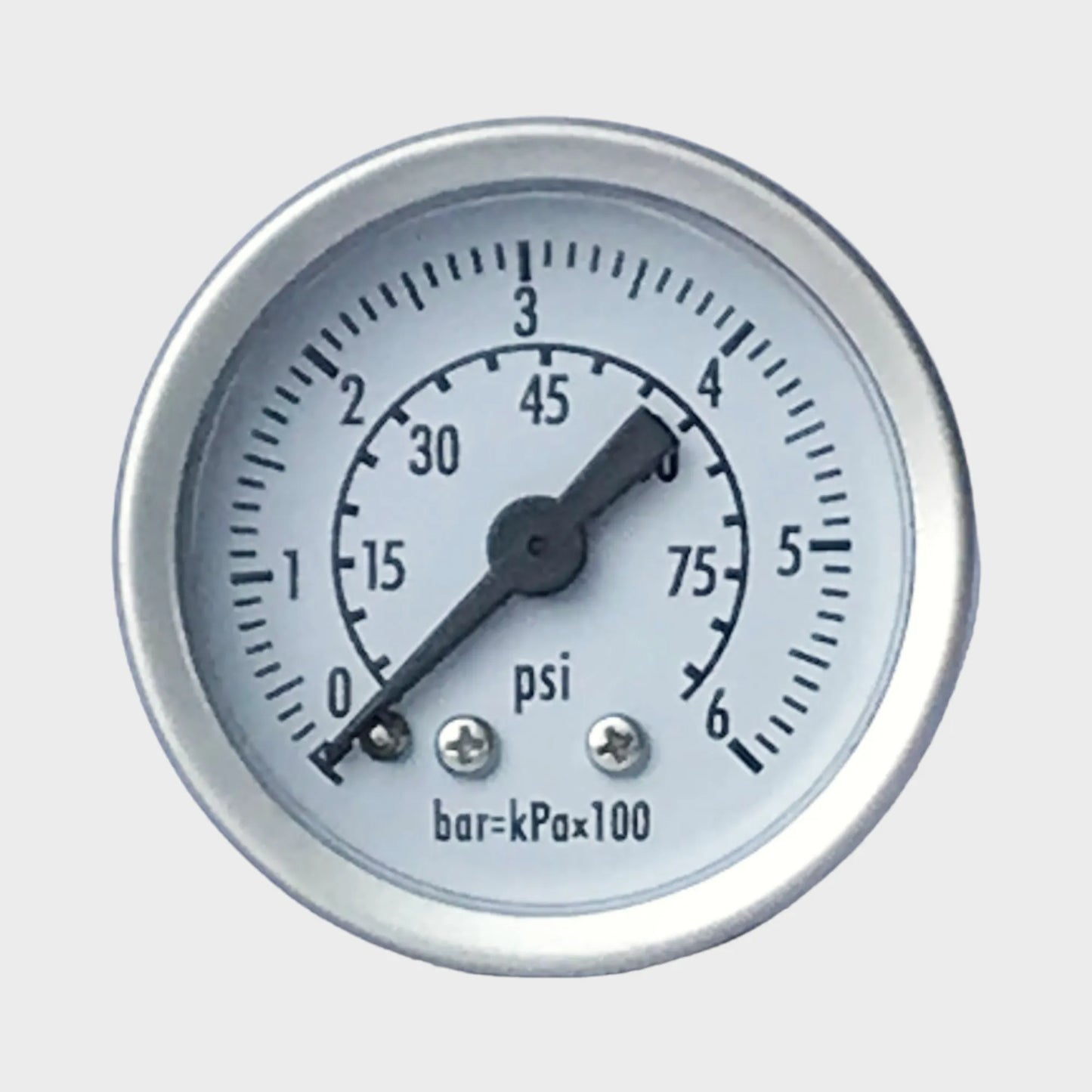

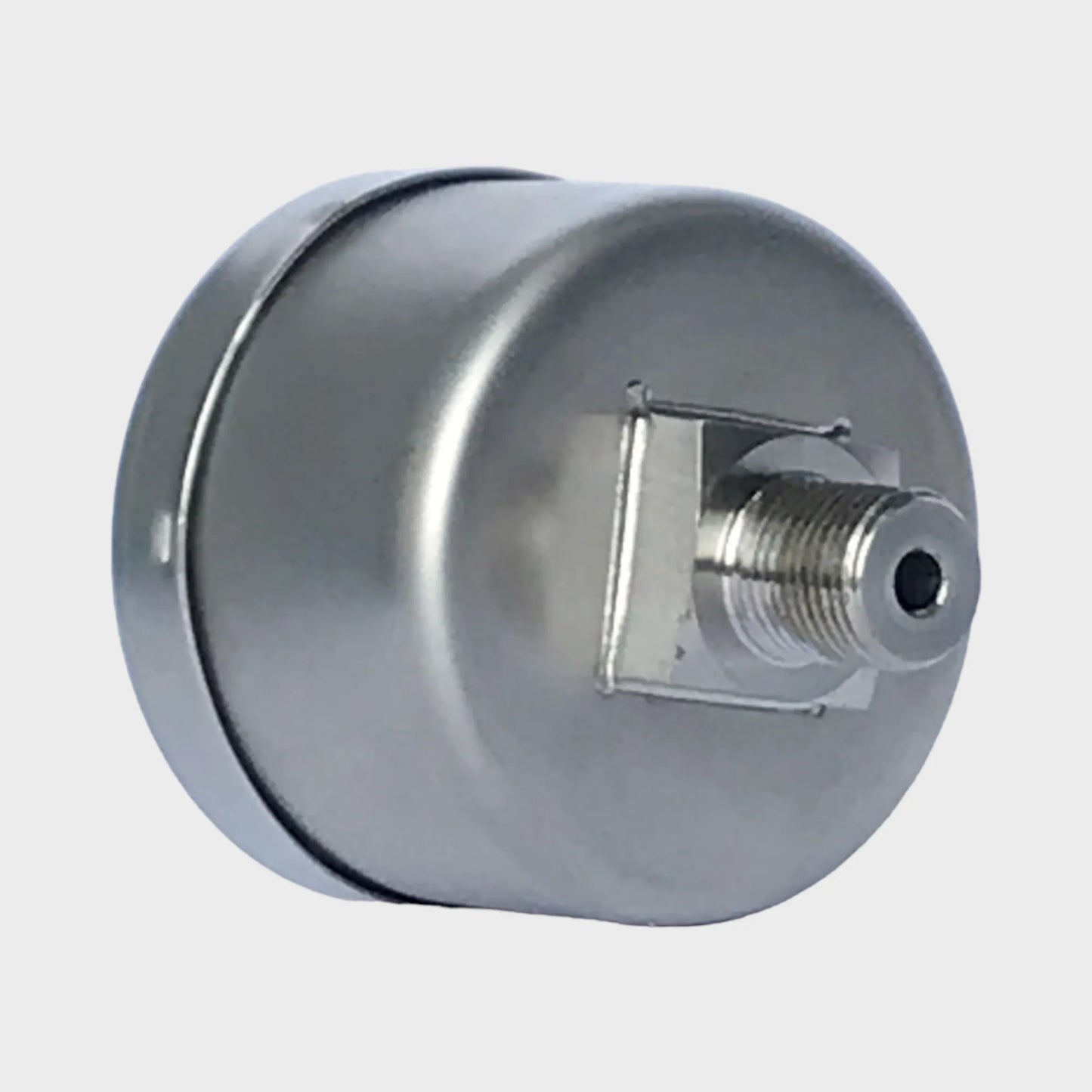

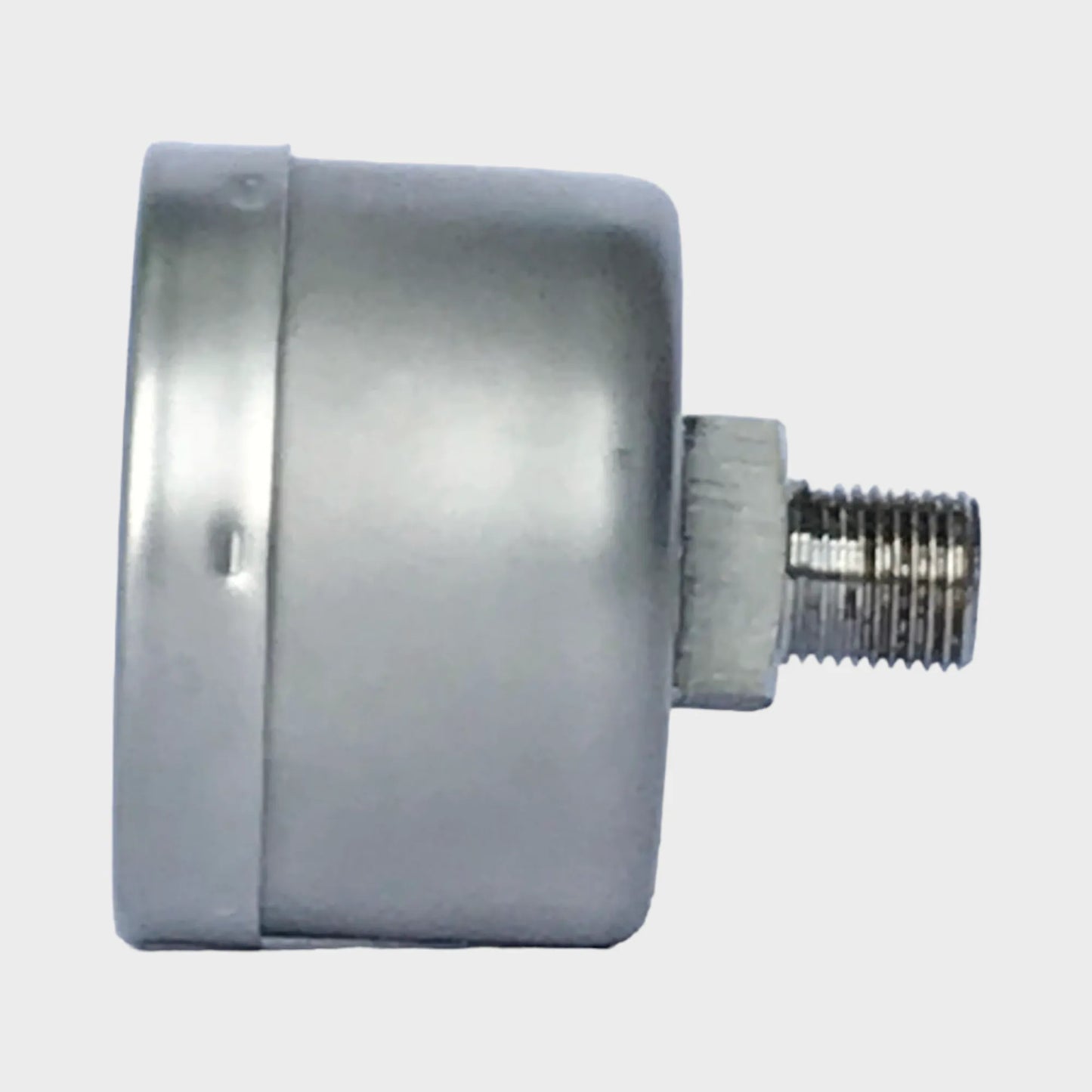

Pressure Gauge 6 bar For Liquid and Gas Stainless Steel Bourdon Tube

Pressure Gauge 6 bar For Liquid and Gas Stainless Steel Bourdon Tube

Nominal Size
Pressure Range
Scale

Introducing Our Stainless Steel Pressure Gauge 6 Bar:



When it comes to accurate pressure measurement, our 6 Bar Pressure Gauge for Liquid and Gas, equipped with a stainless steel Bourdon tube, is the ultimate solution. Crafted for precision and versatility, this gauge is a reliable choice for monitoring both liquid and gas pressures.



Key Features:



1. Wide Pressure Range: Our pressure gauge comfortably handles a broad pressure range, up to 6 Bar, making it versatile and suitable for various liquid and gas pressure measurement needs.



2. Stainless Steel Bourdon Tube: The gauge features a stainless steel Bourdon tube, renowned for its precision and resilience. It ensures dependable and accurate pressure readings even in challenging conditions.



Specifications:



- Pressure Range: Up to 6 Bar

- Material: Stainless Steel Bourdon Tube

- Connection: Back connection

- Accuracy: Class 2.5

- Application: Suitable for both Liquid and Gas Pressure Measurement



Applications:



- Industrial Machinery

- Hydraulic Systems

- Pneumatic Systems

- HVAC Systems

- Process Control

- And More



Whether you're in the industrial sector, automotive industry, or HVAC applications, our **6 Bar Pressure Gauge for Liquid and Gas** with a stainless steel Bourdon tube is a versatile tool for precision and dependability in a wide range of applications.



Invest in precision, versatility, and reliability. Contact us today to order your stainless steel pressure gauge and enhance your pressure measurement capabilities.

Dial Size 40mm
Case material Stainless steel
Wetted parts Stainless steel
Mount Axial
Connection 1/8 PT, NPT, G... M10*1
Liquid Glycerin, Silicone oil, None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
stainless steel pressure gauges, flowmeters and ball valves are working on the piping system

Applications

For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

  • Special features

    Excellent load cycle stability and shock resistance

    Design per EN 837-1

    Completely from stainless steel

    Scale ranges up to 0 ... 1600 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
