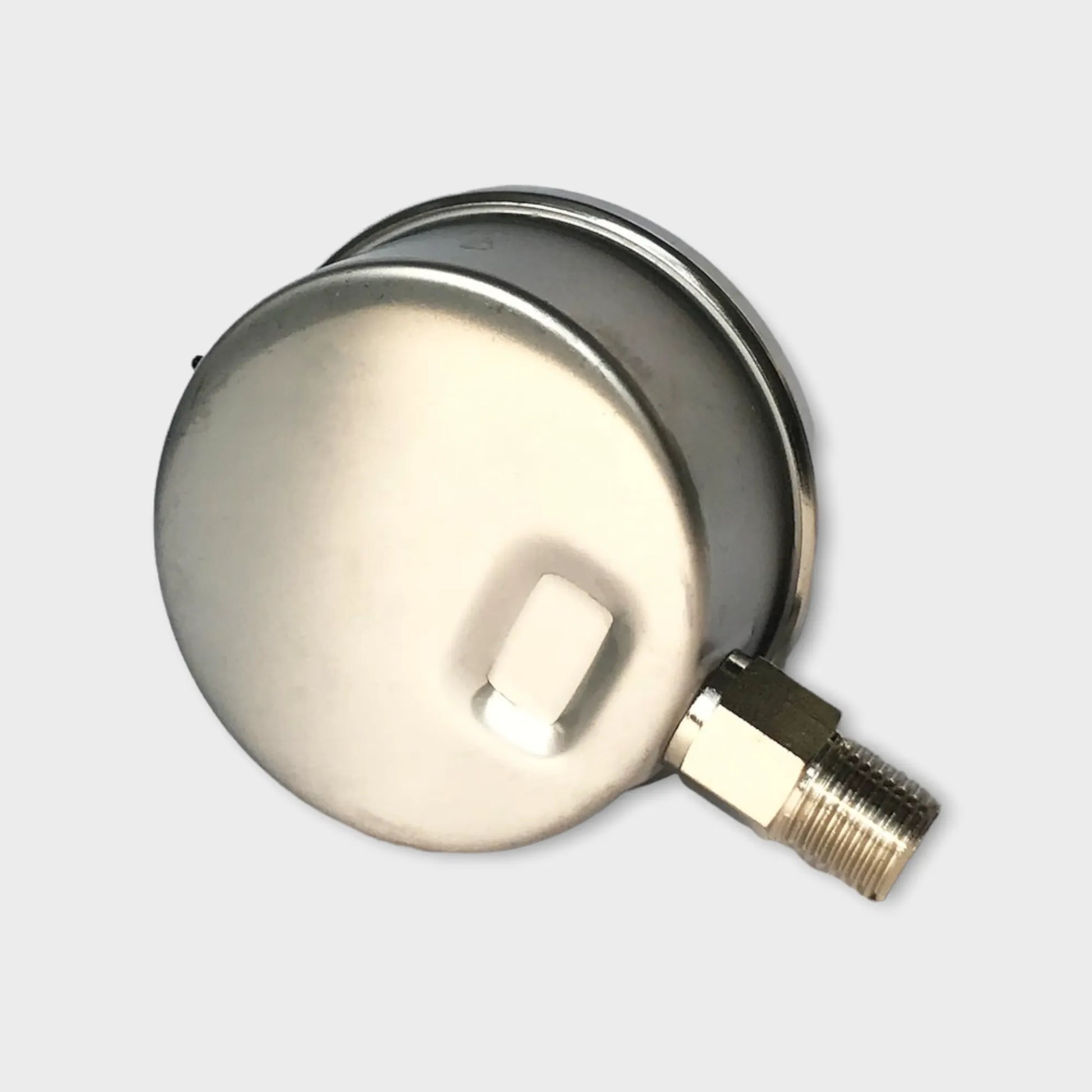

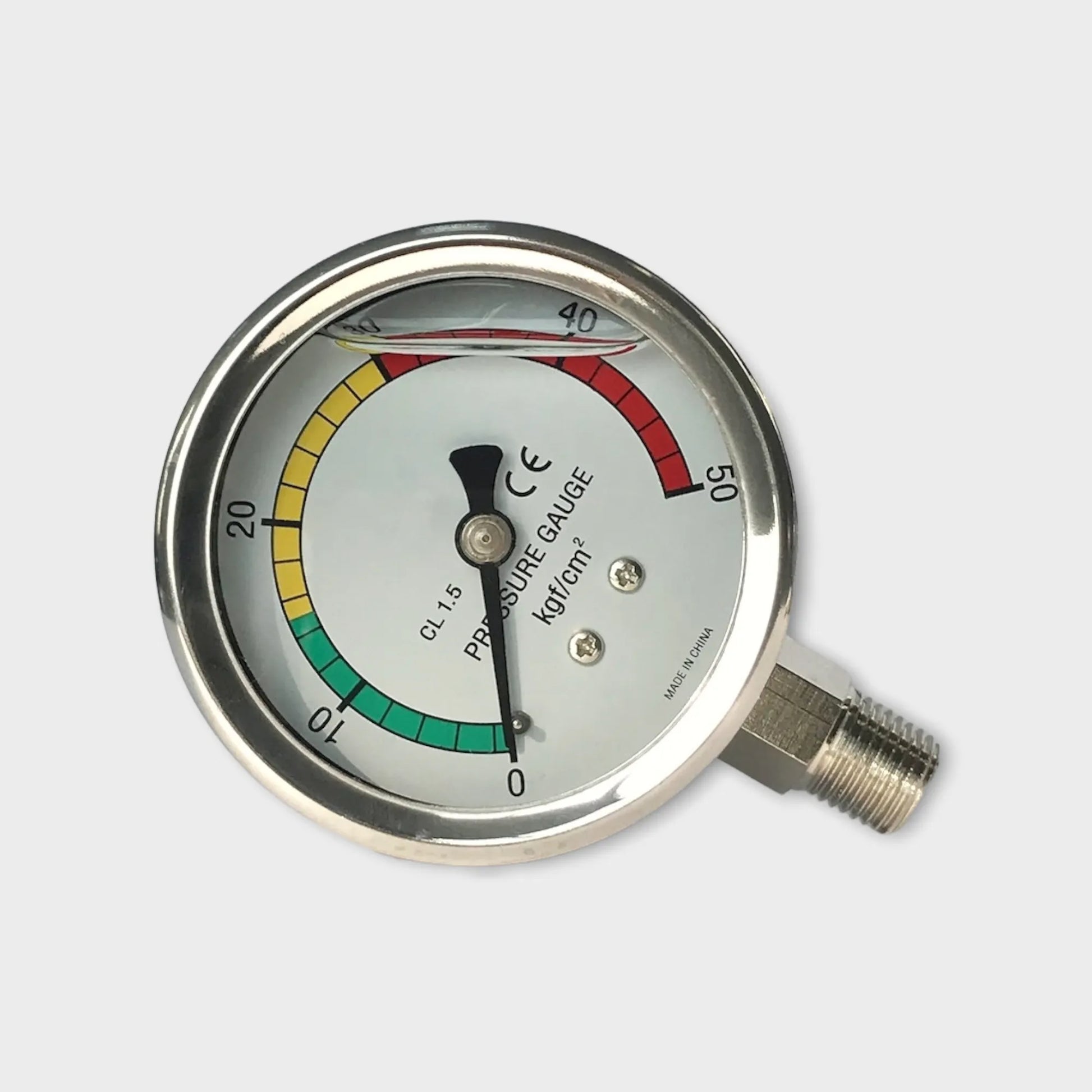

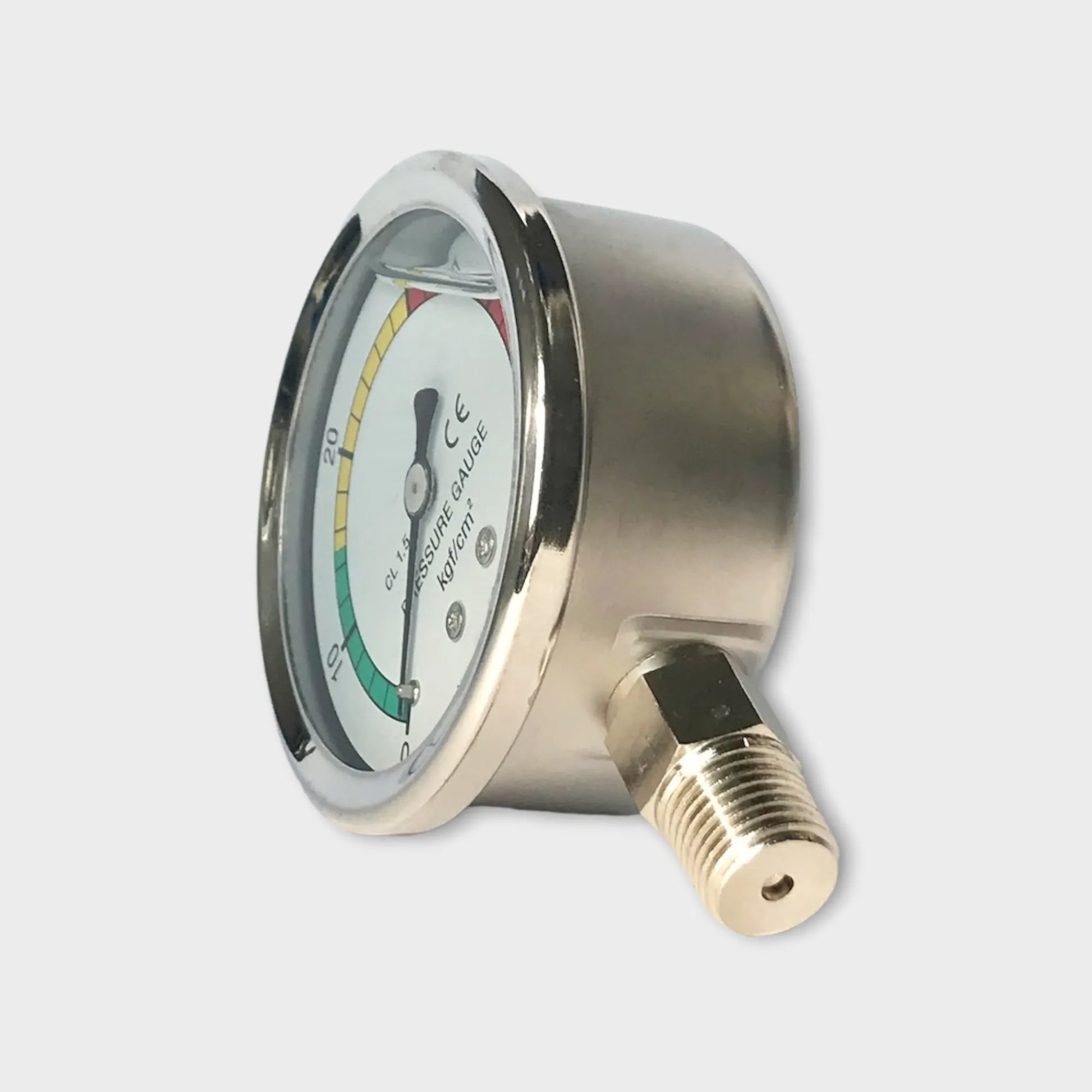

63mm Bottom Mounted Pressure Gauge for Boiler

63mm Bottom Mounted Pressure Gauge for Boiler

Nominal Size
Pressure Range

A 63mm bottom-mounted pressure gauge for boilers with glycerin filling and SS304 stainless steel material is a specific type of pressure measuring instrument designed for monitoring pressure levels in boiler systems. This type of gauge is equipped with glycerin filling to dampen vibrations, enhance accuracy, and protect internal components, while the use of SS304 stainless steel material provides durability and resistance to corrosion. The bottom-mounted design indicates that the gauge is installed with the pressure connection at the bottom.

Key Features:

1. Gauge Size: The gauge has a size of 63mm, which refers to the diameter of the circular display.

2. Pressure Range: The pressure gauge is designed to measure pressures typically encountered in boiler systems.

3. Bottom-Mounted Design: The gauge features a bottom-mounted configuration, meaning that the pressure connection is located at the bottom of the gauge. This is suitable for applications where the gauge needs to be mounted vertically.

4. Glycerin Filling: The gauge is filled with glycerin, a viscous liquid, to dampen vibrations, reduce wear and tear on internal components, and improve the overall accuracy of pressure readings.

5. SS304 Stainless Steel Material: The gauge is constructed from SS304 stainless steel, which provides durability and resistance to corrosion.

6. Scale and Units: The dial is marked with a scale calibrated in units appropriate for boiler applications, such as psi, bar, or kPa.

7. Pointer: The gauge is equipped with a pointer that indicates the pressure value on the dial, providing real-time pressure readings.


This specific type of pressure gauge is commonly used in various applications related to boilers and steam systems, including:

- Boiler Systems: Monitoring and controlling pressure in various types of boiler systems, including industrial boilers and steam generators.

- Energy Generation: Measuring pressure in systems used for energy generation through steam processes.

- Industrial Processes: Monitoring pressure in industrial processes that involve steam or hot water.


- Accurate and Reliable: The glycerin filling enhances accuracy by dampening vibrations and protecting internal components.

- Durability: SS304 stainless steel construction ensures durability and resistance to corrosion.

- Bottom-Mounted Configuration: The bottom-mounted design is suitable for vertical installation in boiler systems.


- Pressure Range: Ensure the pressure range of the gauge matches the pressure levels in your boiler system.

- Units: Make sure the gauge's units match the units used in your application.

- Environmental Compatibility: Verify that the gauge's construction and materials are suitable for the environmental conditions of your application.

- Calibration: Regular calibration is important to maintain the accuracy of pressure readings.

In summary, a 63mm bottom-mounted pressure gauge for boilers with glycerin filling and SS304 stainless steel material is a reliable and accurate tool for monitoring pressure in boiler systems. Its design features make it suitable for boiler applications where durability, accuracy, and protection against vibrations are important considerations.

Dial Size 63mm
Case material Stainless steel
Wetted parts Brass
Mount Lower
Connection 1/4 PT, NPT, G... M14*1.5
Liquid Glycerin, Silicone oil
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
pressure vessels with vacuum pressure gauges on them


Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries

Mechanical pressure display on pipelines, fermenters, bioreactors and vessels

Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing

For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media

  • Special features

    Safety via mechanical pressure transmission

    Case and wetted parts in hygienic design

    Suitable for SIP and CIP, autoclavable version available

    Easy zero point setting

    High overload safety

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
