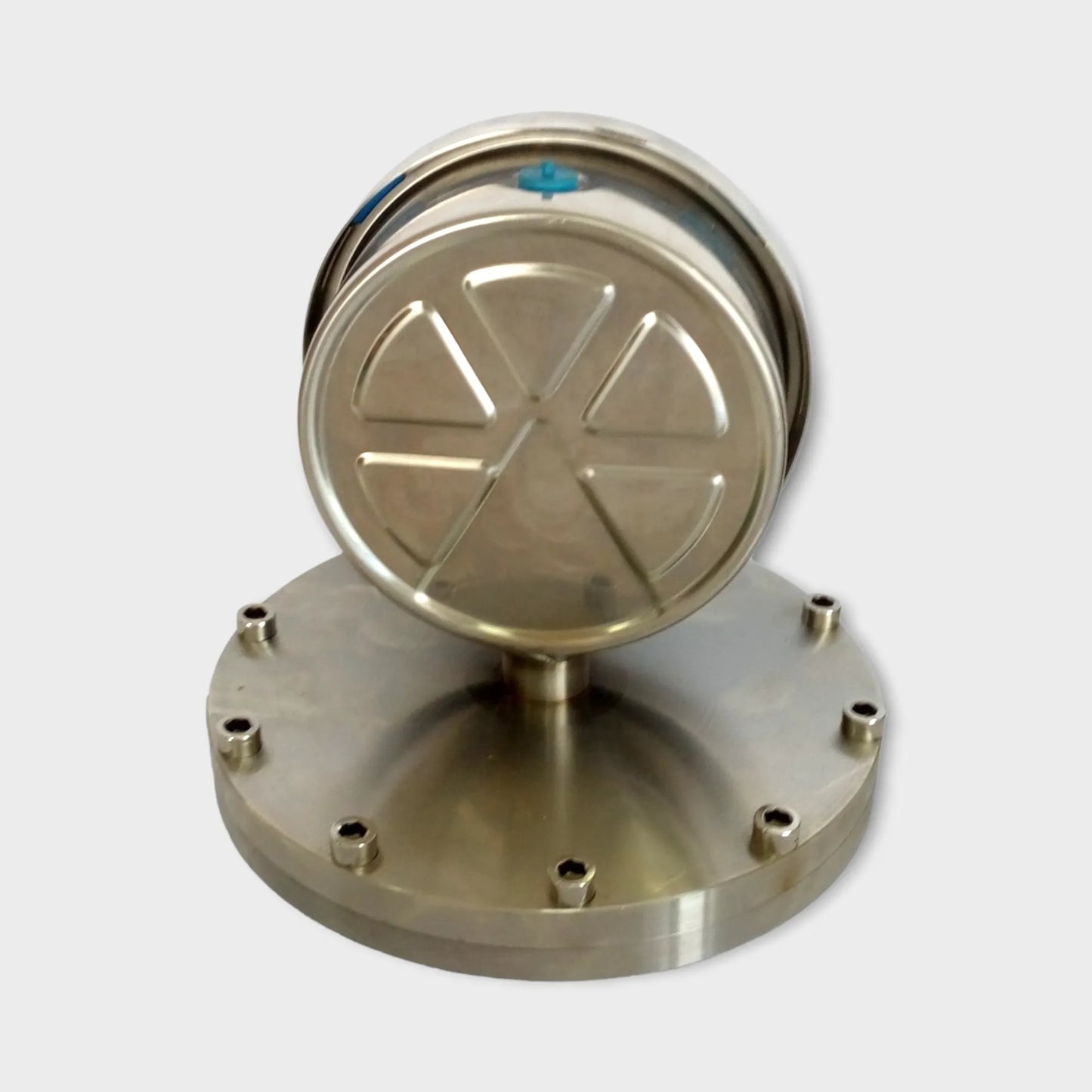

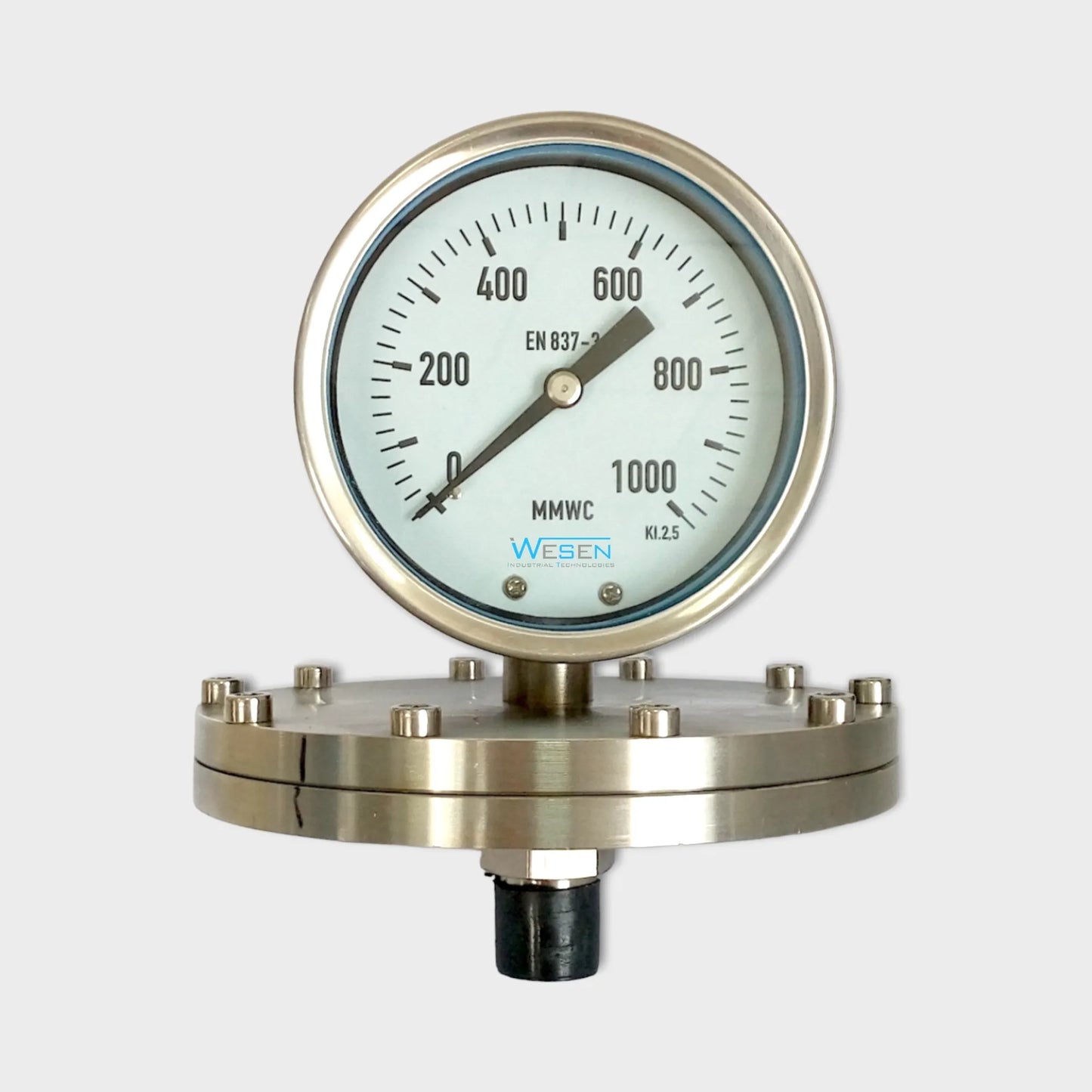

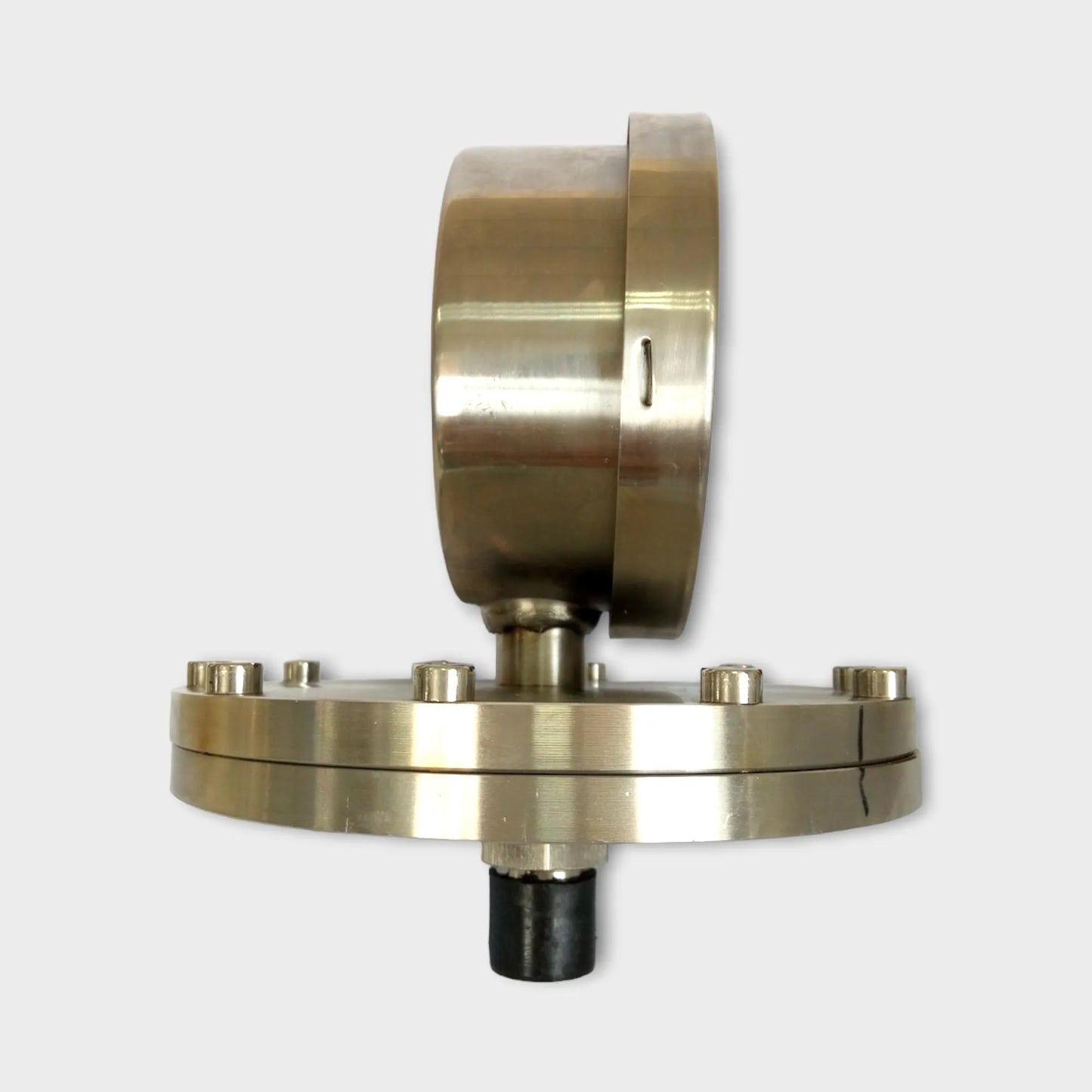

Pressure Gauge with Diaphragm Seal Flanged Lower Mount

Pressure Gauge with Diaphragm Seal Flanged Lower Mount

Nominal Size
Pressure Range

Introducing our Pressure Gauge with Diaphragm Seal, Flanged Lower Mount - the ideal instrument for accurate and reliable pressure measurement in demanding industrial applications:


Product Description:


Our Pressure Gauge with Diaphragm Seal, Flanged Lower Mount, is designed to provide precise and robust pressure measurement while ensuring compatibility with various industrial processes. The flanged lower mount configuration offers versatile installation options, making it suitable for a wide range of applications.


Key Features:


1. Flanged Lower Mount: The lower mount flanged connection provides flexibility in installation, allowing you to easily attach the gauge to different process systems or pipelines, enhancing adaptability to your specific needs.


2. Diaphragm Seal Protection: The diaphragm seal serves as a protective barrier between the process medium and the gauge internals, safeguarding the gauge from corrosion or damage while ensuring that the process medium remains uncontaminated.


3. Precision and Accuracy: Our Pressure Gauge with Diaphragm Seal is engineered for precision and accuracy. It offers reliable pressure measurements, crucial for maintaining safety and quality in industrial processes.


4. Wide Range Compatibility: This gauge can be configured to measure pressure within a broad range, making it suitable for low and high-pressure applications across various industries.


5. Durable Construction: Crafted from high-quality materials, including stainless steel and robust diaphragm materials, this gauge is built to withstand harsh industrial environments, ensuring its longevity and dependability.


6. Ease of Maintenance: The design facilitates easy maintenance and cleaning, reducing downtime and ensuring consistent performance throughout its service life.


7. Customizable Options: We offer customization options to tailor the gauge to your specific pressure range and other requirements, ensuring it meets the precise needs of your industrial process.


8. Compliance and Certification: Our Pressure Gauge with Diaphragm Seal adheres to industry standards and can be certified for compliance with specific regulations or standards upon request. It meets the highest quality and safety standards.


9. Versatile Applications: Whether you need pressure monitoring in chemical processing, petrochemical, water treatment, or other industrial settings, this gauge is versatile enough to meet your diverse needs.


In summary, our Pressure Gauge with Diaphragm Seal, Flanged Lower Mount, is a robust and versatile instrument suitable for a wide range of industrial applications. It offers precise and reliable pressure measurements while providing the flexibility of flanged lower mount installation. Trust in the quality and performance of this gauge to enhance the efficiency and safety of your industrial processes.

Dial Size 100mm
Case material Stainless steel
Wetted parts Stainless steel
Mount Lower
Connection 1/2 PT, NPT, G... M20*1.5
Liquid Glycerin, Silicone oil, None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
black painted diaphragm pressure gauges mounted and working on machine


Injection Molding Device, hydraulic

Machine building and plant construction

Heating and air-conditioning technology

Fire sprinkler systems, compressor

  • Special features

    Design per EN 837-1

    Nominal size 40, 50, 63, 80, 100 and 160

    Scale ranges up to 0 ... 1000 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
