Sanitary Diaphragm Pressure Gauge SS304 and SS316 Material

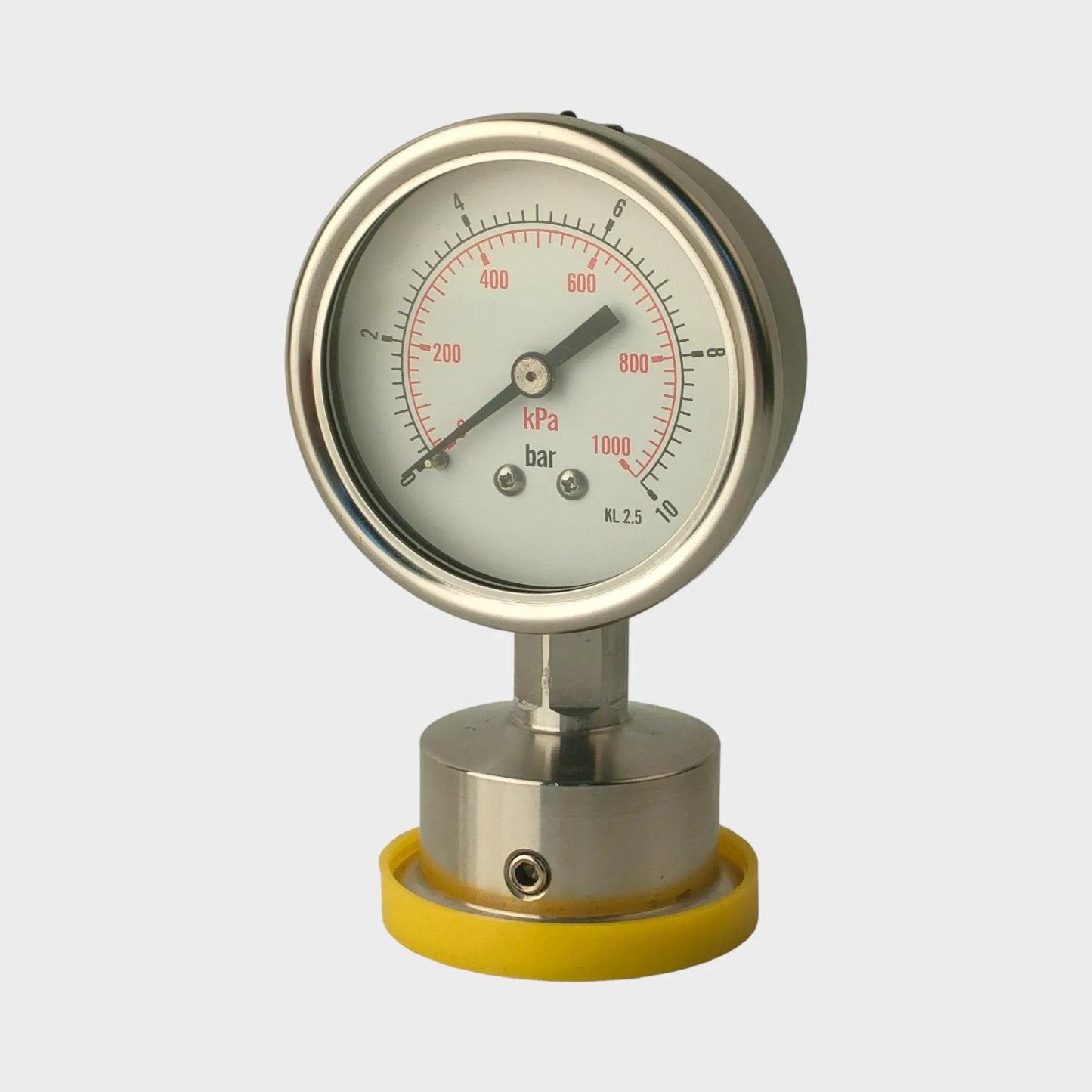

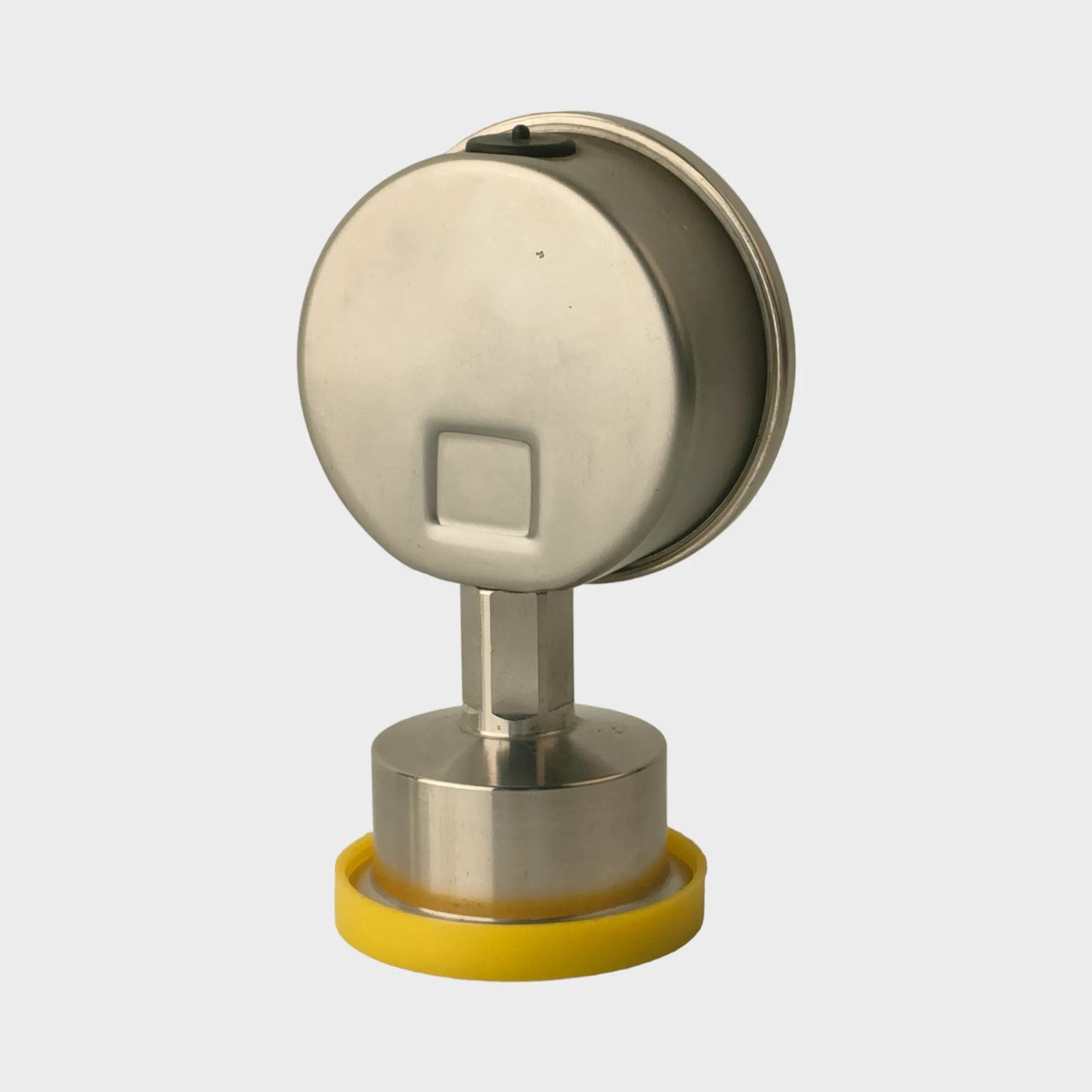

Sanitary Diaphragm Pressure Gauge SS304 and SS316 Material

Elevate your sanitary applications with our Sanitary Diaphragm Pressure Gauge, carefully crafted from premium SS304 and SS316 materials. This specialized pressure gauge is designed to meet the stringent requirements of sanitary and hygienic environments, ensuring the utmost in cleanliness and precision in pressure monitoring.

Key Features:

- Sanitary Diaphragm Pressure Gauge: A sanitary diaphragm pressure gauge is a specialized pressure gauge designed for use in industries and applications where hygiene and cleanliness are of paramount importance. These gauges are constructed with materials and features that meet strict sanitary standards, making them suitable for use in the food and beverage industry, pharmaceuticals, biotechnology, and other applications where contamination and impurity must be avoided.

- SS304 and SS316 Construction: Our pressure gauge is available in both SS304 and SS316 variants to accommodate your specific material requirements, providing corrosion resistance and durability.

- Sanitary Design: The gauge is specially designed to meet sanitary standards, making it an excellent choice for industries like food and beverage, pharmaceuticals, and biotechnology.

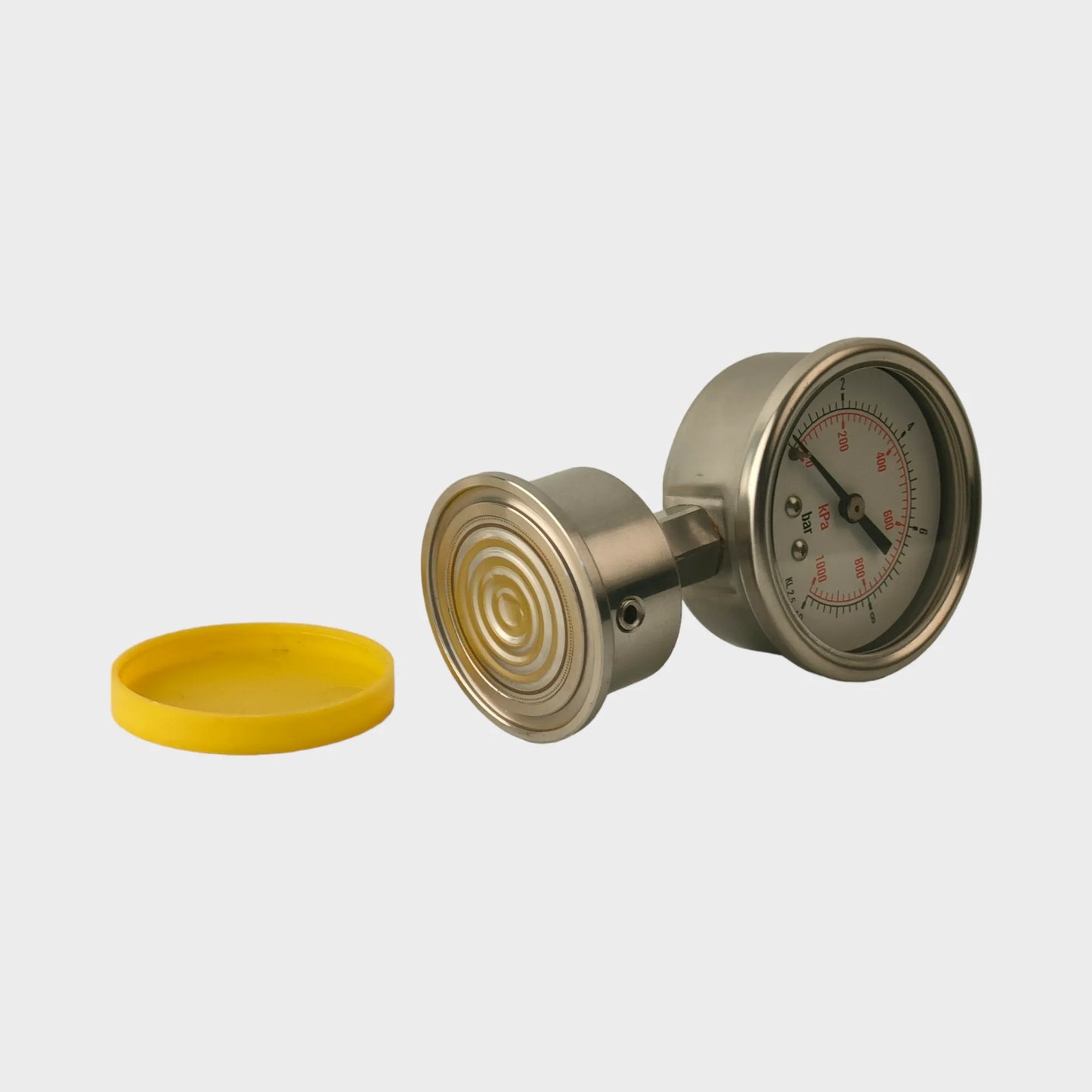

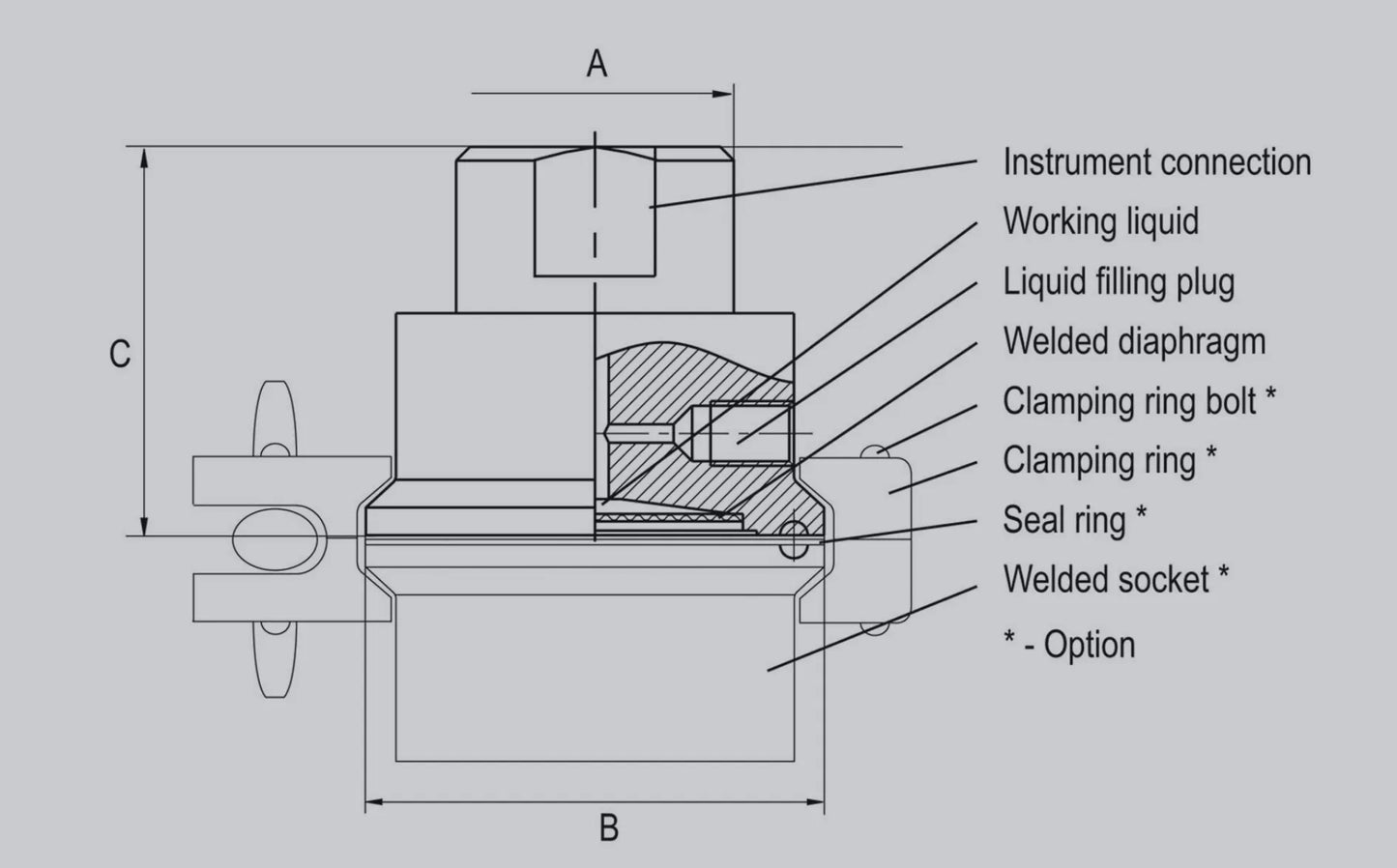

- Diaphragm Seal: The diaphragm seal isolates the pressure measuring system from the process medium, preventing contamination and ensuring cleanliness.

- Hygienic Applications: Ideal for use in applications where hygiene and cleanliness are paramount, ensuring the purity of the process.

- Precision Measurement: Engineered for accuracy, this sanitary diaphragm pressure gauge guarantees reliable pressure readings in critical and hygienic applications.


Hygienic pressure measurement in sanitary applications for the food and beverage industry
Mechanical pressure display on pipelines and vessels
Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing
For gases, vapour; liquid, pasty, powdery and crystallising media


Special features

Quick cleaning, without residue
Clamp connection easy to open for cleaning and seal replacement
Suitable for SIP and CIP

For industries and processes where hygiene and cleanliness are of utmost importance, our Sanitary Diaphragm Pressure Gauge made from SS304 and SS316 materials is the perfect choice. It's designed to provide the highest levels of purity and precision in pressure monitoring, making it an essential tool for sanitary applications.

Choose our Sanitary Diaphragm Pressure Gauge for hygienic applications where material quality and cleanliness are essential. With options in both SS304 and SS316 materials, it's the right gauge to ensure the integrity of your processes.

Dial Size 63mm
Case material Stainless steel
Wetted parts Stainless steel
Mount Lower, coupling
Connection Customizable
Liquid Glycerin, Silicone oil, None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
black painted diaphragm pressure gauges mounted and working on machine


Injection Molding Device, hydraulic

Machine building and plant construction

Heating and air-conditioning technology

Fire sprinkler systems, compressor

  • Special features

    Design per EN 837-1

    Nominal size 40, 50, 63, 80, 100 and 160

    Scale ranges up to 0 ... 1000 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
