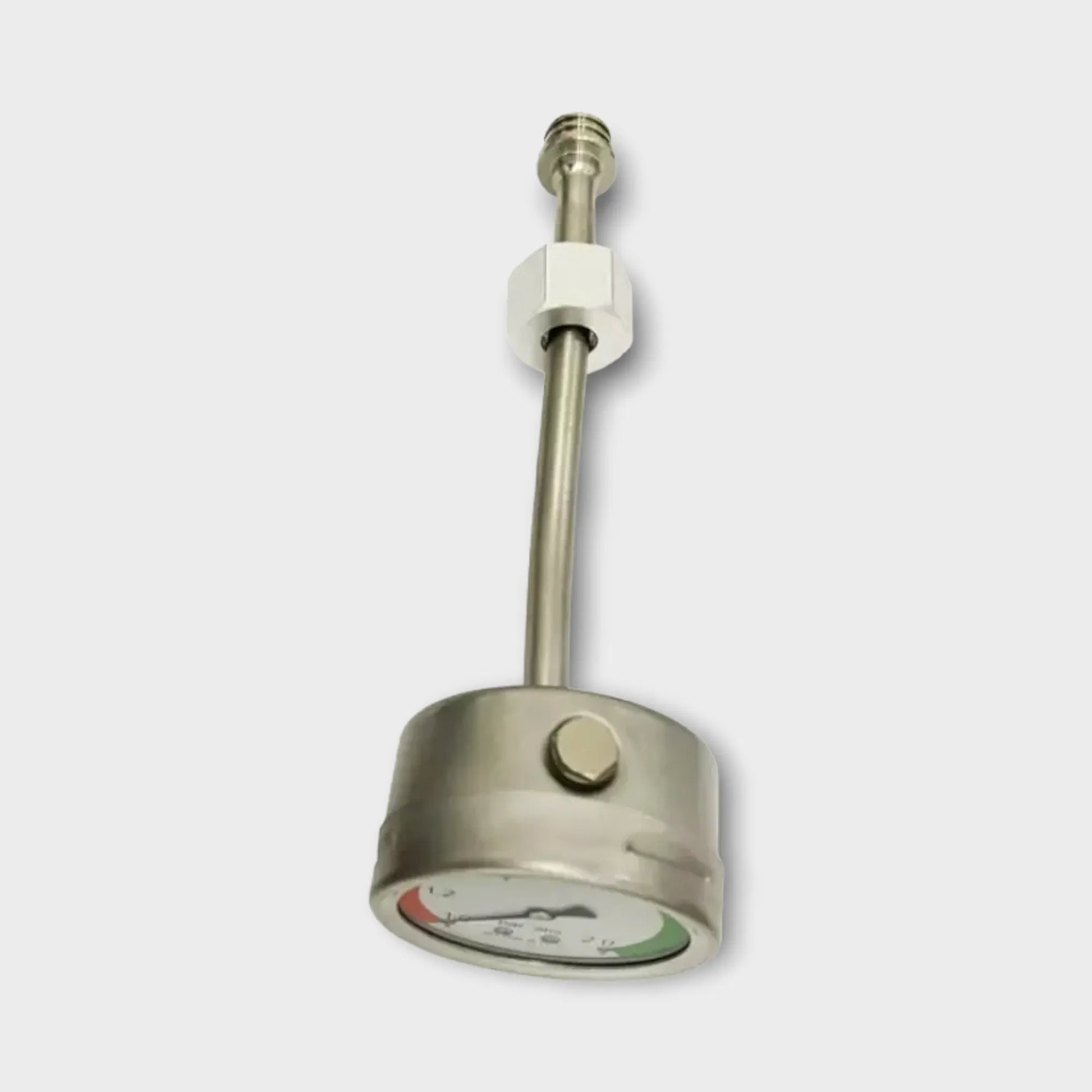

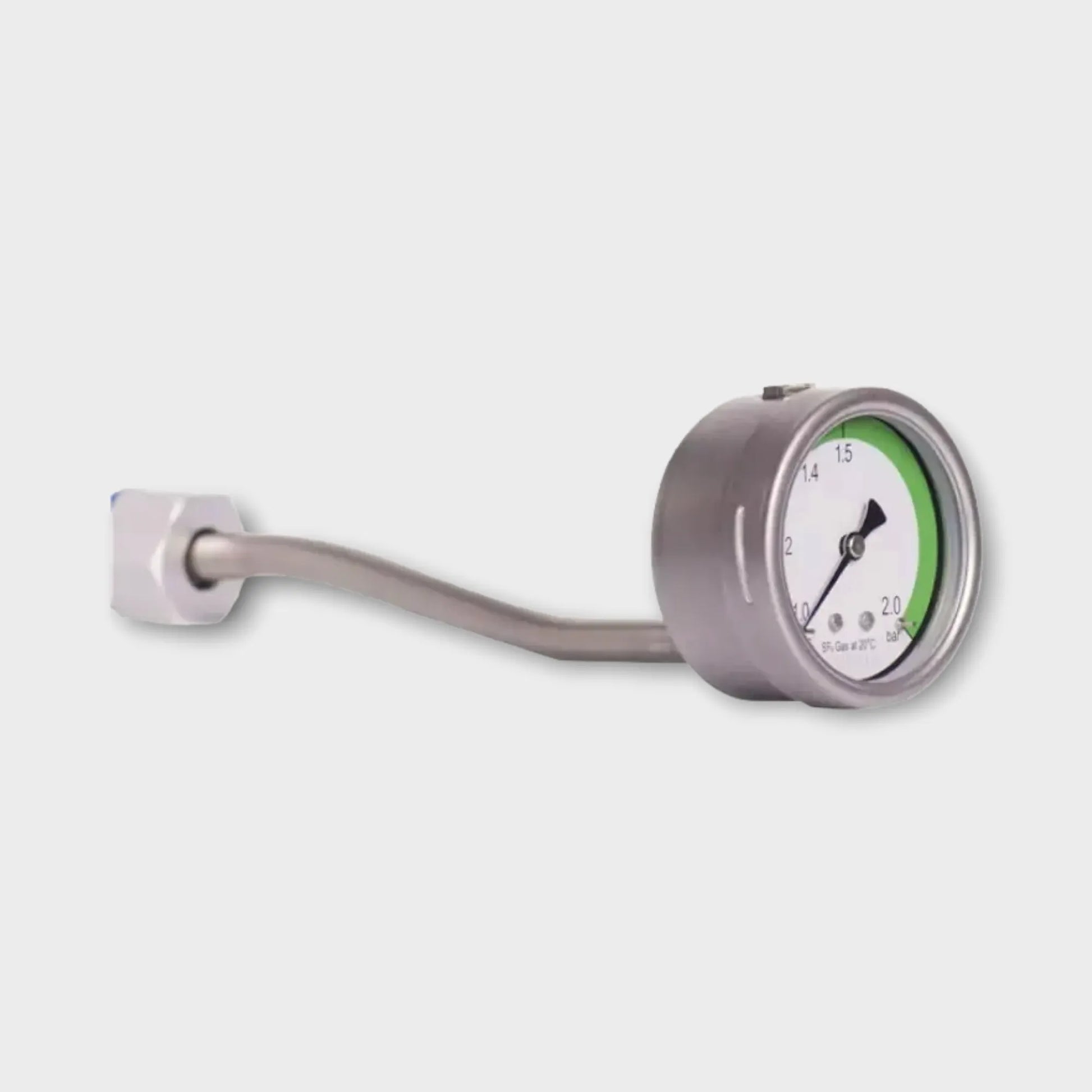

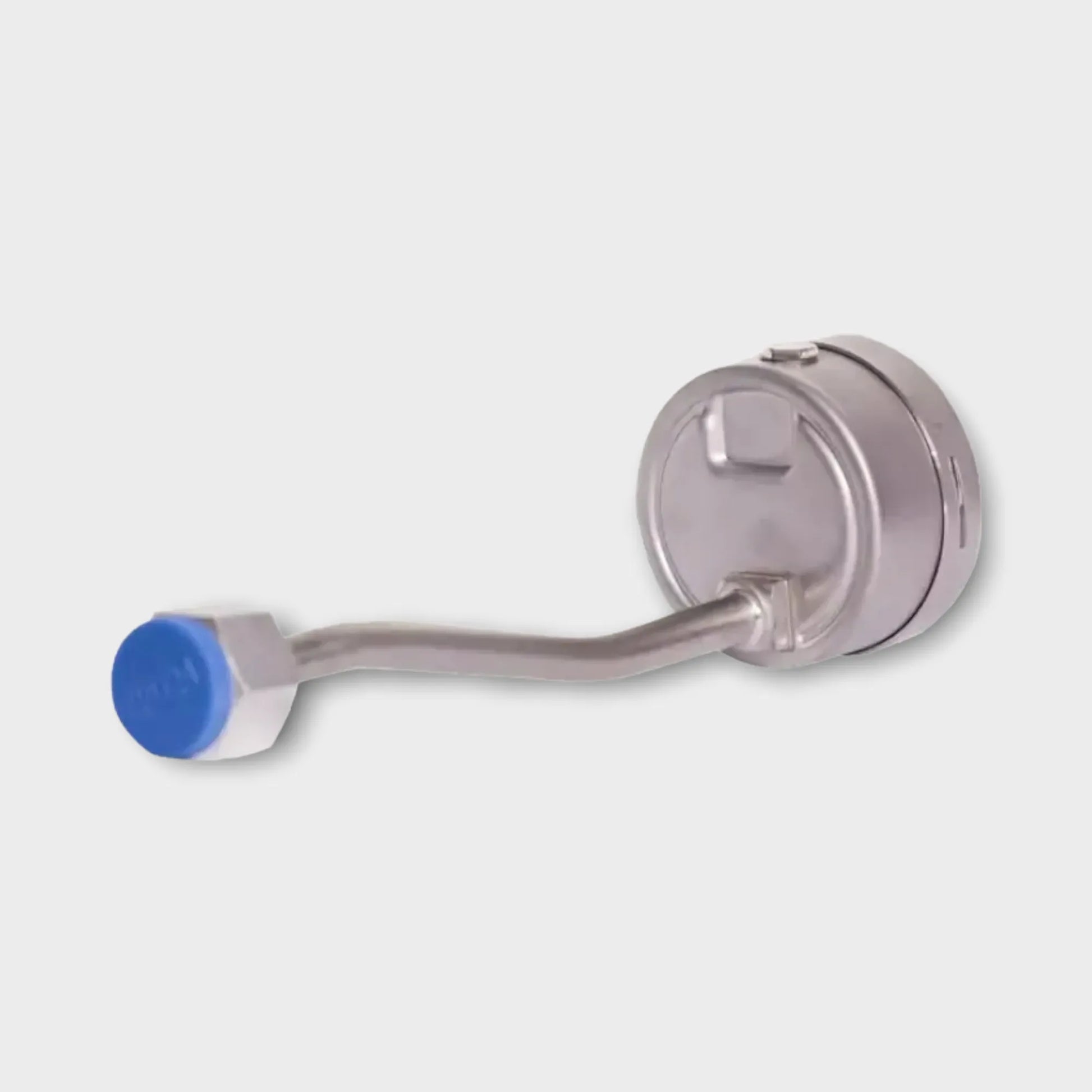

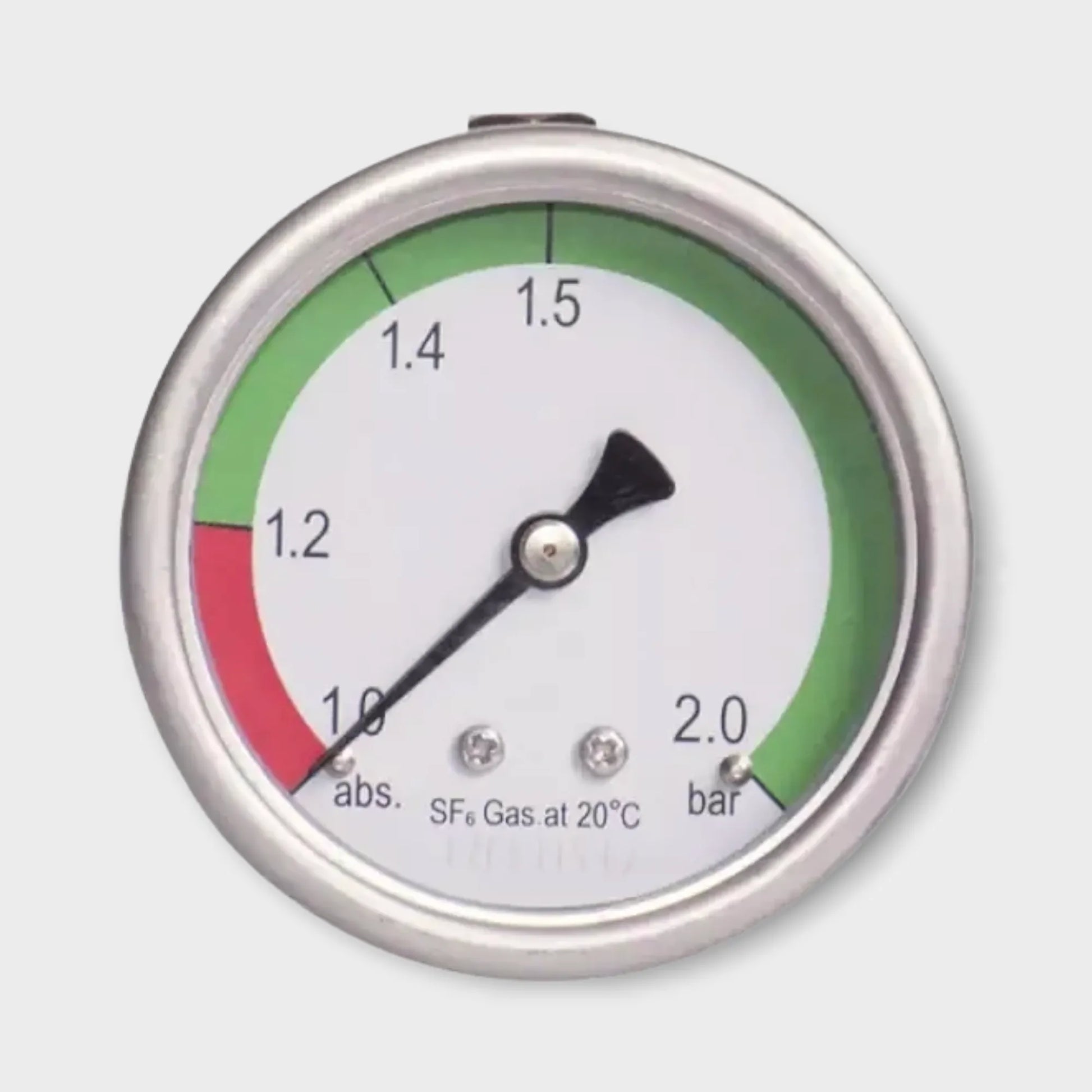

SF6 Gas Density Meter SF6 Gas Pressure Gauge 1.0-2.0 bar abs
SF6 Gas Density Meter SF6 Gas Pressure Gauge 1.0-2.0 bar abs
| Case Diameter | 64mm |
| Scale Range | 1 to 2 bar abs |
| Accuracy |
a) At 20°C: Class 1.0 or 1.5 |
| Degree of Protection | IP65 |
| Ambient Conditions | -40°C to +60°C |
| Leakage Rate | <1 x 10-9Pa-m3/s (Helium leakage inspection) |
| Process Connection | Customizable |
| Installation Method | Radial or Axial |
| Window Glass | Laminated safety glass |
| Weight | 0.3 kg |
| Options | Interface size: customizable Measurement Medium: SF6, Air, N2, SF6 + N2 or other gases |
Applications Of SF6 Gas Density Meter

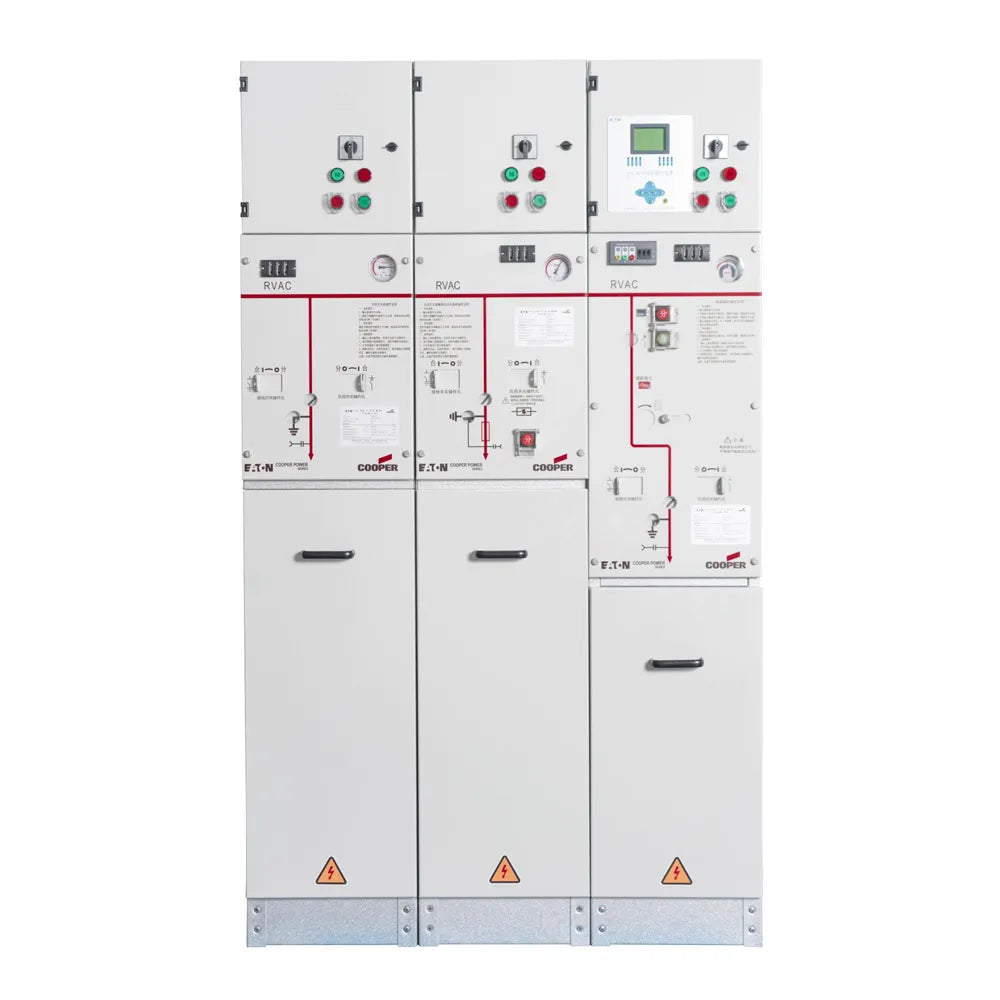

- SF6 gas Insulated RMU
- SF6 gas Insulated Switchgear
Feature of SF6 Gas Density Meter / Pressure Gauge
- The temperature compensation device provides higher accuracy.
- Indoor or outdoor installation
- AISI 304 hermetic stainless steel case for the gas density meter
- AISI 316 stainless steel connexion tubes
- On-screen display value and output signals are independent of external environment effect, such as altitude

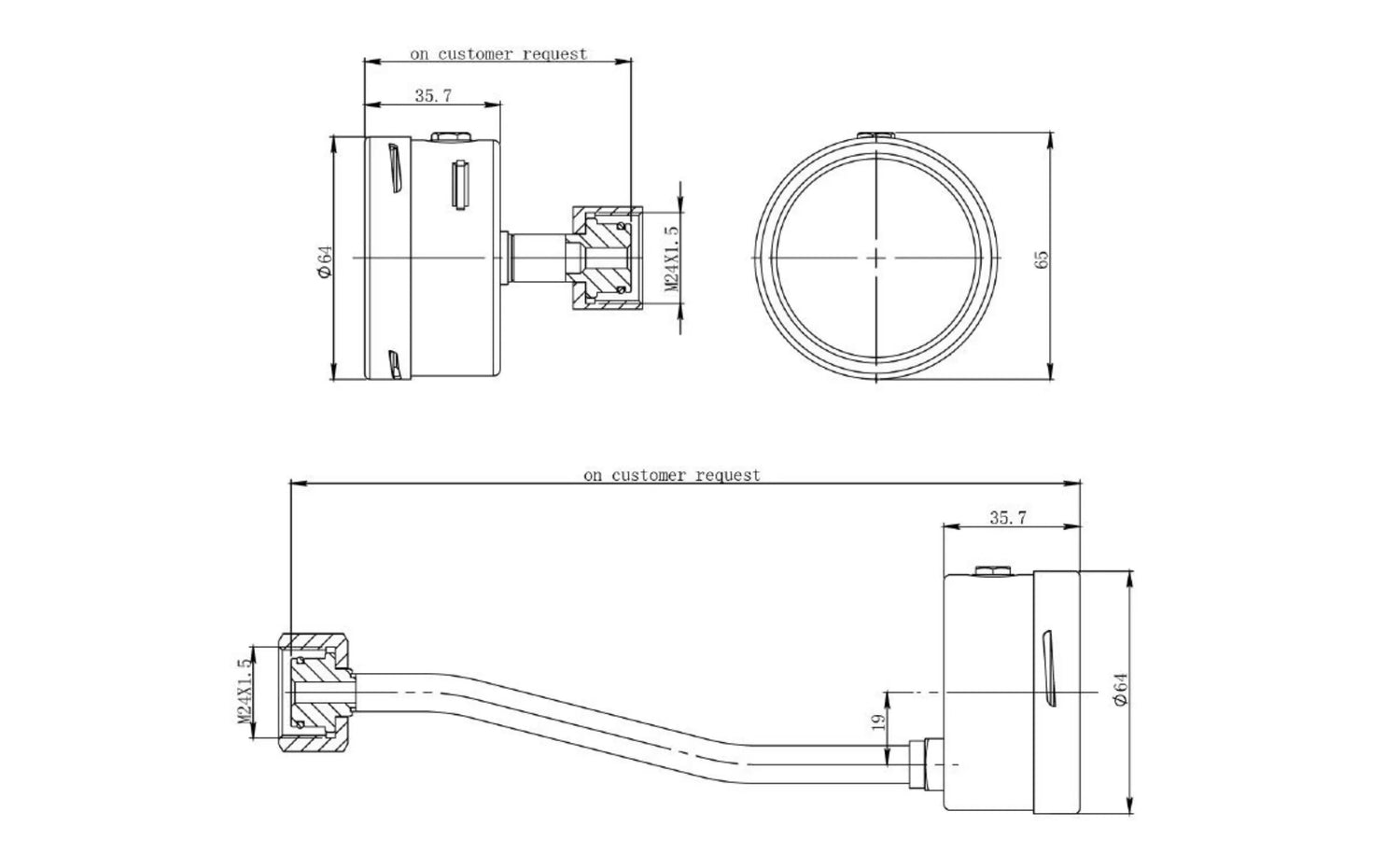

Dimension
Drawing of WT-60 SF6 Gas Density Meter / Pressure Gauge
