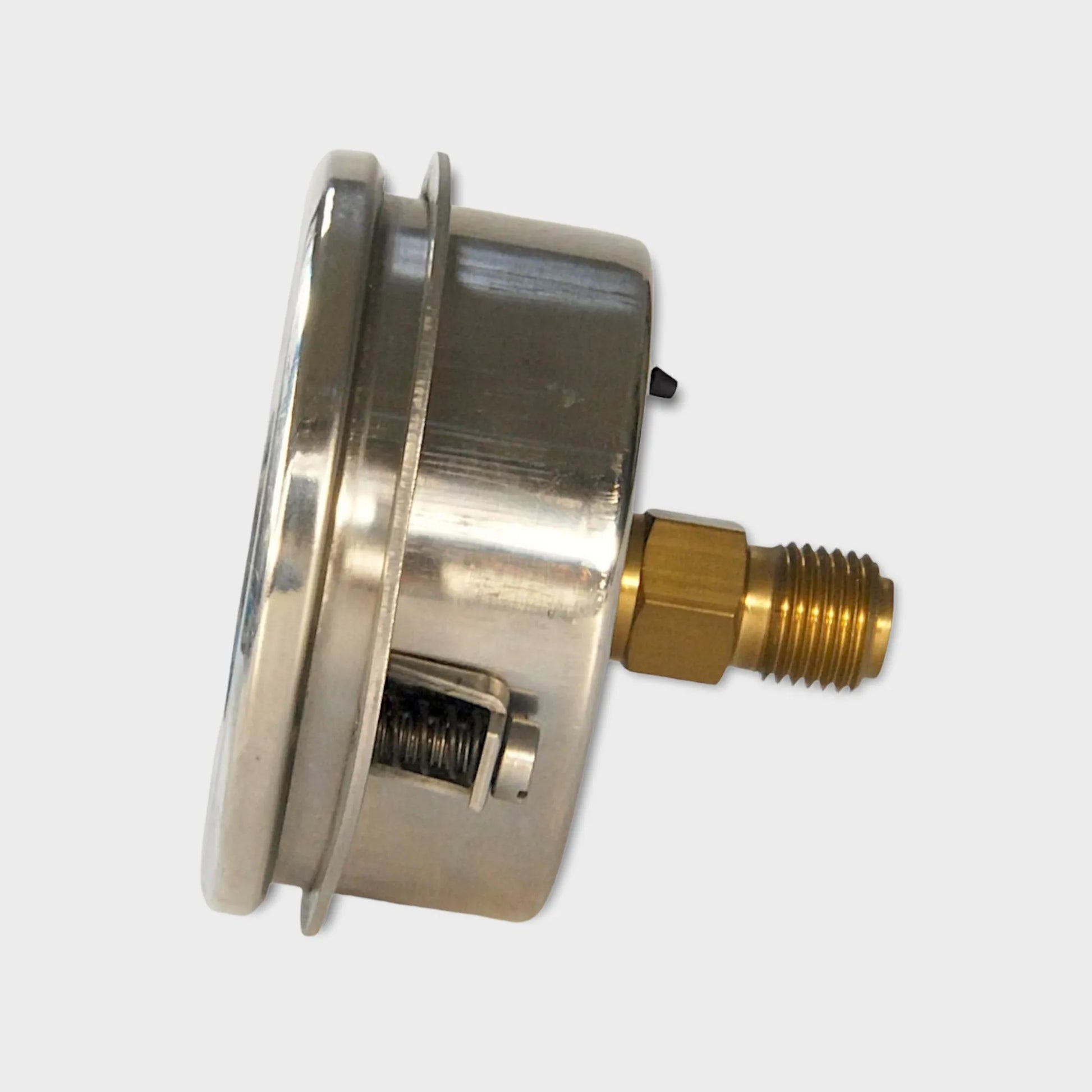

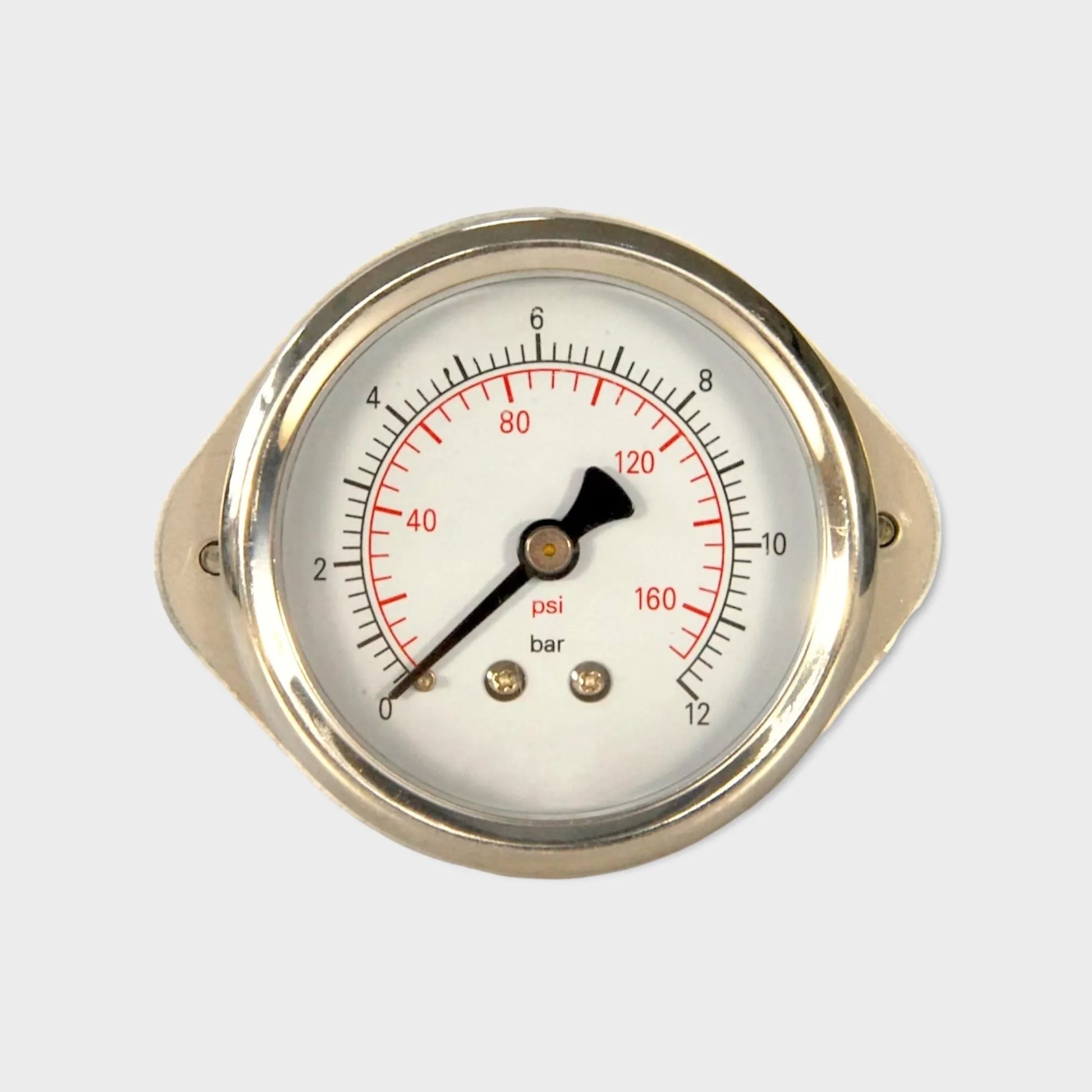

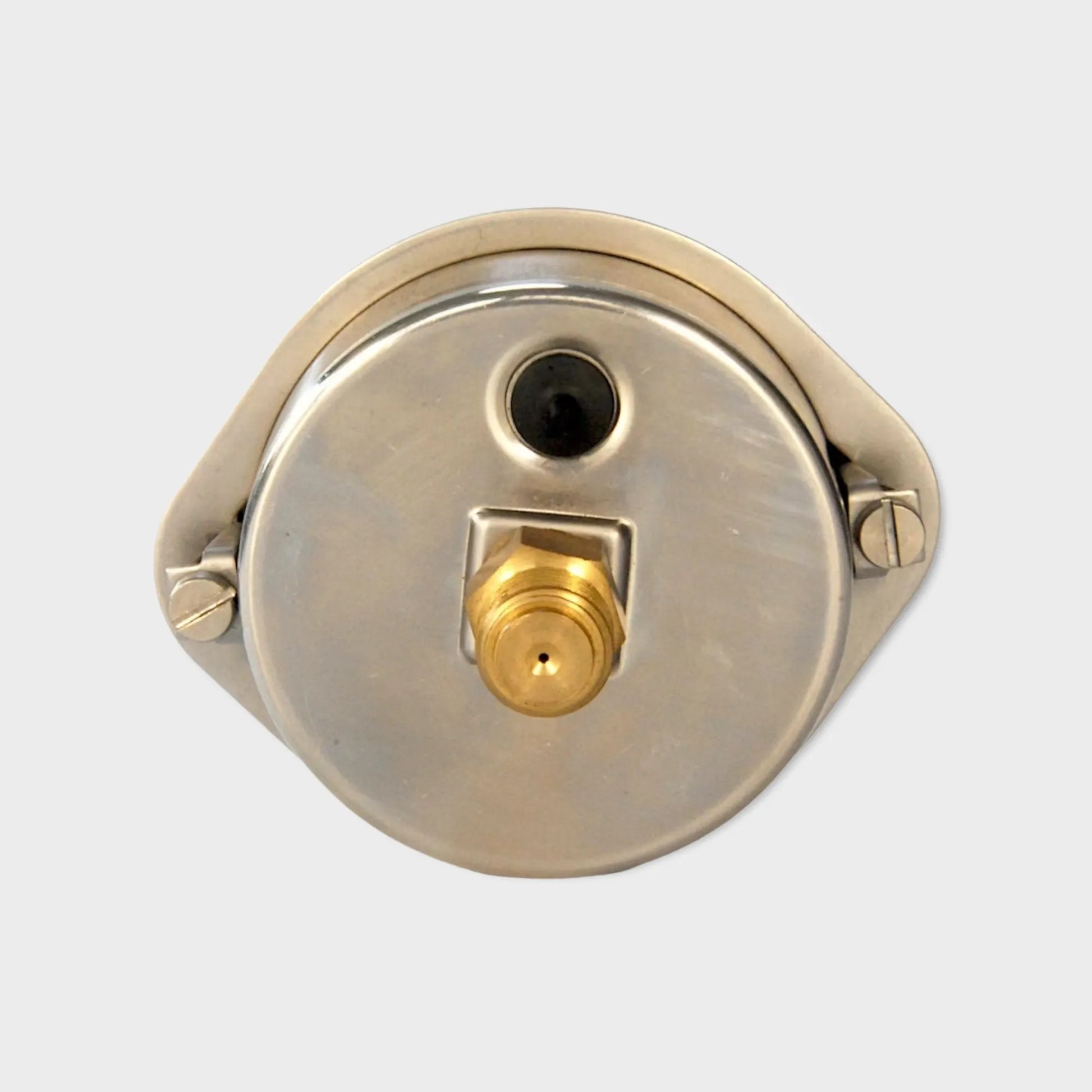

50mm Stainless Steel Pressure Gauge Dial Type Butterfly Flange Mount

A 50mm stainless steel pressure gauge with a dial type, butterfly flange mount is a specific type of pressure measuring instrument designed for monitoring pressure levels. The butterfly flange mount indicates the method of mounting the gauge using a butterfly-style flange connection. This type of gauge typically features a stainless steel construction, a dial display, and is suitable for various industrial applications.

Key Features:

1. Gauge Size: The gauge has a compact size of 50mm, referring to the diameter of the circular display.

2. Stainless Steel Construction: The gauge is constructed from stainless steel material, which provides durability and resistance to corrosion. Stainless steel is commonly used in industrial environments.

3. Dial Type: The gauge uses a dial display to show pressure readings visually. The dial can be calibrated in various units, such as psi, bar, kPa, etc.

4. Butterfly Flange Mount: The butterfly flange mount refers to the method of mounting the gauge using a butterfly-style flange connection. This type of mount provides secure attachment and ease of installation.

5. Scale and Units: The dial is marked with a scale calibrated in units appropriate for your application, such as psi, bar, kPa, or other relevant units.

6. Pointer: The gauge is equipped with a pointer that indicates the pressure value on the dial, providing real-time pressure readings.

Applications:

This specific type of pressure gauge is commonly used in various industrial applications, including:

- Process Industries: Monitoring pressure in various industrial processes, such as manufacturing, oil and gas, chemical, and more.

- Fluid Systems: Measuring pressure in fluid systems, pipelines, and vessels.

- HVAC: Monitoring pressure in heating, ventilation, and air conditioning systems.

- Pneumatics: Measuring pressure in pneumatic systems and equipment.

Benefits:

- Compact Size: The 50mm size makes the gauge suitable for applications with limited space.

- Stainless Steel Construction: Stainless steel construction ensures durability and resistance to corrosion.

- Butterfly Flange Mount: The butterfly flange mount provides secure attachment and ease of installation.

Considerations:

- Pressure Range: Ensure the pressure range of the gauge covers the pressure levels in your application.

- Units: Make sure the gauge's units match the units used in your application.

- Environmental Compatibility: Verify that the gauge's construction and materials are suitable for the environmental conditions of your application.

- Calibration: Regular calibration is important to maintain the accuracy of pressure readings.

In summary, a 50mm stainless steel pressure gauge with a dial type and butterfly flange mount is a reliable tool for accurately monitoring pressure in various industrial applications. Its compact size, stainless steel construction, and butterfly flange mount make it suitable for different settings where accurate pressure monitoring is essential for efficient and safe operation.
