Tube Pressure Gauge Hydraulic Press 63mm Dial 3.5 MPa 1/4 NPT Axial Mount

Tube Pressure Gauge Hydraulic Press 63mm Dial 3.5 MPa 1/4 NPT Axial Mount

Nominal Size
Pressure Range

The "Tube Pressure Gauge Hydraulic Press" you mentioned has the following specifications:

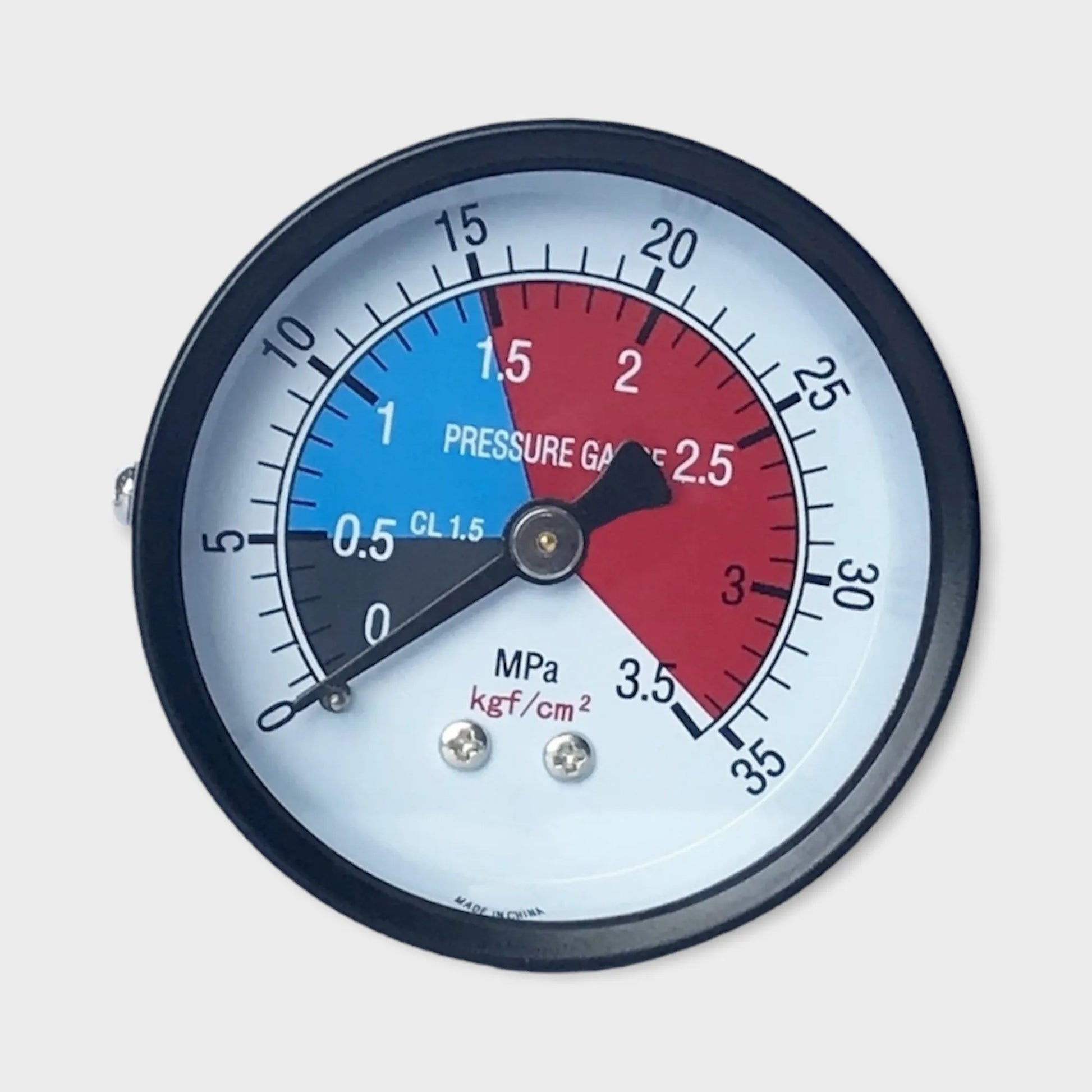

1. Dial Size: 63mm - This refers to the diameter of the gauge's display dial. It's the size of the face of the gauge where the pressure is indicated.

2. Pressure Range: 3.5 MPa - The gauge is designed to measure pressure up to 3.5 megapascals (MPa). MPa is a metric unit of pressure, and it's equivalent to approximately 507.6 pounds per square inch (psi).

3. Connection Type: 1/4 NPT - This indicates the type of connection the gauge uses. "1/4 NPT" refers to a 1/4-inch National Pipe Thread, which is a commonly used thread type for connecting gauges and other hydraulic components. NPT threads are tapered and designed to create a tight seal when threaded into a compatible port.

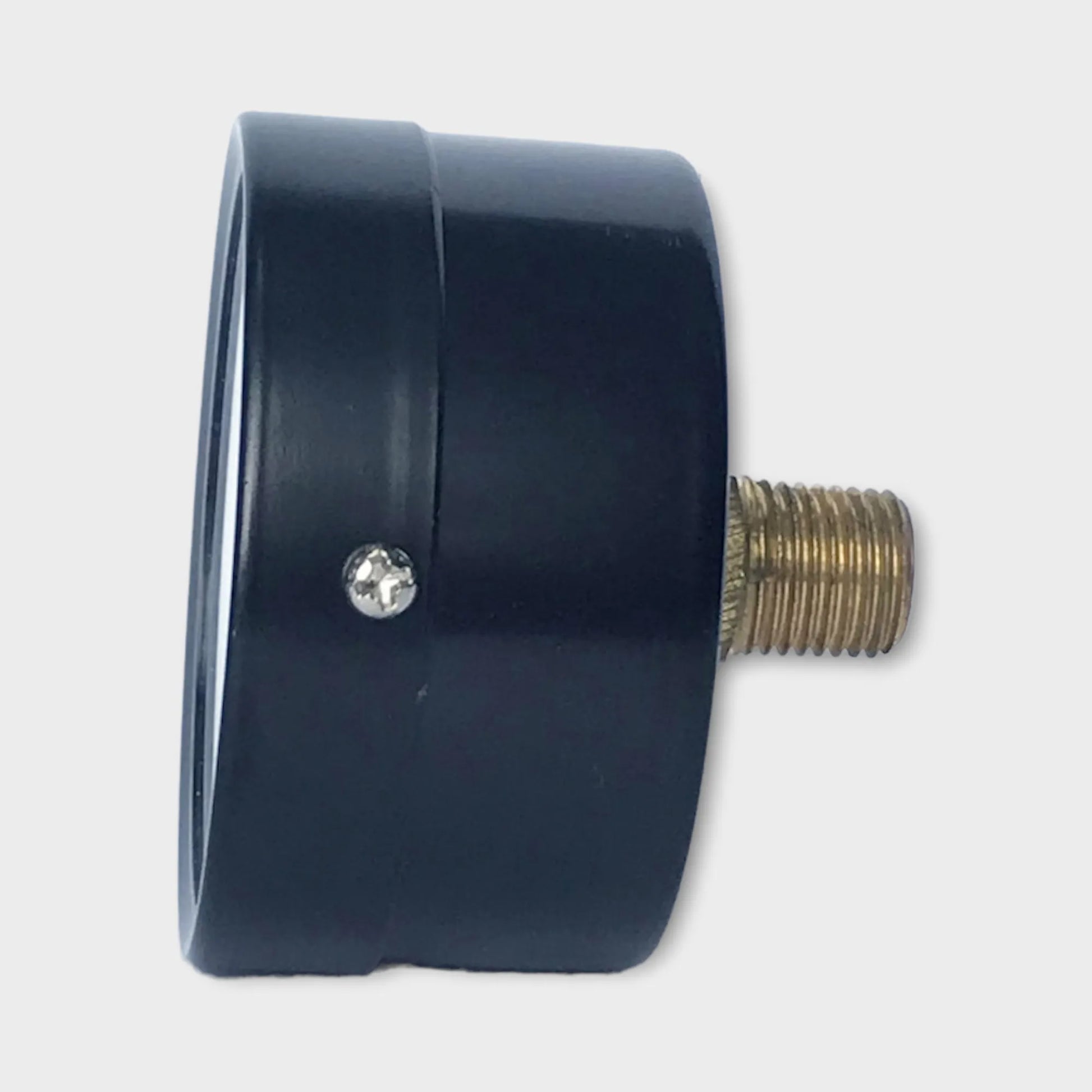

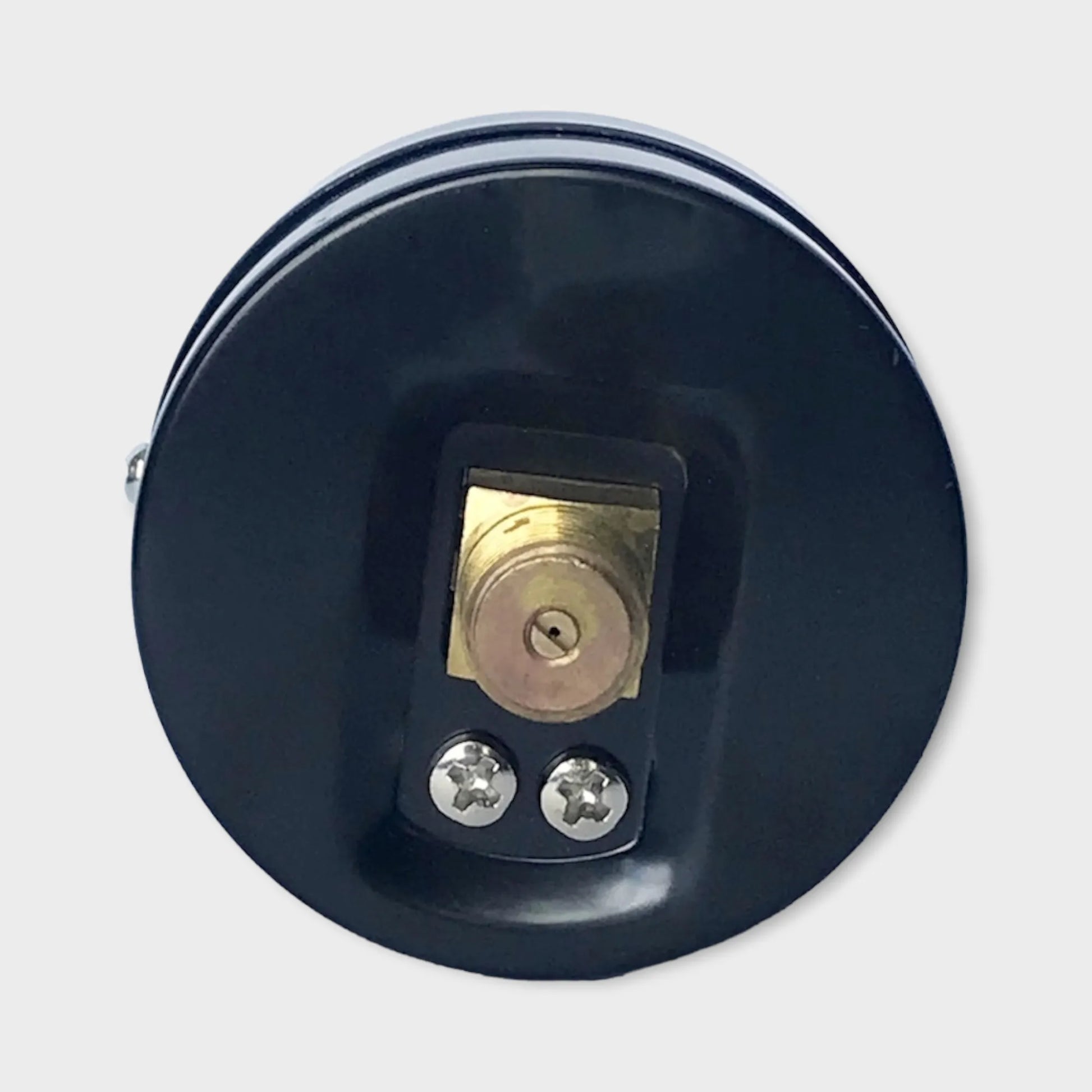

4. Mounting: Axial Mount - This means that the gauge is designed to be mounted with the pressure inlet on the back (axial) of the gauge. In axial mount gauges, the connection is on the back of the gauge, which allows for a straight-line connection to the hydraulic system.

This type of tube pressure gauge is suitable for hydraulic press applications where you need to monitor and control pressure. The 3.5 MPa range indicates that it's designed for systems with pressures up to this level. The 63mm dial size makes it easy to read the pressure value, and the 1/4 NPT connection is a common size for hydraulic systems.

Before installing the gauge, it's essential to ensure that the hydraulic system and gauge are compatible in terms of pressure range, connection type, and mounting style. Proper installation and calibration are crucial to accurate pressure measurement in hydraulic systems, and safety precautions should always be followed when working with hydraulic equipment.

Dial Size 63mm
Case material Black steel
Wetted parts Brass
Mount Center back
Connection 1/4 PT, NPT, G... M14*1.5
Liquid None
Custom options

Pressure range
Dial plate
Other process connection thread
Surface mounting flange
Mounting bracket

View full details
pressure vessels with vacuum pressure gauges on them


For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.


Heating and air-conditioning technology

Medical engineering

  • Special features

    Reliable and cost-effective

    Design per EN 837-1

    Nominal size 40, 50, 63, 80, 100 and 160

    Scale ranges up to 0 ... 400 bar

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
