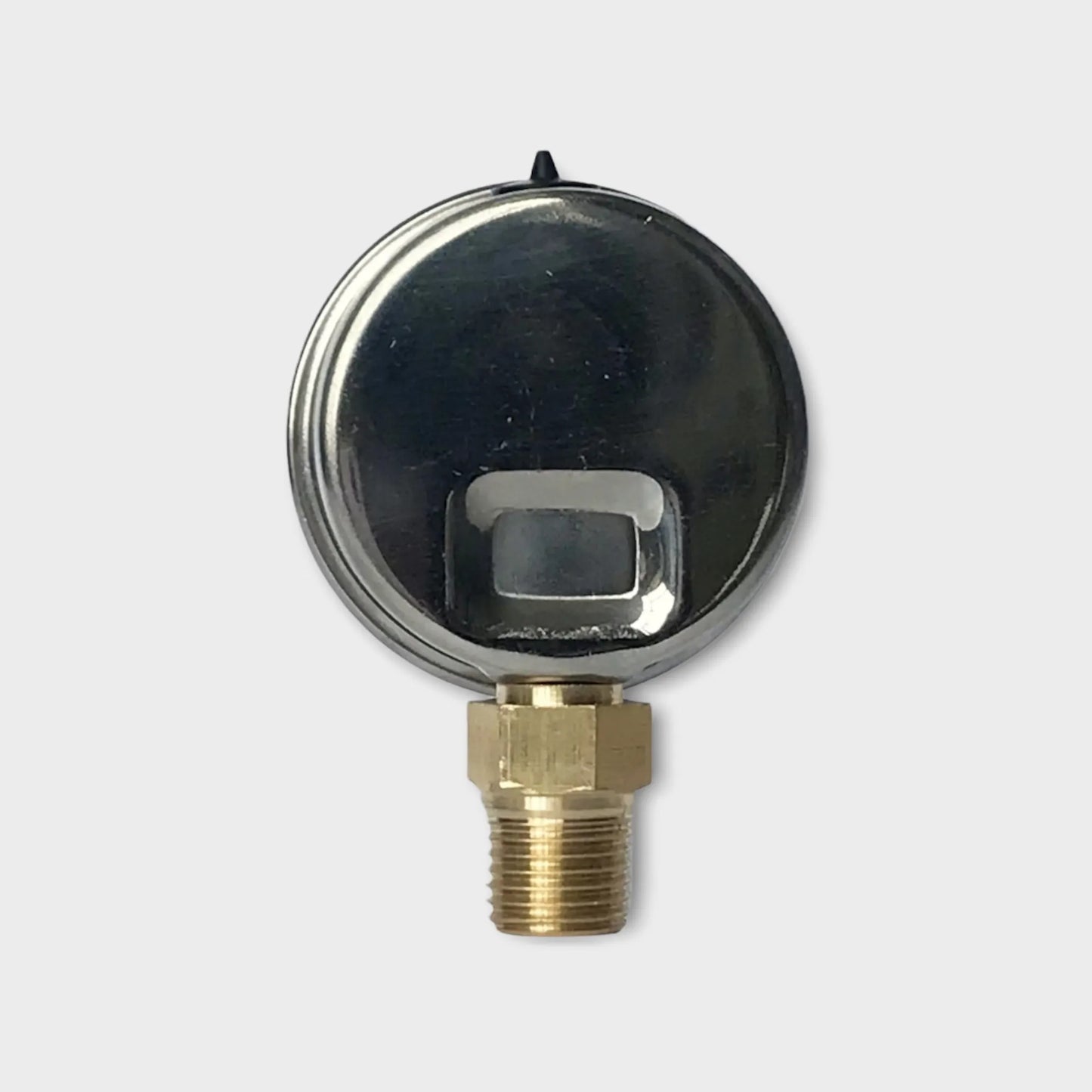

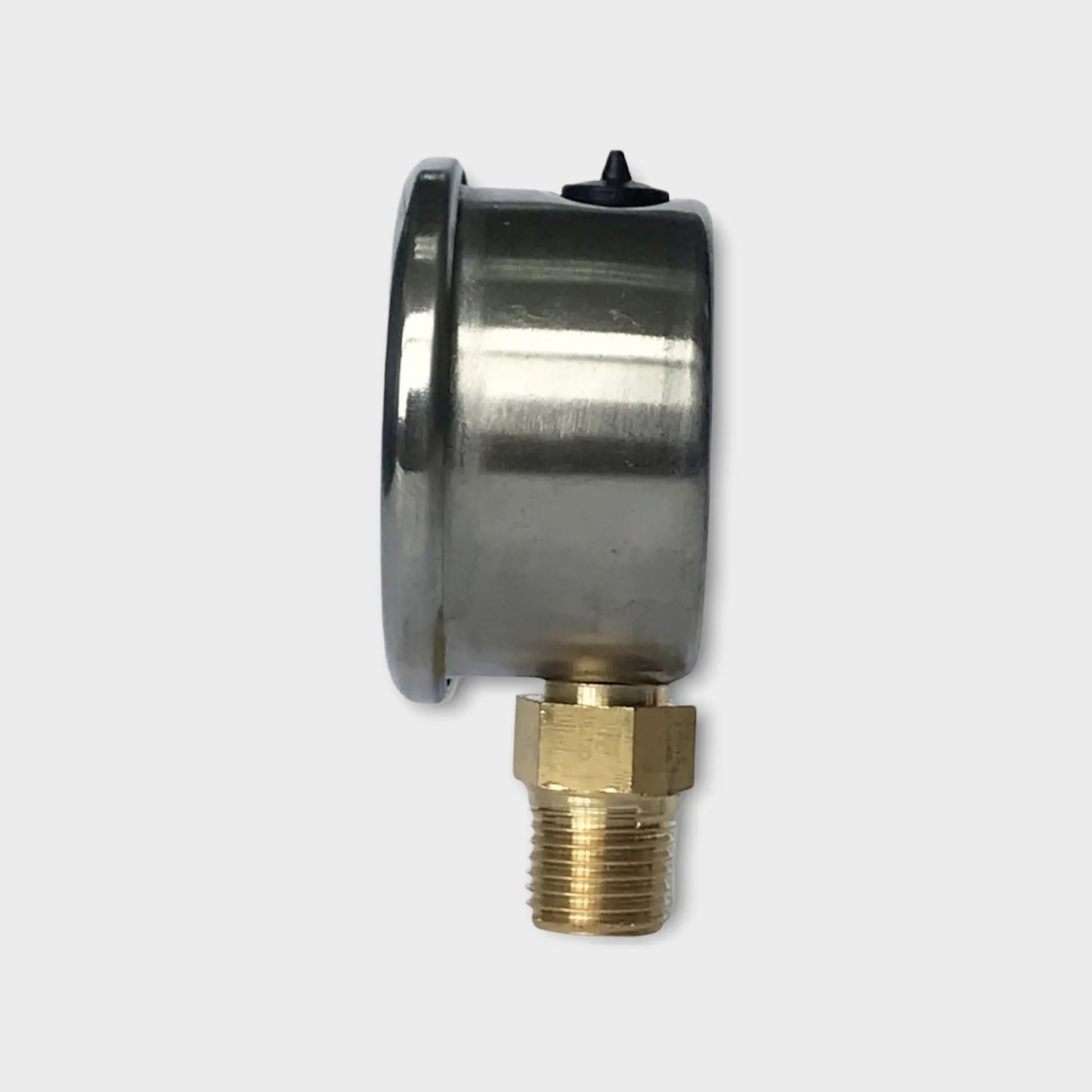

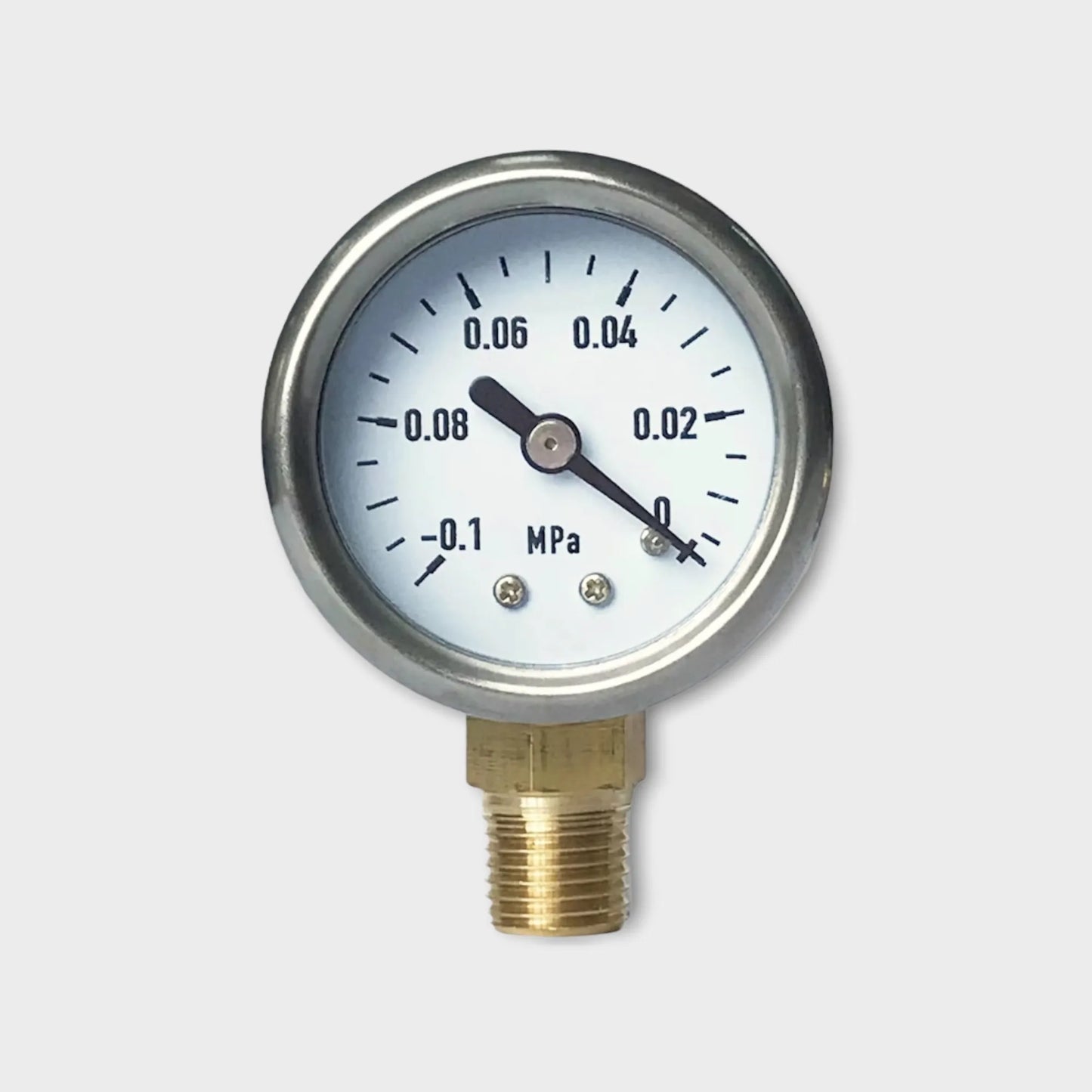

Vacuum Manometer Gauge Radial Mount 40mm Dial

Vacuum Manometer Gauge Radial Mount 40mm Dial

Nominal Size
Pressure Range

Introducing Our Radial Mount Vacuum Manometer Gauge with a 40mm Dial:


When it comes to accurate vacuum pressure measurement, our Vacuum Manometer Gauge with a 40mm dial and a convenient radial mount is the perfect choice. Designed for precision and ease of installation, this gauge is a reliable solution for monitoring vacuum pressure in various applications.


Key Features:


1. Accurate Vacuum Pressure Measurement: This vacuum manometer gauge is expertly calibrated to provide accurate vacuum pressure readings, making it an essential tool for maintaining optimal vacuum systems.


2. Compact 40mm Dial: The gauge features a compact 40mm dial, which provides clear and easy-to-read pressure values, ensuring that you can monitor your vacuum pressure with ease.




- Pressure Range: Vacuum Pressure (Specify the range, e.g., -1 to 0 bar or inches of mercury)

- Mounting: Radial Mount

- Dial Diameter: 40mm

- Connection: Back connection

- Material: SS case and copper alloy wetted parts

- Accuracy: 2.5%

- Application: Process industry




- Laboratory Equipment

- Scientific Instruments

- Industrial Vacuum Systems

- HVAC Systems

- Process Control

- And More


Elevate your vacuum pressure monitoring with our Vacuum Manometer Gauge, featuring a compact 40mm dial and radial mount. Whether you're in a laboratory, industrial setting, or HVAC application, this gauge is the dependable choice for precise vacuum pressure measurement.


Invest in precision, reliability, and ease of use. Contact us today to order your vacuum manometer gauge and enhance your vacuum pressure monitoring capabilities.

Dial Size 40mm
Case material Stainless steel
Wetted parts Brass
Mount Radial
Connection 1/8 PT, NPT, G... M10*1
Custom options

Other pressure connections
Custom dial layout
Surface mounting flange
Mounting bracket
Other pressure scales available. bar, kPa, MPa, kg/cm² and dual scales

View full details
pressure vessels with vacuum pressure gauges on them


Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.

  • Special features

    Reliable and cost-effective

    Design per EN 837-1

    Nominal size 40, 50, 63, 80, 100 and 160

  • Payment & Shipping Terms

    MOQ: 100 Pieces

    Price: To be confirmed

    Delivery Time: 3~5 weeks

    Payment Term: T/T
